Without Intelligent Key





POWER DOOR LOCK SYSTEM

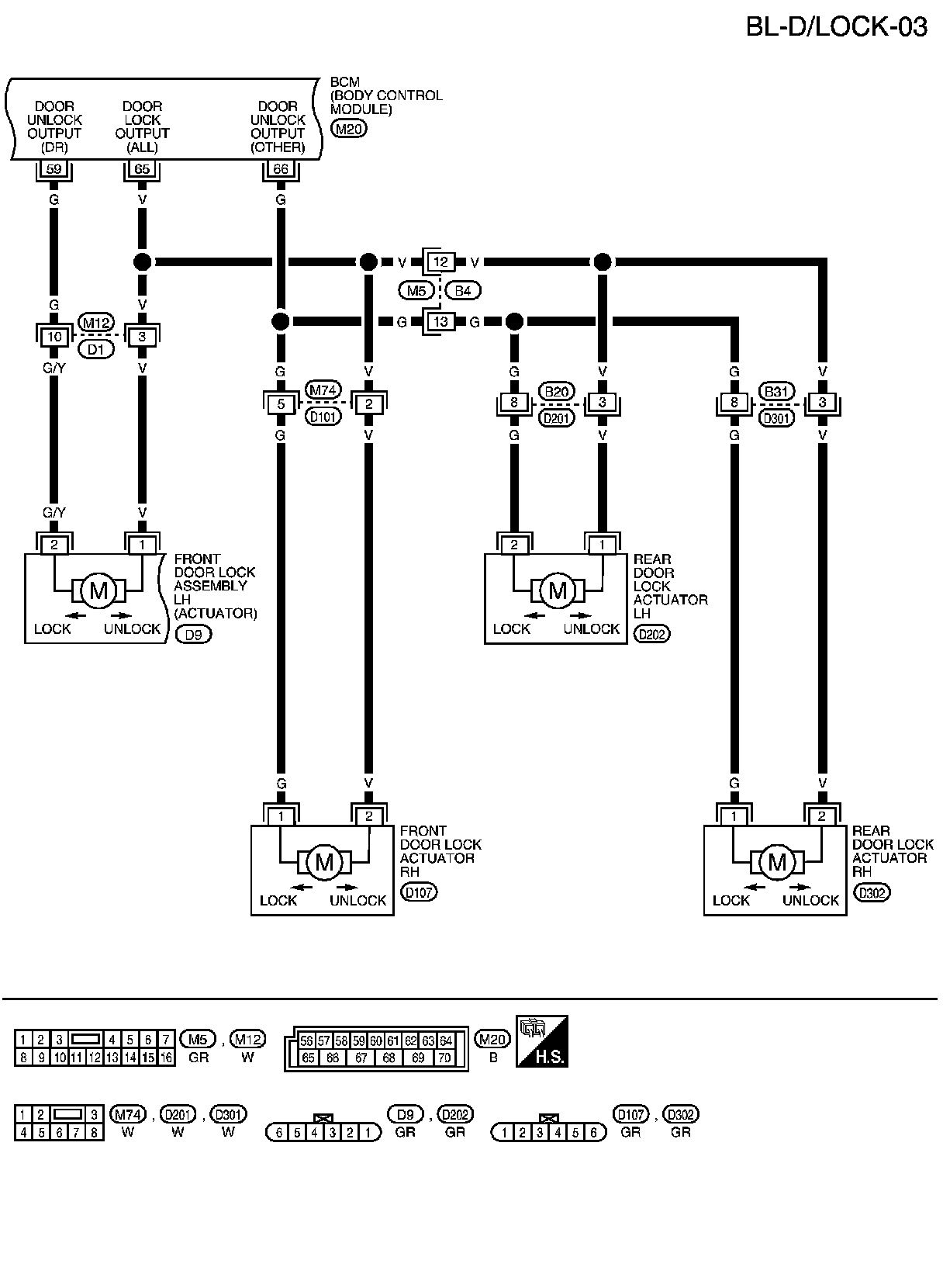

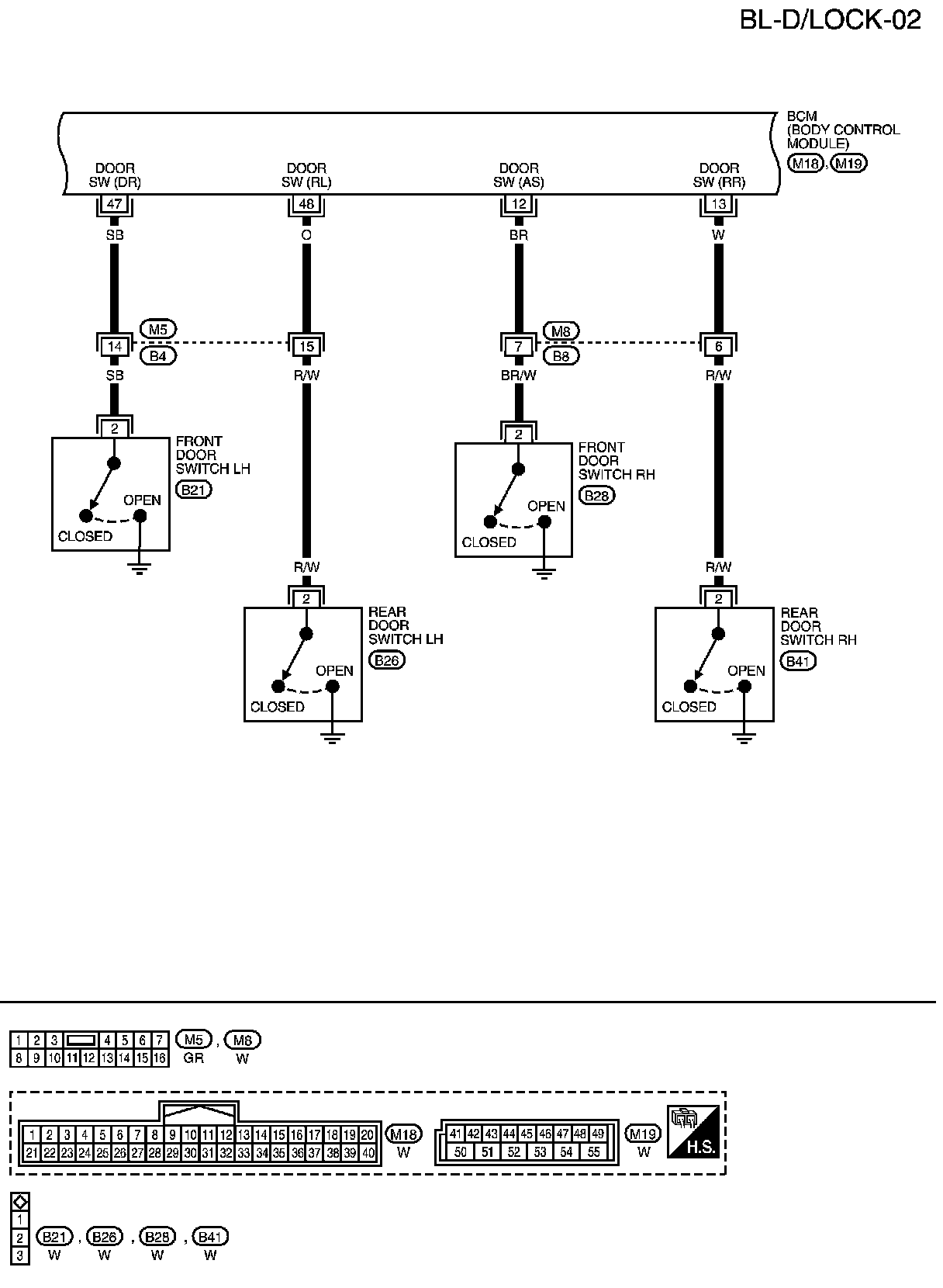

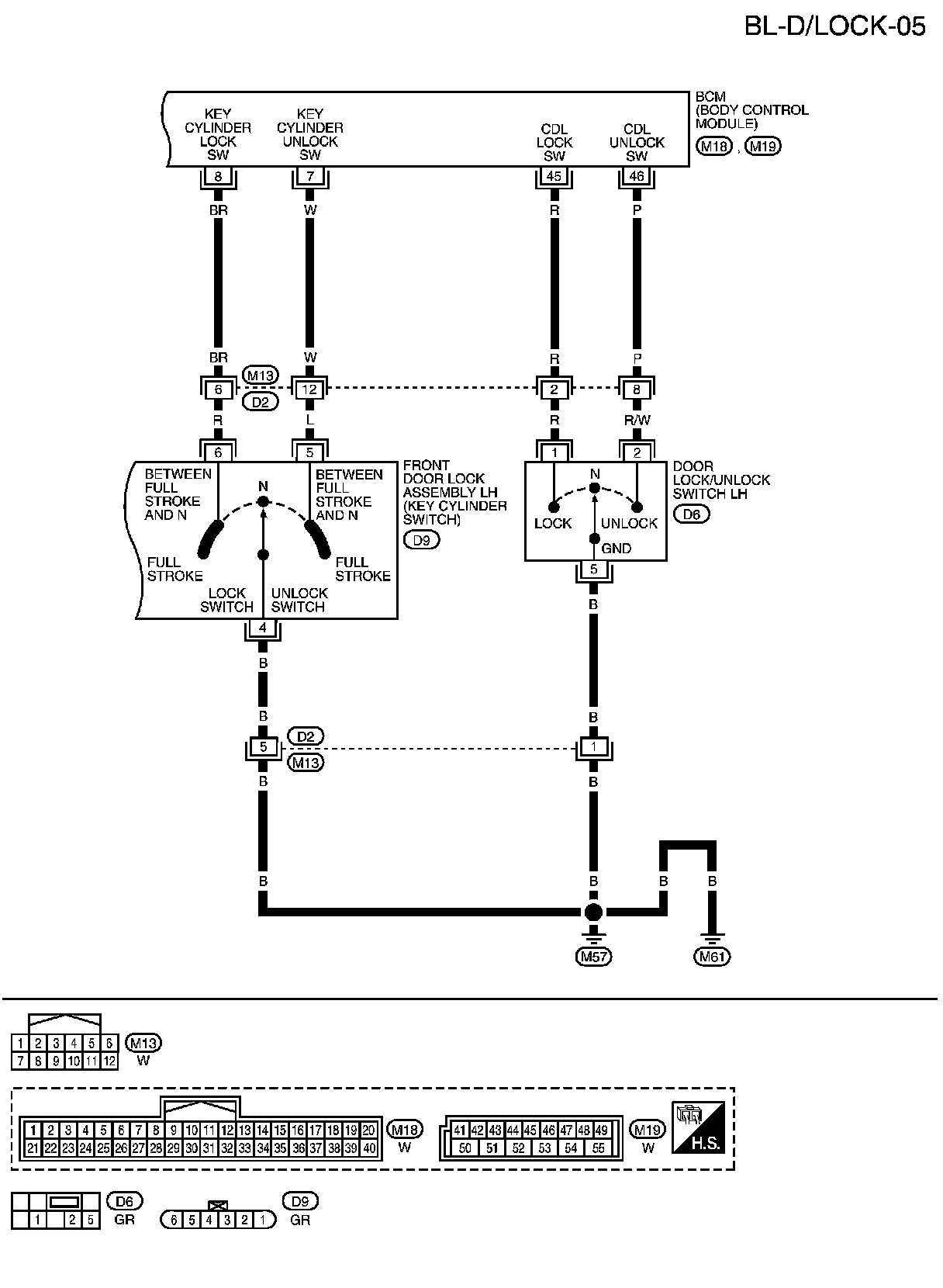

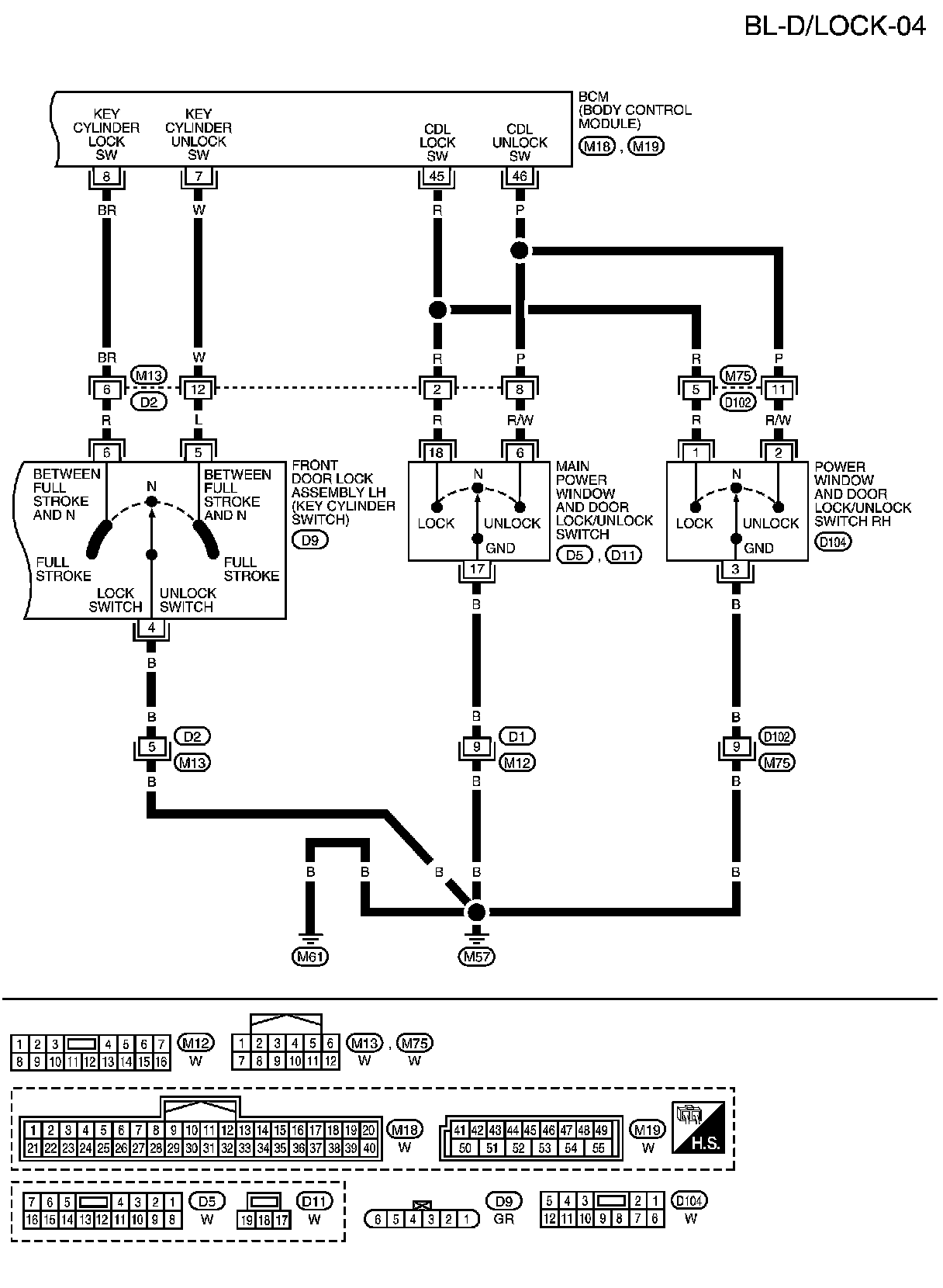

Wiring Diagram - D/LOCK - (Without Intelligent Key)
















With Power Windows





Without Power Windows
