Intelligent Key Battery Replacement

INTELLIGENT KEY SYSTEM

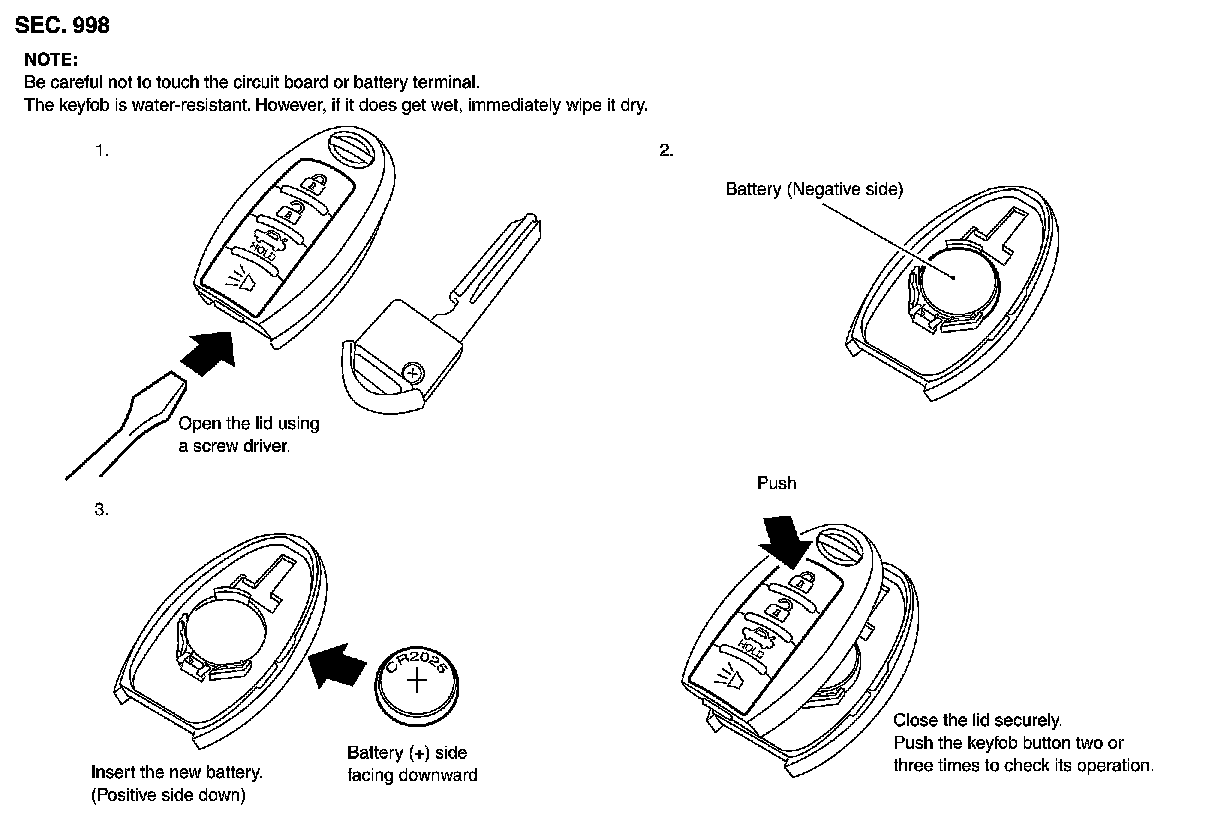

Intelligent Key Battery Replacement







INTELLIGENT KEY BATTERY INSPECTION
1. Remove battery to measure voltage across battery positive (+) and negative (-) terminals.





2. Check by connecting a resistance (approximately 300Ohm(s)) so that the current value becomes about 10 mA.






NOTE:
Key fob does not function if battery is not installed correctly.
