Electrical Diagrams





TRUNK LID OPENER


Wiring Diagram - TLID -

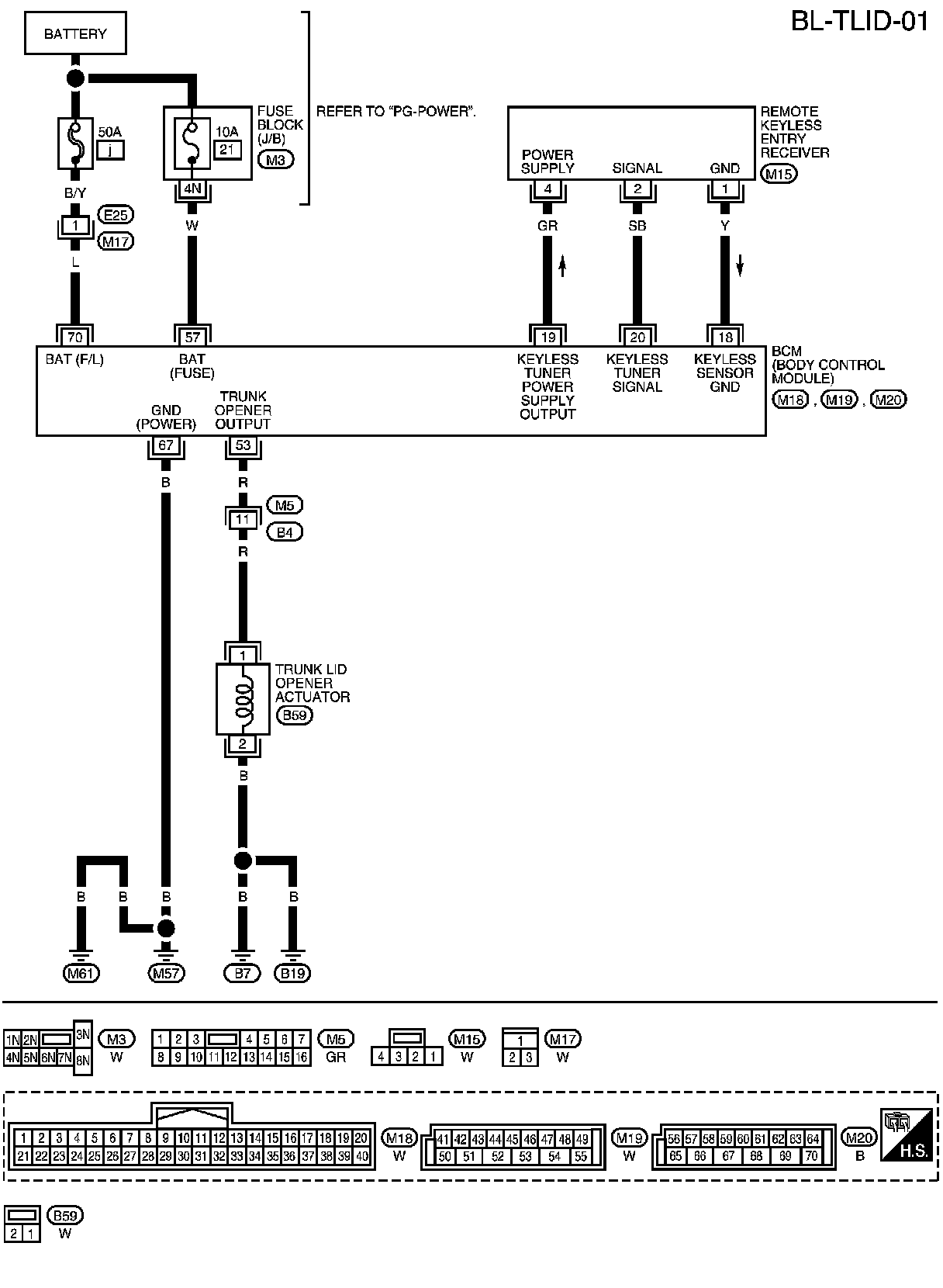

WITHOUT INTELLIGENT KEY

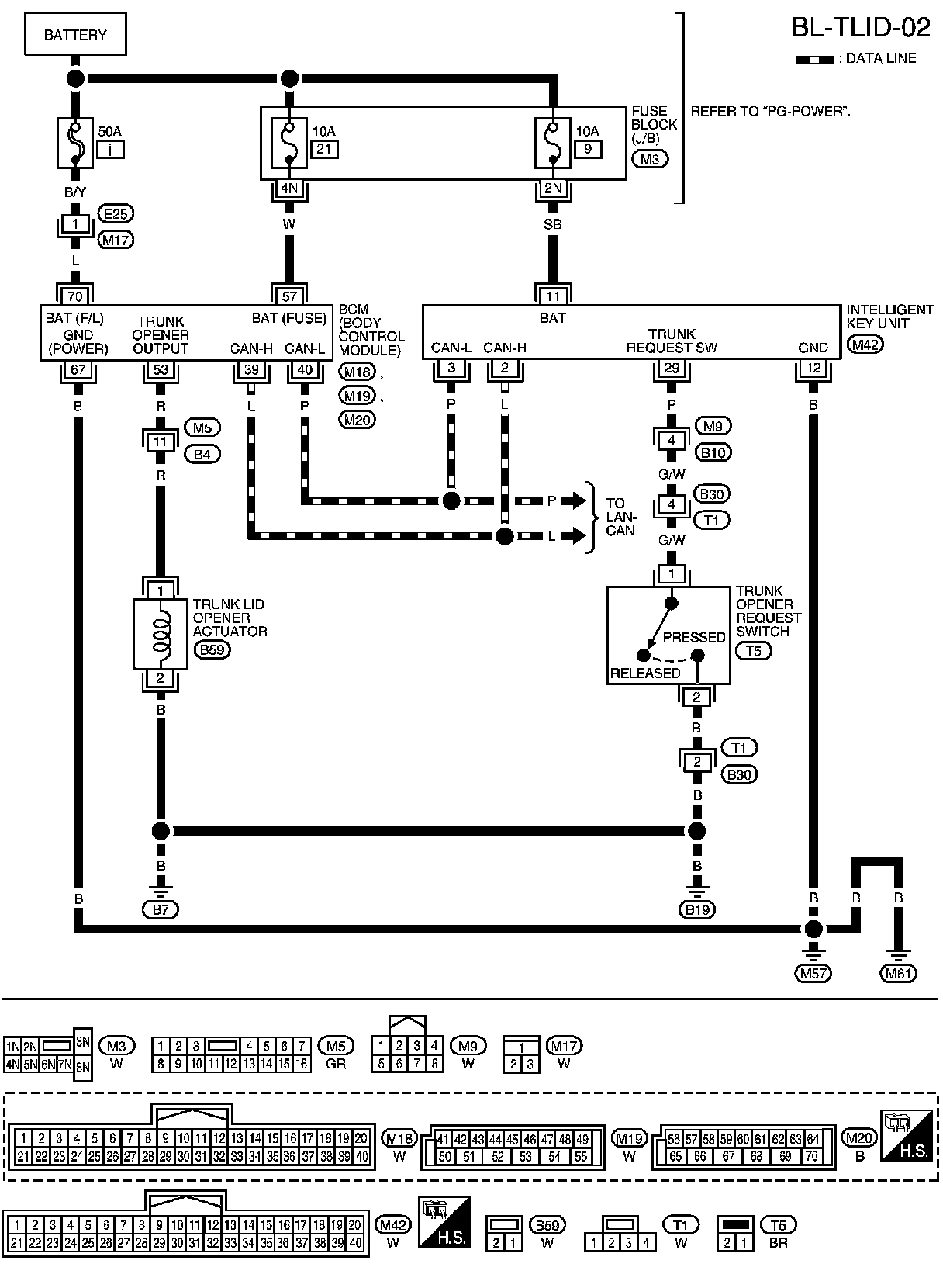

WITH INTELLIGENT KEY
