Terminal And Reference Value
>>
Audio Amplifier (With Rockford Fosgate) Audio With Navigation
Audio Amplifier (With Rockford Fosgate) Audio With Navigation
AUDIO

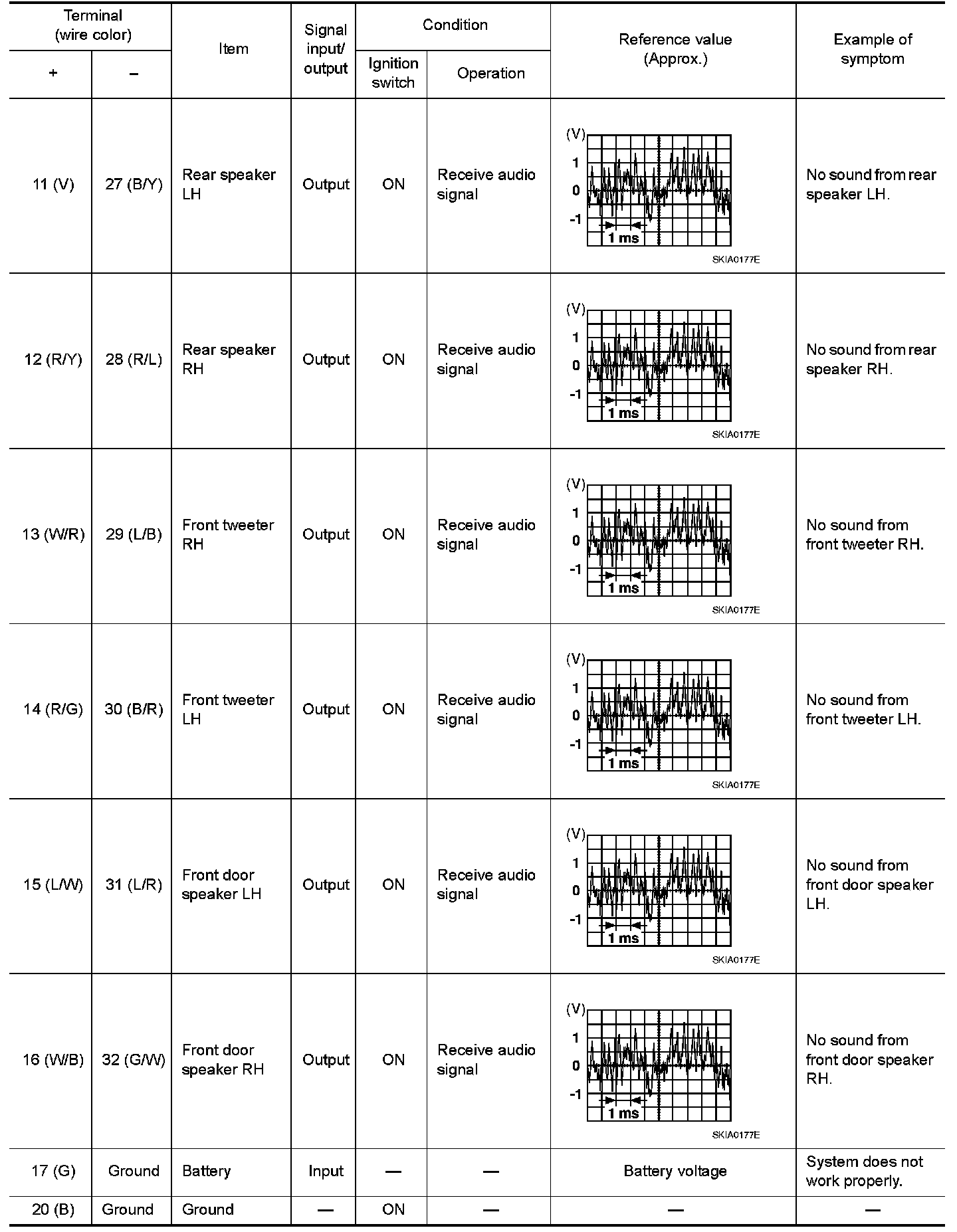

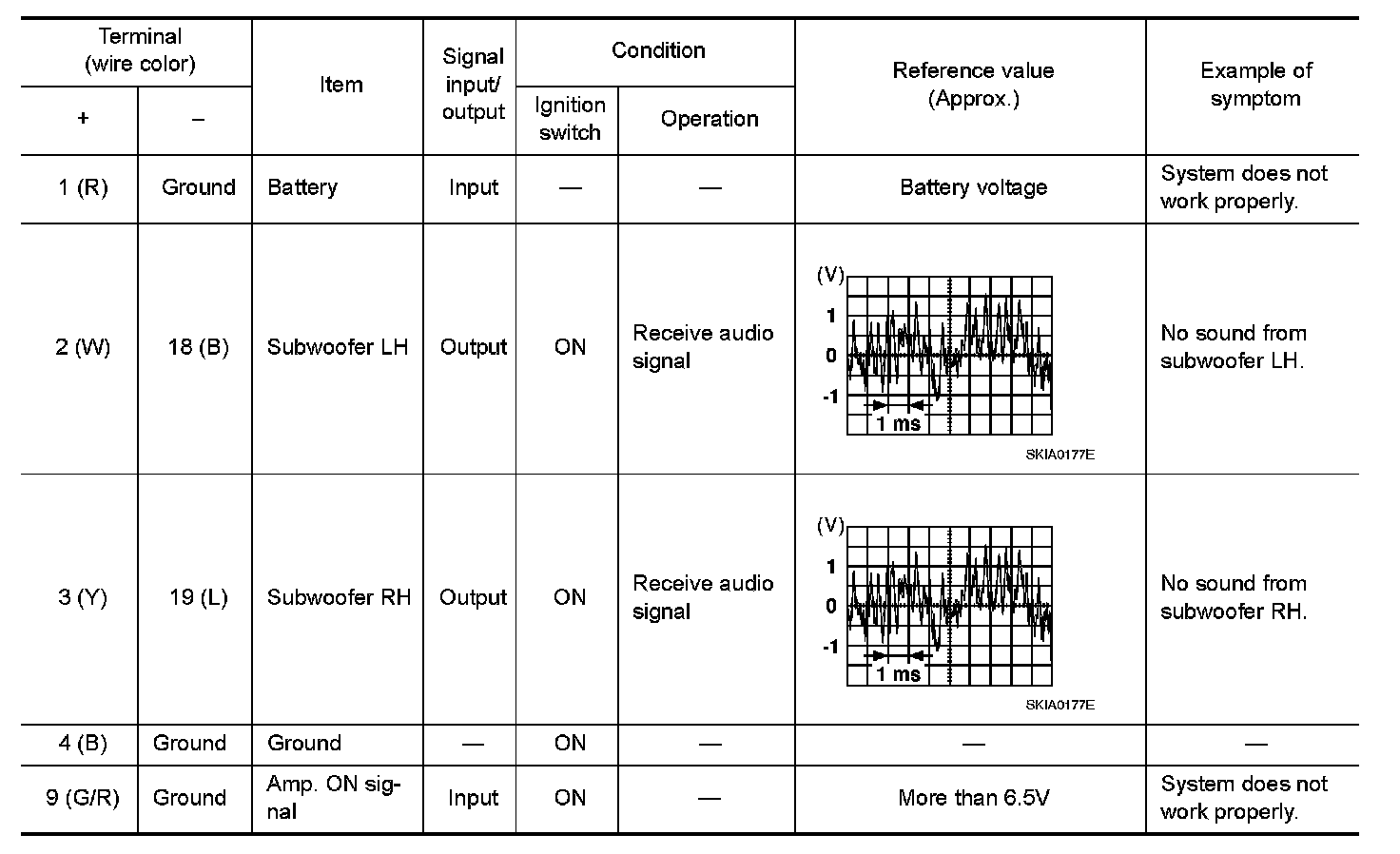

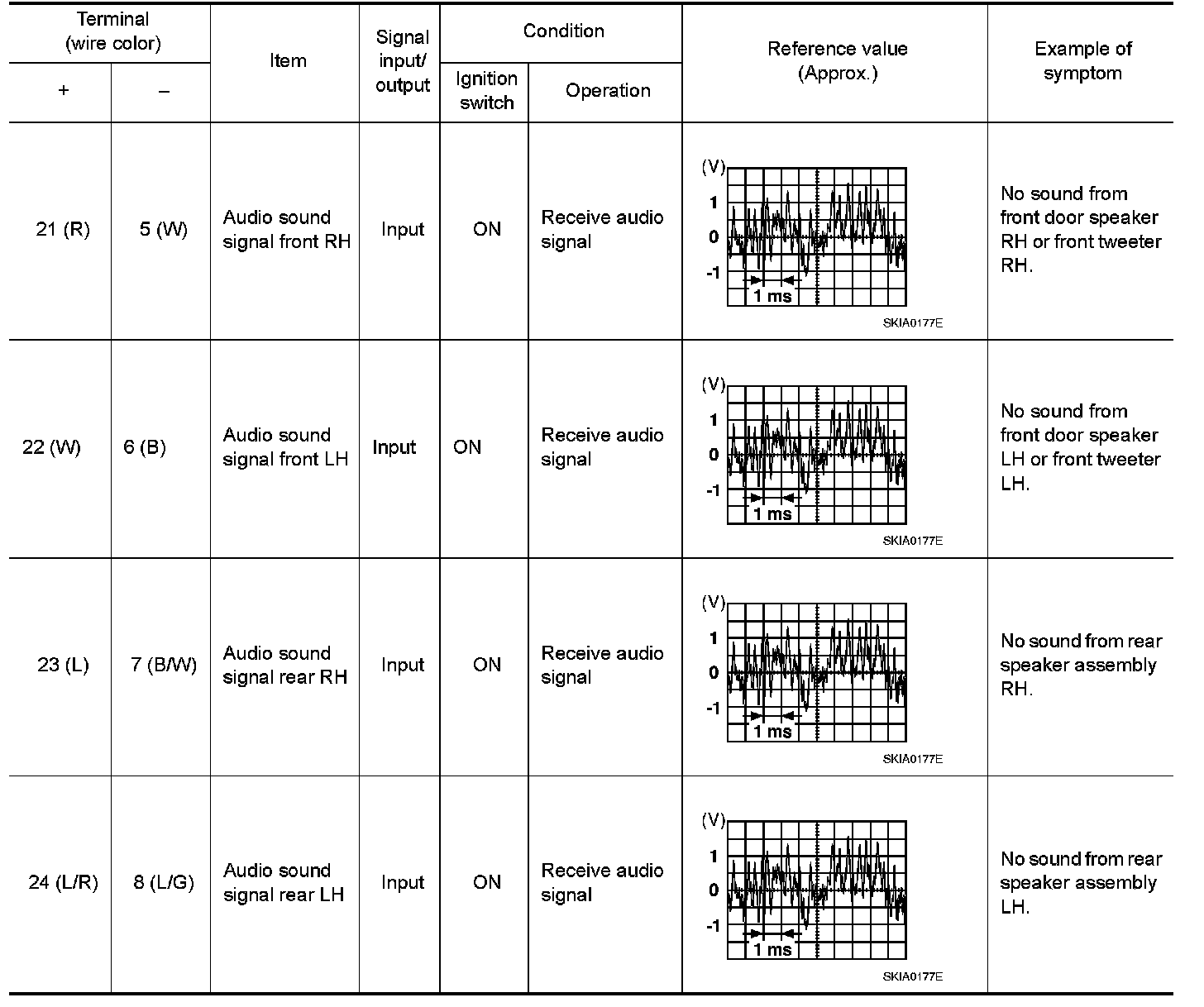

Terminal and Reference Value for Audio Amplifier (With Rockford Fosgate)
