AV Control Unit (Premium System with Rockford Fosgate) Audio Without Navigation





AUDIO

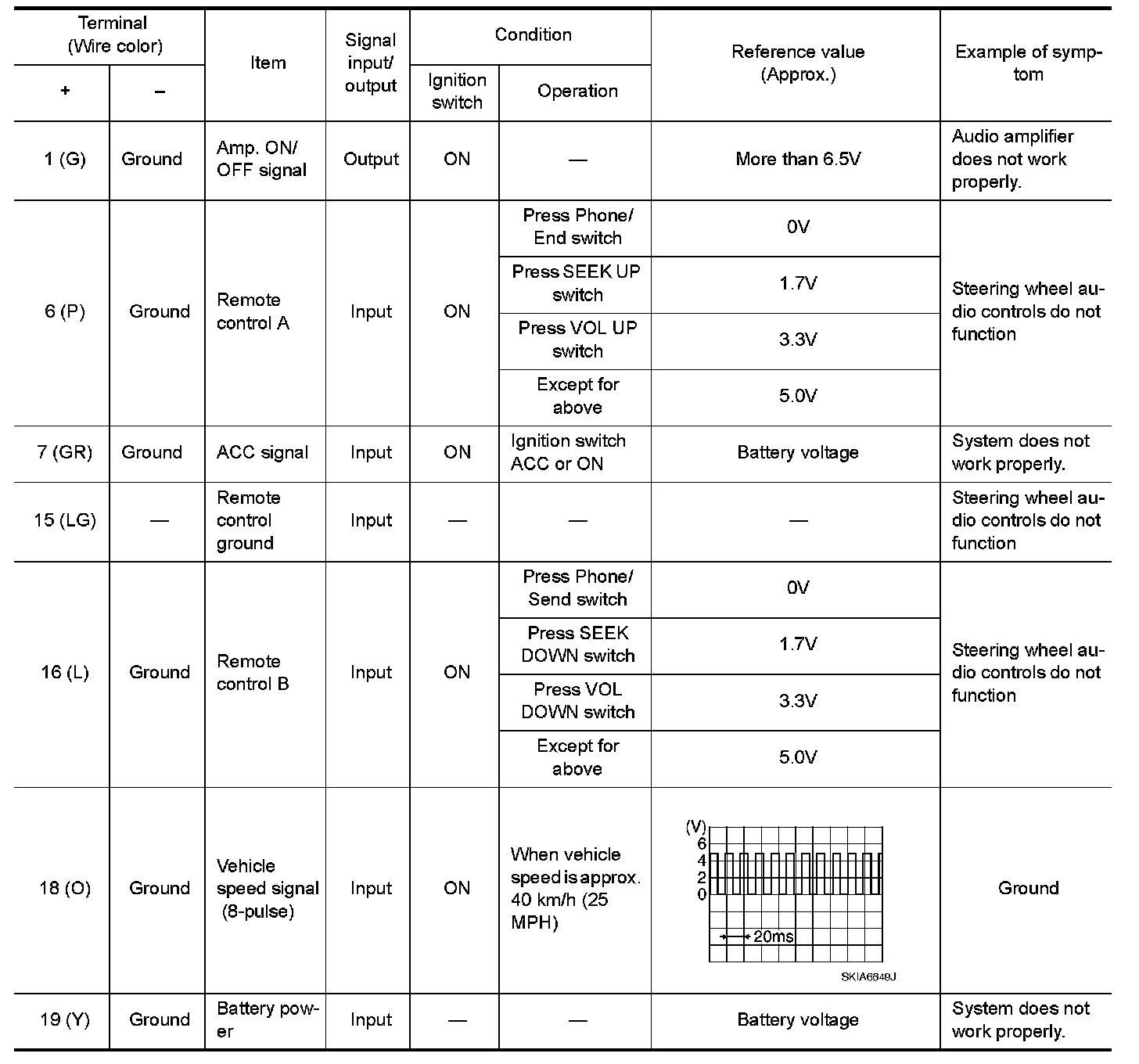

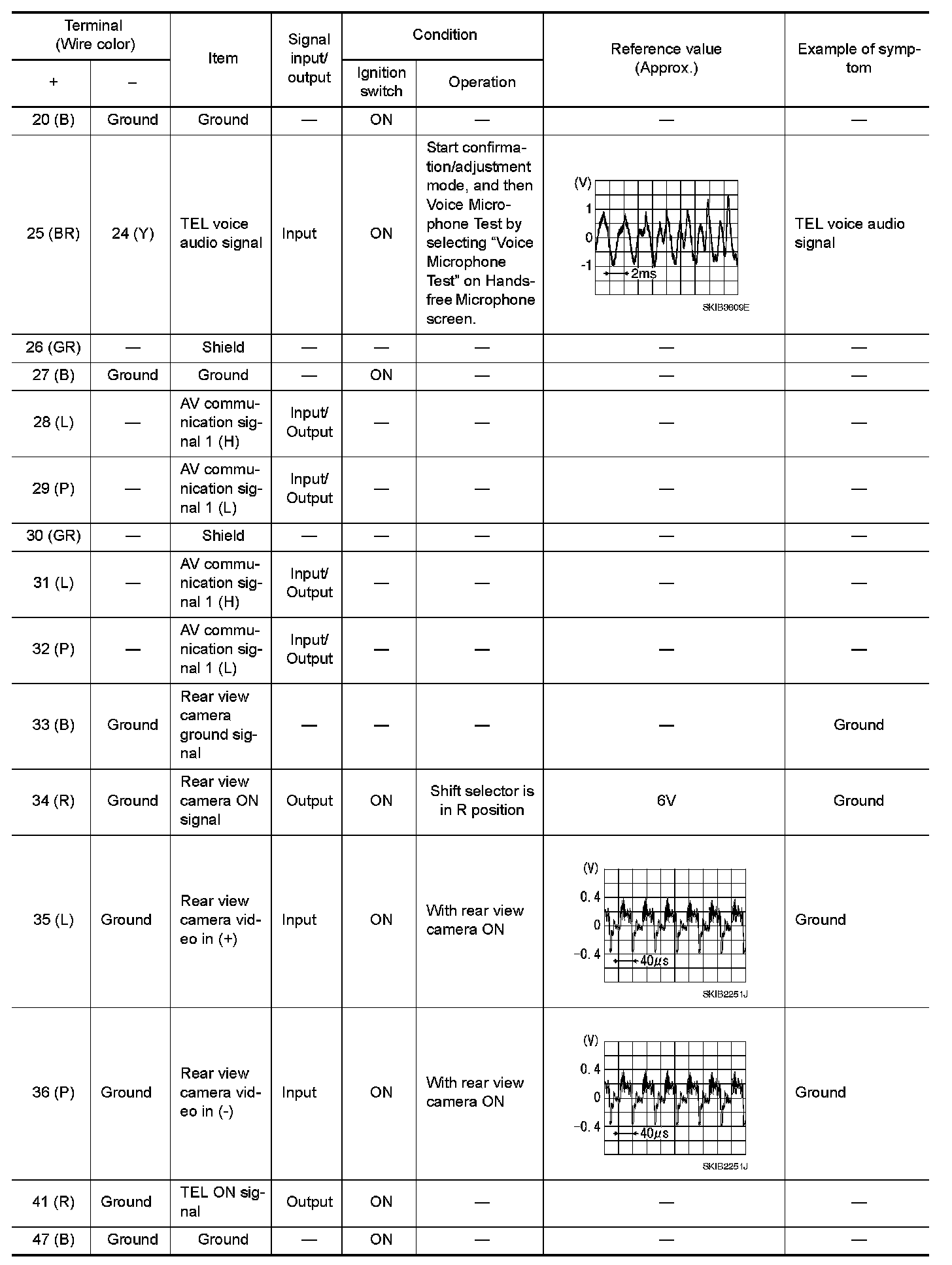

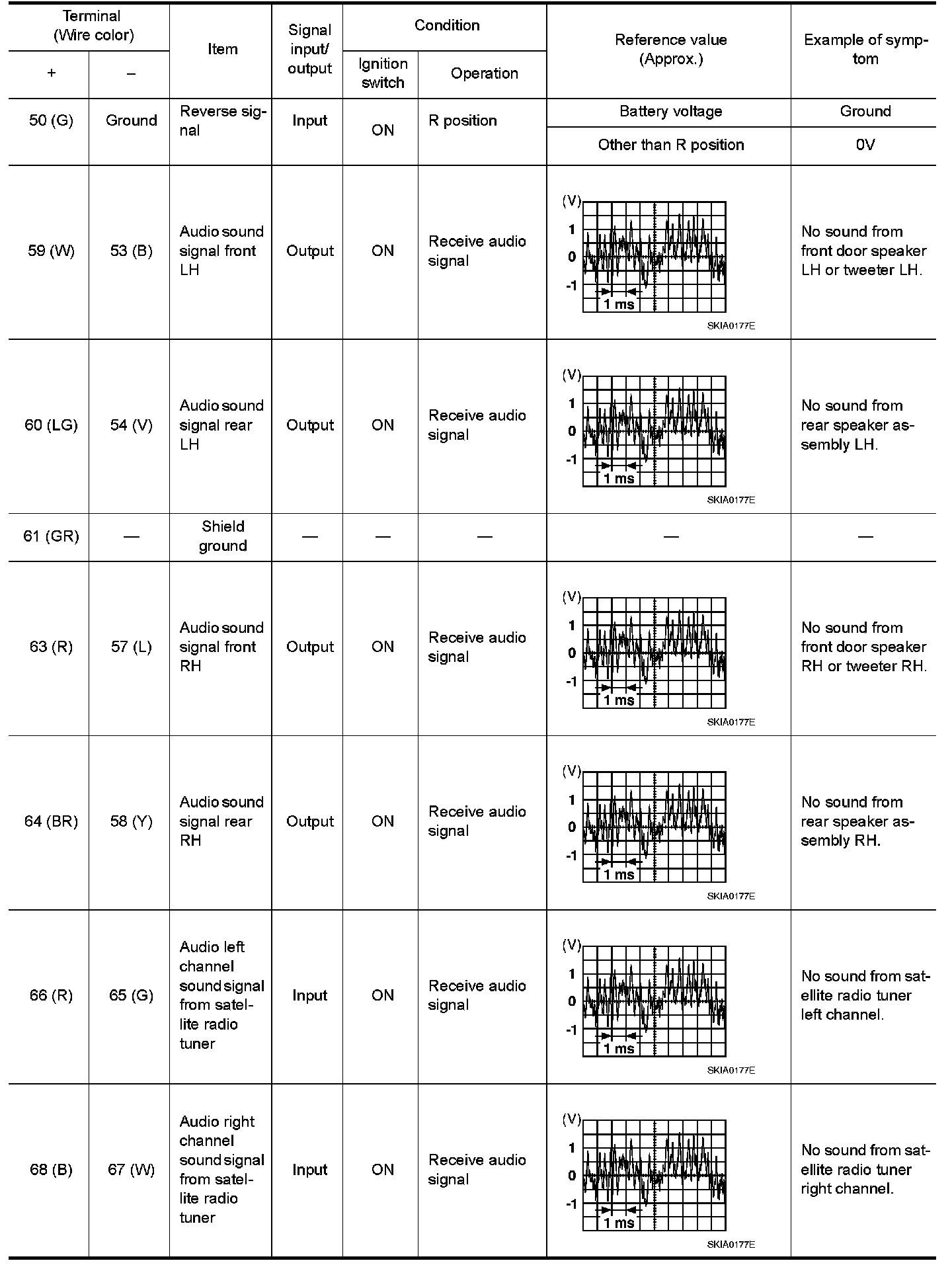

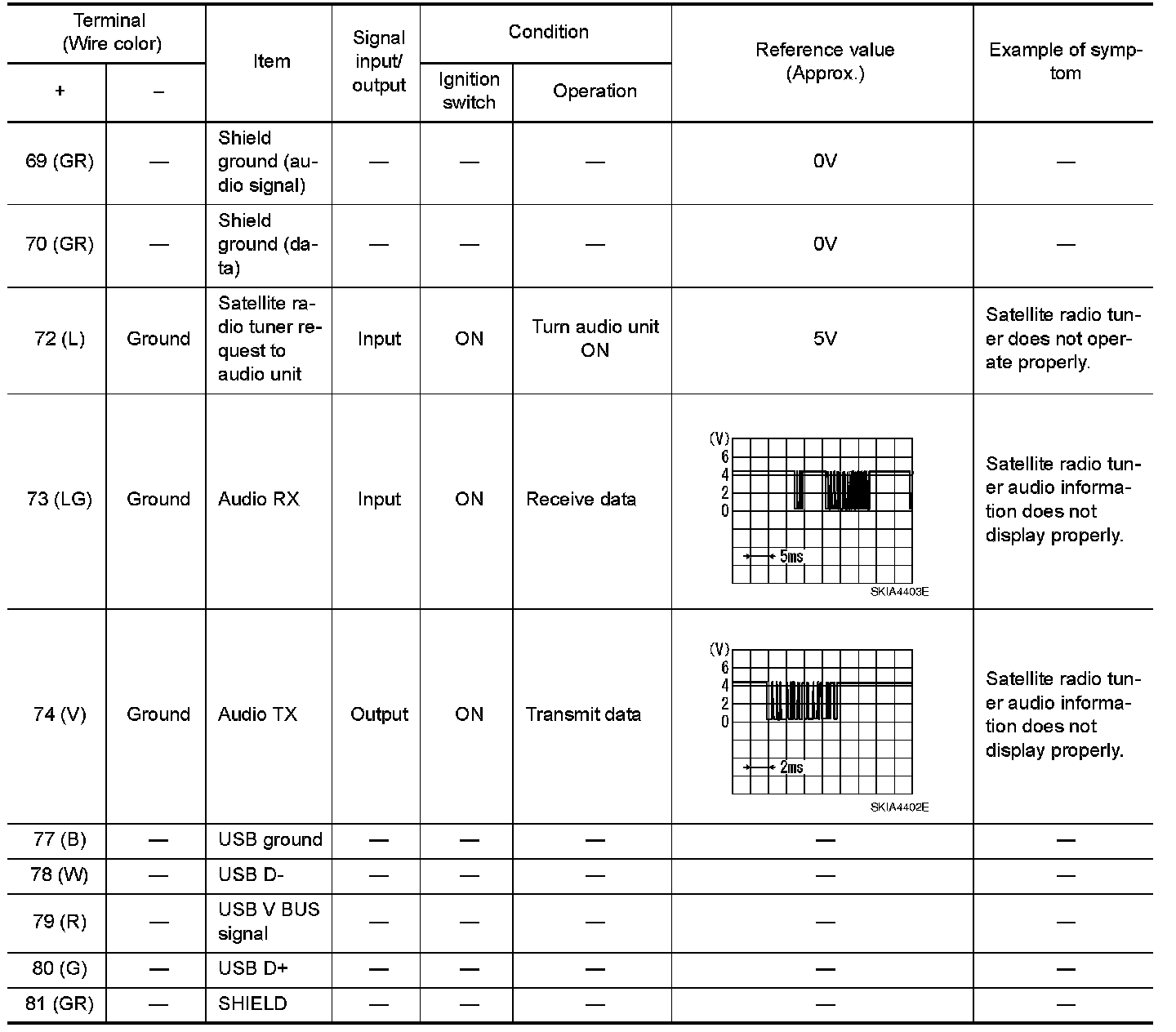

Terminal and Reference Value for AV Control Unit (Premium System with Rockford Fosgate)
