Preliminary Check

VEHICLE SECURITY (THEFT WARNING) SYSTEM





Preliminary Check
1.CHECK BCM CONFIGURATION
Confirm BCM configuration for "THEFT ALARM" is set to "WITH". Programming and Relearning.
OK or NG
OK - Proceed with the preliminary check to verify system operation.
NG - Change BCM configuration for "THEFT ALARM" to "WITH". Programming and Relearning.

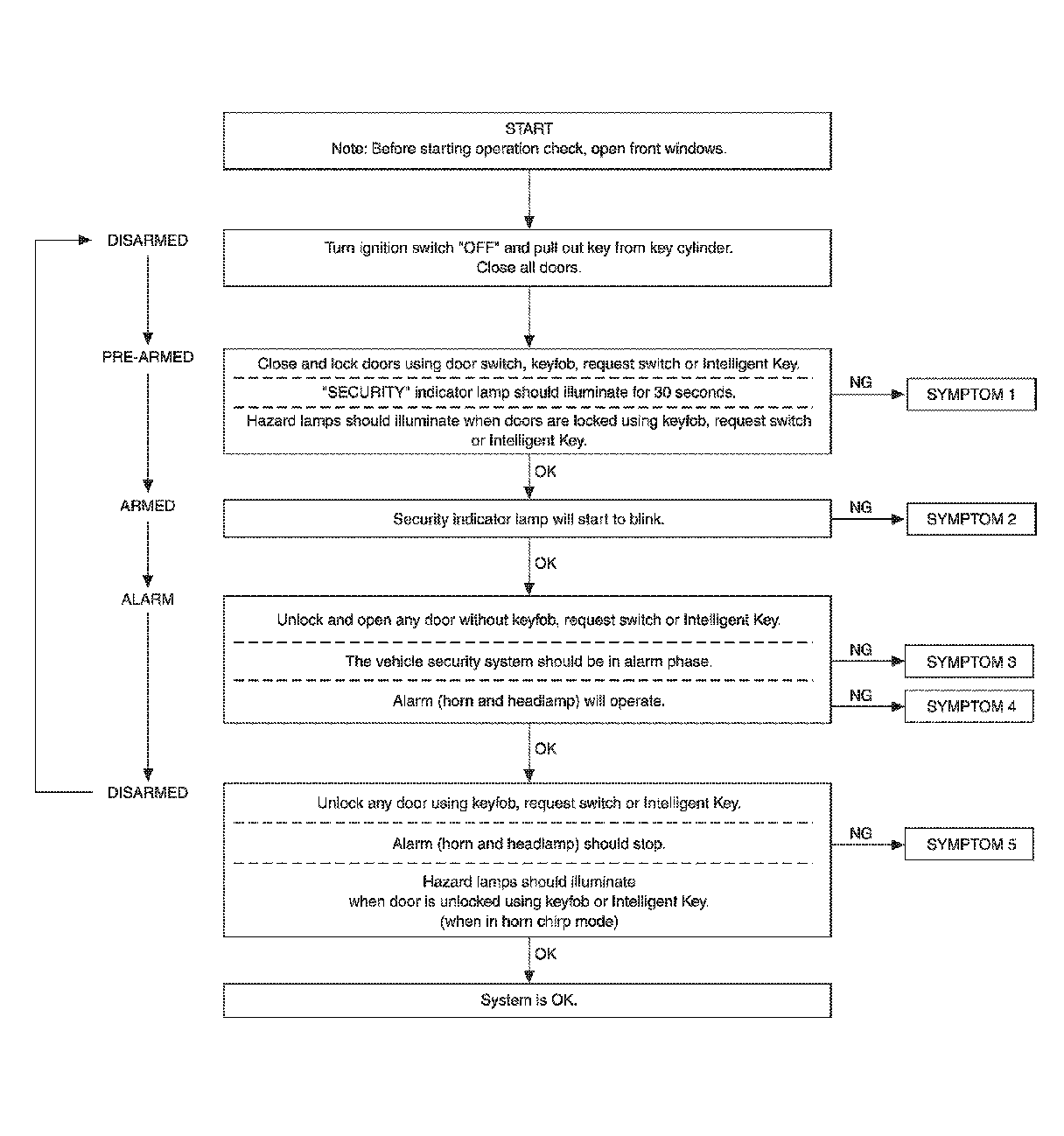

The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.





After performing preliminary check, go to symptom chart. SEE Symptom Chart.
