Vehicle Security (Theft Warning) System
VEHICLE SECURITY (THEFT WARNING) SYSTEM

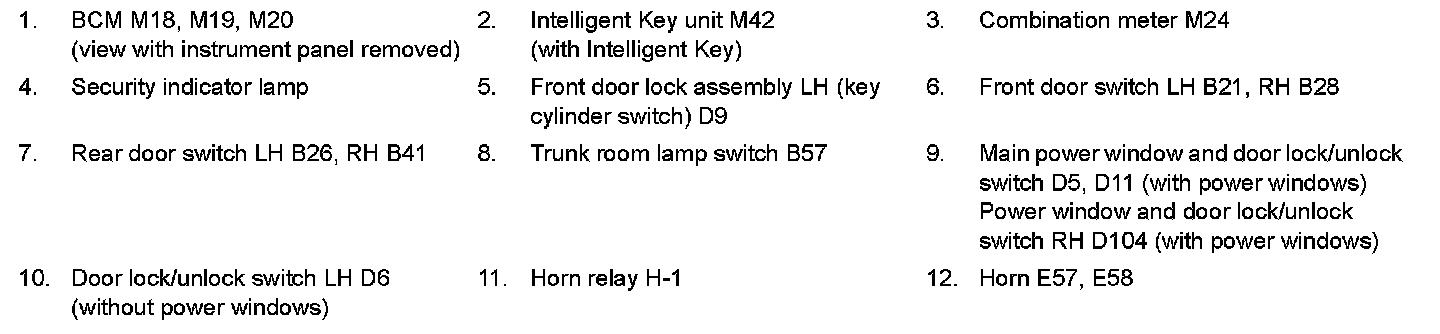

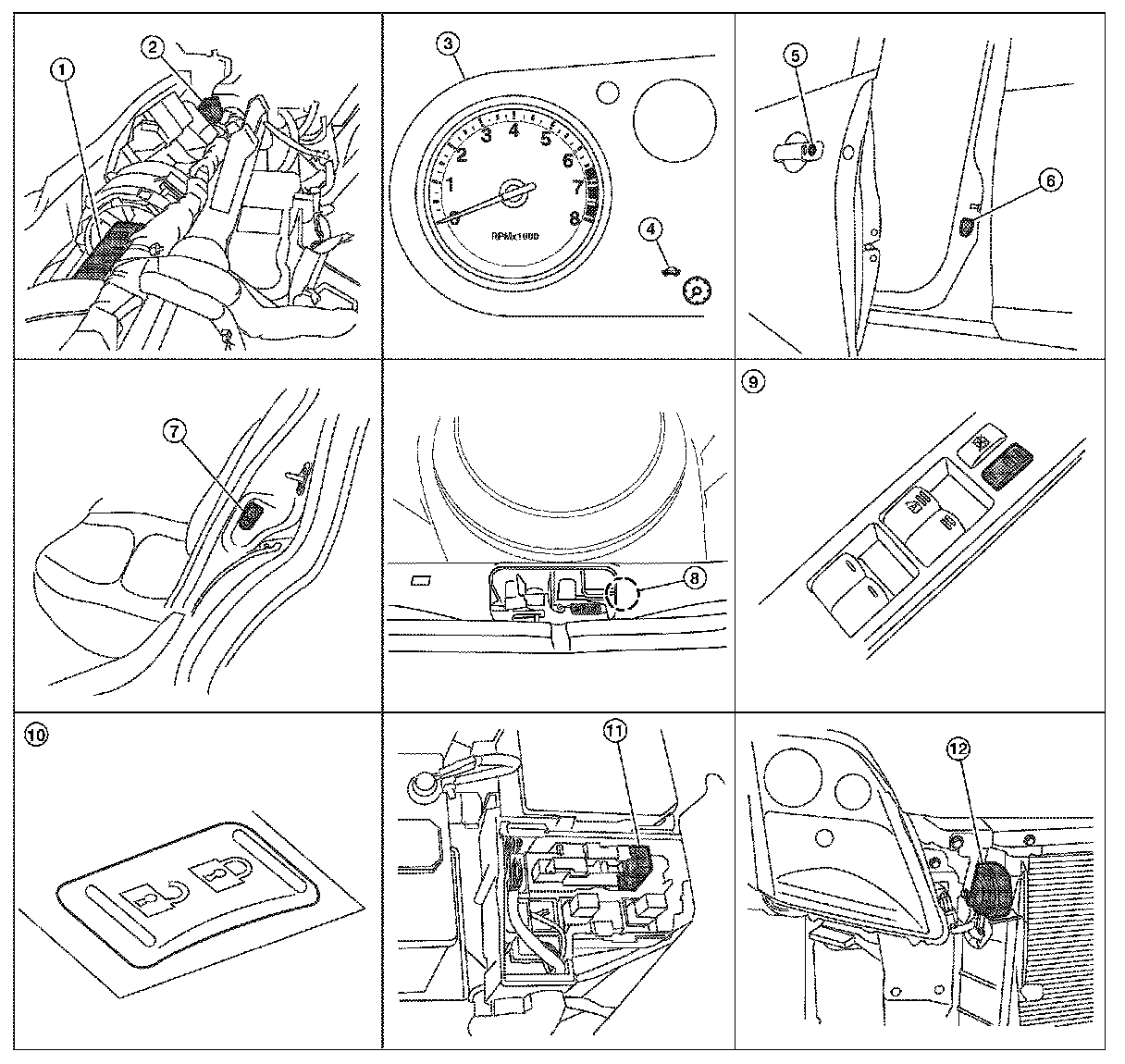

Component Parts and Harness Connector Location
