Nissan-Datsun
>>
2011
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Description and Operation
>>
Vehicle Security (Theft Warning) System
>>
Schematic
Schematic

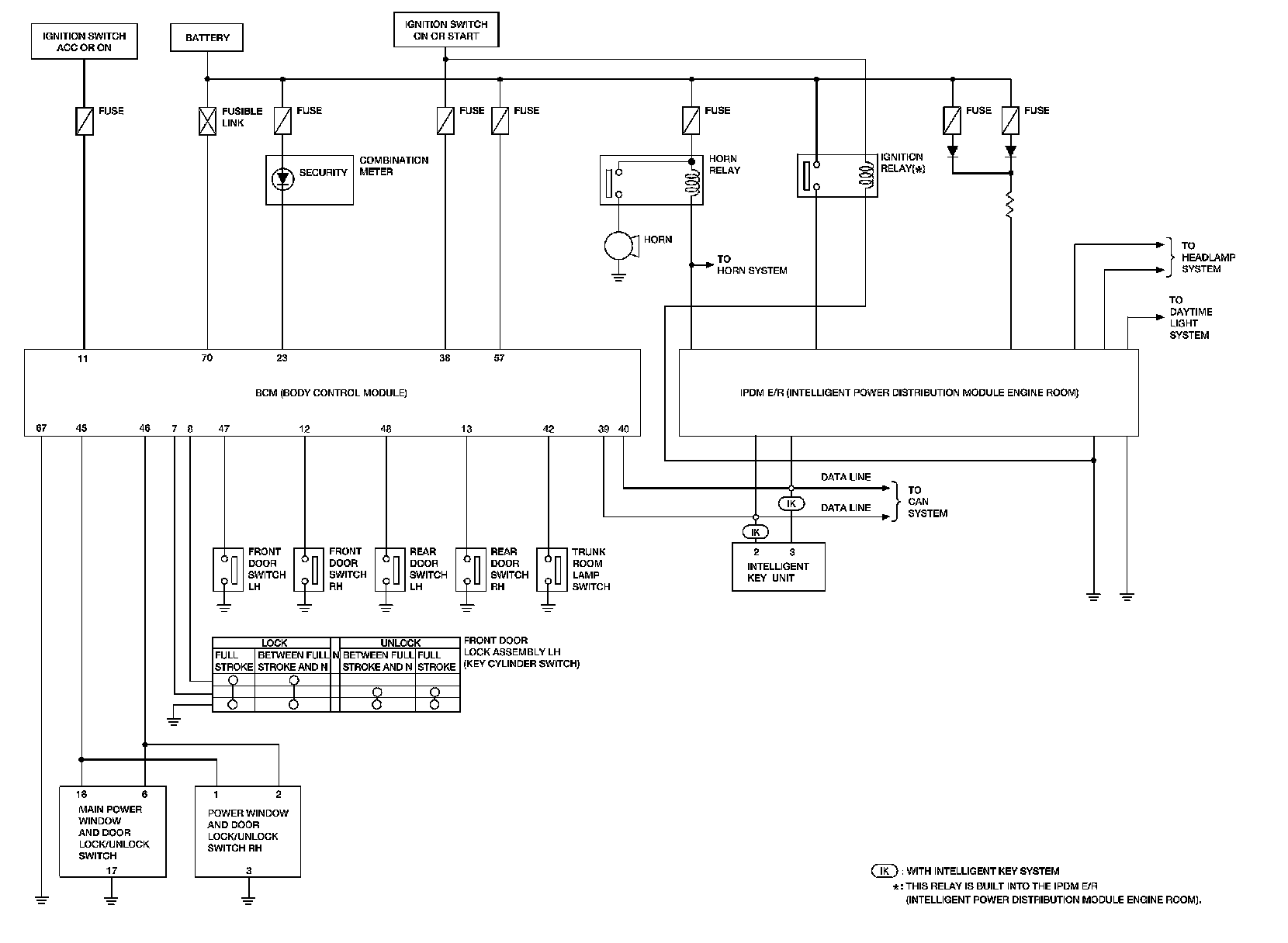

VEHICLE SECURITY (THEFT WARNING) SYSTEM
Schematic
