Front Wiper Arm

FRONT WIPER ARM

Adjustment

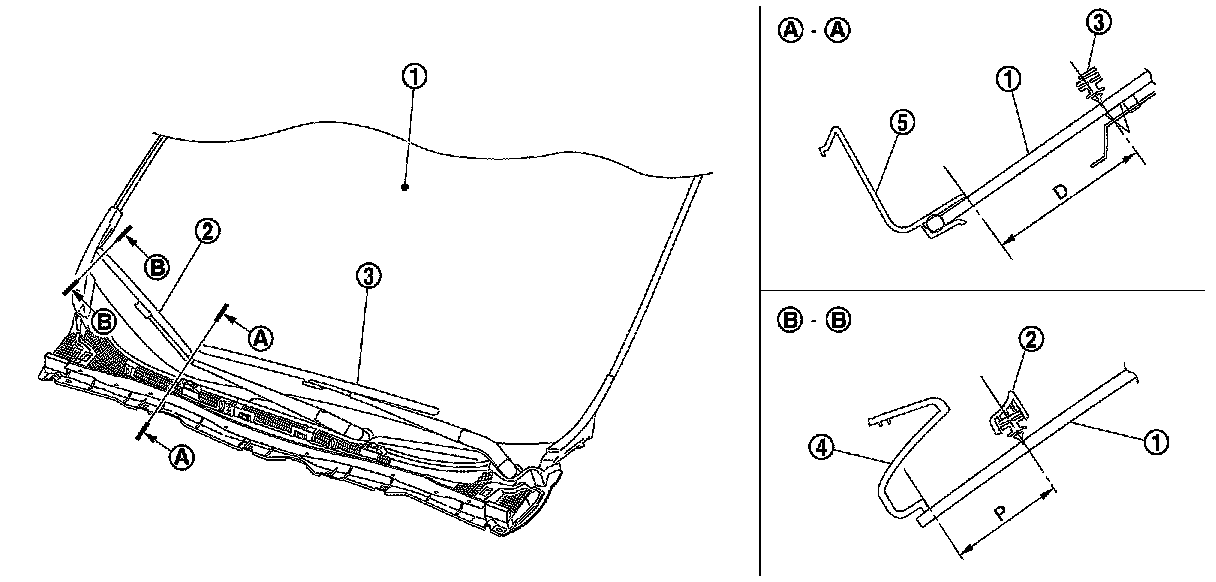

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover/ front fender protector and the top of wiper blade center










Standard clearance
D: 86.2�7.5 mm (3.394 � 0.295 in)


P: 48.5�7.5 mm (1.909 � 0.295 in)
