Removal And Installation

FRONT WASHER NOZZLE AND TUBE

Removal and Installation


REMOVAL

1.Fully open hood assembly.
2.Remove front washer nozzle.

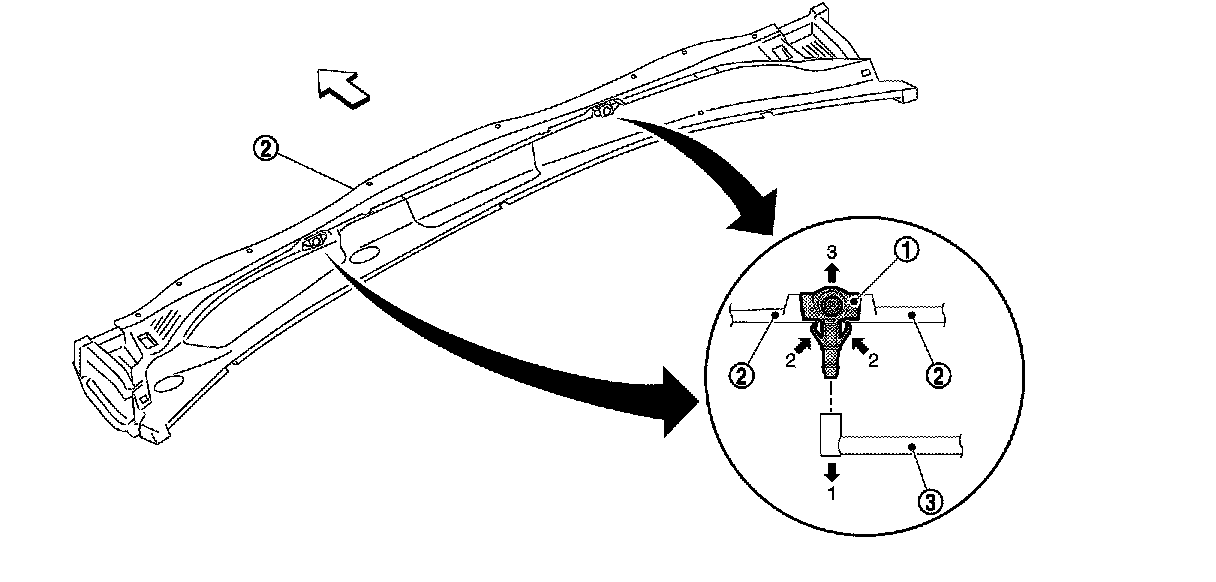

a.Remove cowl top cover (2). Refer to "Removal and Installation" Removal And Installation.
b.Remove front washer tube (3) from front washer nozzle (1).
c.Press front washer nozzle fixing pawls toward the direction shown by the arrows 2 and pull up to remove.

INSTALLATION

1.Install front washer nozzle into the cowl top cover.

CAUTION:
The spray positions differ, check that left and right nozzles are installed correctly.
2.Connect front washer tube to the front washer nozzle.
3.Adjust the front washer nozzle spray position. Refer to "Inspection and Adjustment" Testing and Inspection.
