REAR DOOR GLASS

Removal and Installation


REMOVAL

1.Remove rear door finisher. Refer to "Removal and Installation" Removal And Installation.
2.Disconnect rear door speaker and remove the sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing screen is reused.
3.Fully open rear door glass.
4.Remove partition sash mounting bolts and screw.
5.Reconnect the power window switch and then operate the power window switch to raise the door window until the glass mounting bolts can be seen.
6.Remove slightly the glass mounting bolts.
7.Operate the power window switch to lower the rear door glass.
8.Remove rear door glass run from partition sash.

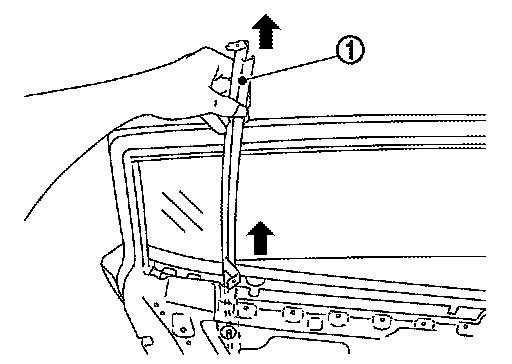

9.Pull partition sash (1) out of the rear door panel as shown in the figure to remove.

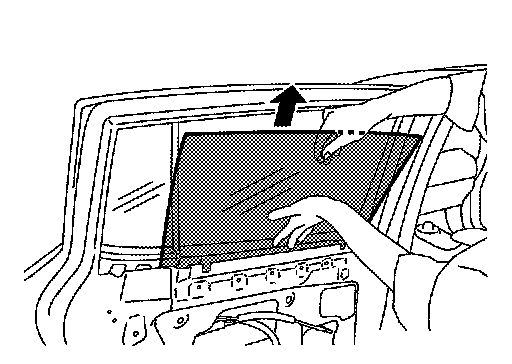

10.Remove rear door glass from the rear door panel as shown in the figure.
11.Remove partition glass.

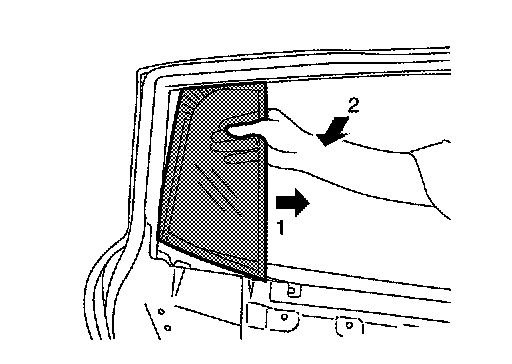

a.Slide partition glass toward the direction of arrow 1.
b.Pull partition glass toward the direction of arrow 2 to remove.

INSTALLATION

Install in the reverse order of removal.
