Rear LH

POWER WINDOW MOTOR

REAR LH : Diagnosis Procedure


1. CHECK REAR POWER WINDOW MOTOR LH INPUT SIGNAL

1.Turn power switch OFF.
2.Disconnect rear power window motor LH connector.
3.Turn power switch ON.

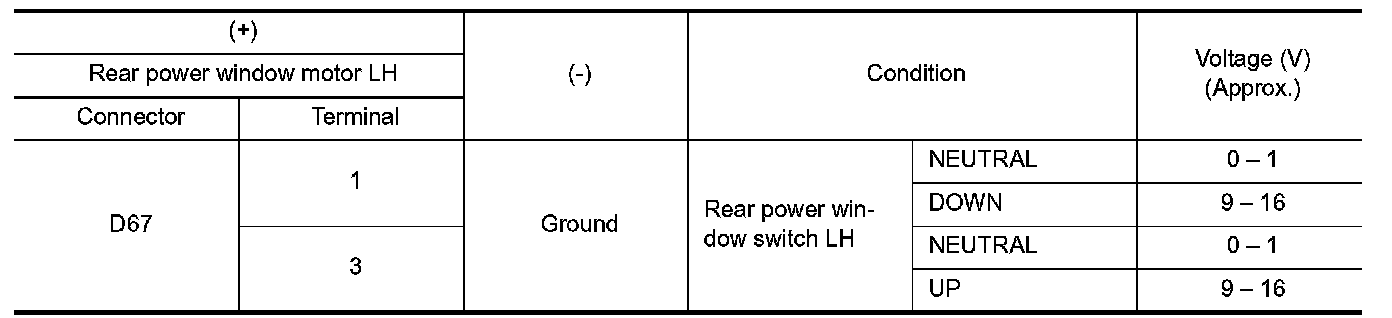

4.Check voltage between rear power window motor LH harness connector and ground.





Is the inspection result normal?
YES- Replace rear power window motor LH. Refer to "Removal and Installation" Removal And Installation.
NO- GO TO 2.

2. CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

1.Turn power switch OFF.
2.Disconnect rear power window switch LH connector.

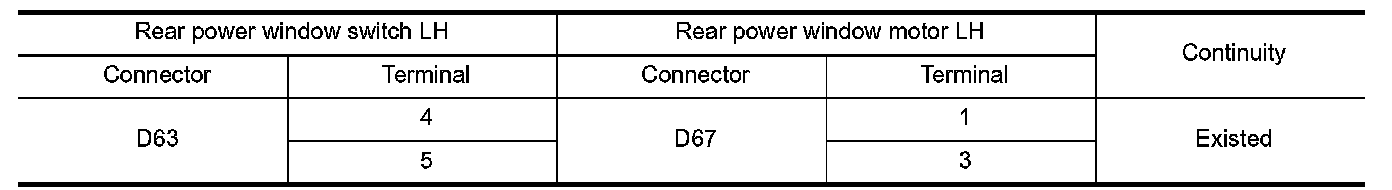

3.Check continuity between rear power window switch LH harness connector and rear power window motor
LH harness connector.

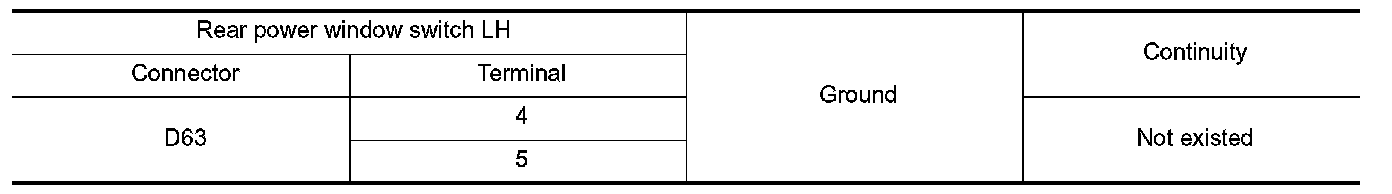

4.Check continuity between rear power window switch LH connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair or replace harness.
