Heated Glass Condenser: Service and Repair

CONDENSER

Removal and Installation


REMOVAL

1.Remove the back door lower finisher.
Refer to "BACK DOOR LOWER FINISHER : Removal and Installation" Back Door Lower Finisher

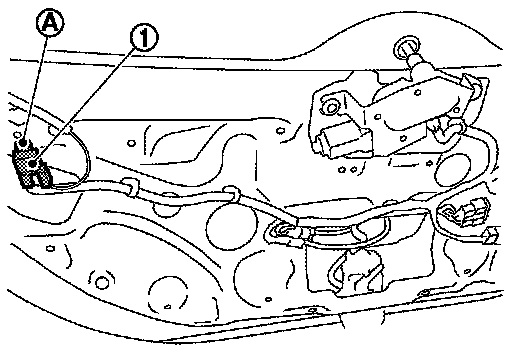

2.Remove bolt (A), and then remove condenser (1) from the vehicle body.

INSTALLATION

Install in the reverse order of removal.
