Inspection

REDUCTION GEAR OIL

Inspection


OIL LEAKAGE

Check reduction gear surrounding area (oil seal, drain plug, and filler plug etc.) for oil leakage.

OIL LEVEL

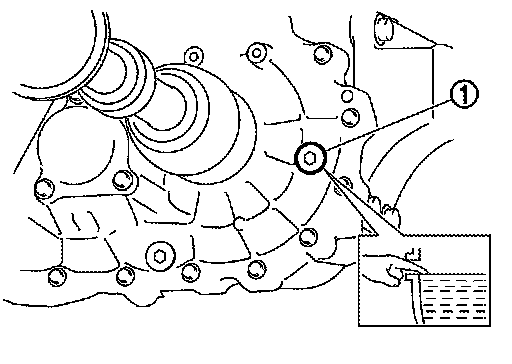

- Remove filler plug (1) and gasket. Then check that oil is filled up from mounting hole for the filler plug.

CAUTION:
Turn the power switch OFF while checking oil level.
- Set a gasket on filler plug and install it on reduction gear and tighten to the specified torque. Exploded View.

CAUTION:
- Never reuse gasket.
- If foreign matter, such as gear abrasion powder, is on the magnet of the filler plug, wipe it free of adherents before installation.
