Unbalance Steering Wheel Turning Force (Torque Variation)

UNBALANCE STEERING WHEEL TURNING FORCE (TORQUE VARIATION)

Description

Unbalance steering wheel turning force (torque variation).


Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS

With CONSULT
1.Turn the power switch OFF to ON.
2.Perform "EPS" self-diagnosis.
Is any DTC detected?
YES- Check the DTC.
NO- GO TO 2.

2. CHECK THE ILLUMINATION OF THE EPS WARNING LAMP

Check the EPS warning lamp while the vehicle is READY state.
Does the EPS warning lamp turn OFF?
YES- GO TO 3.
NO- Refer to "Diagnosis Procedure" EPS Warning Lamp Does Not Turn Off.

3. CHECK STEERING COLUMN AND STEERING GEAR

Check the steering column assembly and steering gear assembly.
- Steering column assembly. Refer to "Exploded View" With Heated Steering Wheel.
- Steering gear assembly. Refer to "Exploded View" With Heated Steering Wheel.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace the specific malfunctioning part.

4. CHECK EPS CONTROL UNIT SIGNAL (1)

With CONSULT
1.Set the vehicle to READY.

CAUTION:
Never drive the vehicle.
2.Turn steering wheel from full left stop to full right stop.
3.Select "ASSIST LEVEL" in "DATA MONITOR" in "EPS".
Dose the item in "DATA MONITOR" maintain "100%"?
YES- GO TO 7.
NO- GO TO 5.

5. CHECK EPS CONTROL UNIT SIGNAL (2)

With CONSULT
Select "BATTERY VOLT" in "DATA MONITOR" in "EPS".
Dose the item in "DATA MONITOR" indicate "10.5 V" or more?
YES- GO TO 6.
NO- Perform trouble diagnosis of EPS control unit power supply and ground. Refer to "Diagnosis Procedure" C1601.

6. CHECK EPS CONTROL UNIT SIGNAL (3)

With CONSULT
1.Select "C/U TEMP" in "DATA MONITOR" in "EPS".
2.Stop the EPS system until the item in "DATA MONITOR" becomes "85�C (185�F)" or less.
NOTE:
While stopping the EPS system, do not turn steering wheel.
3.Check that the symptom continues.
Dose the symptom continue?
YES- GO TO 7.
NO- The assist torque decreases because of protection function. This is not malfunction. INSPECTION END

7. CHECK EPS CONTROL UNIT SIGNAL (4)

With CONSULT
1.Set the vehicle to READY.

CAUTION:
Never drive the vehicle.
2.Turn steering wheel from full left stop to full right stop.

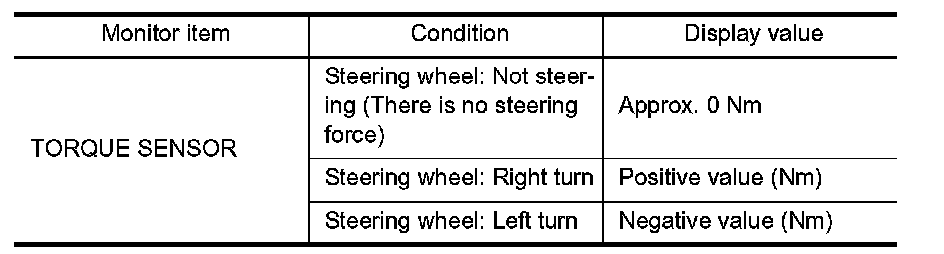

3.Select "TORQUE SENSOR" in "DATA MONITOR" in "EPS".
4.Perform the torque sensor inspection.





Is the inspection result normal?
YES- GO TO 9.
NO- GO TO 8.

8. CHECK EPS MOTOR

Perform the trouble diagnosis of EPS motor. Refer to "Diagnosis Procedure" C1606.
Is the inspection result normal?
YES- GO TO 9.
NO- Repair or replace the specific malfunctioning part.

9. CHECK STEERING WHEEL TURNING FORCE

Check the steering wheel turning force. Refer to "Inspection" With Heated Steering Wheel.
Is the inspection result normal?
YES- INSPECTION END
NO- Check the steering wheel turning force for mechanical malfunction. Refer to "Inspection" With Heated Steering Wheel.
