Pinout Values and Diagnostic Parameters

EPS CONTROL UNIT

Reference Value

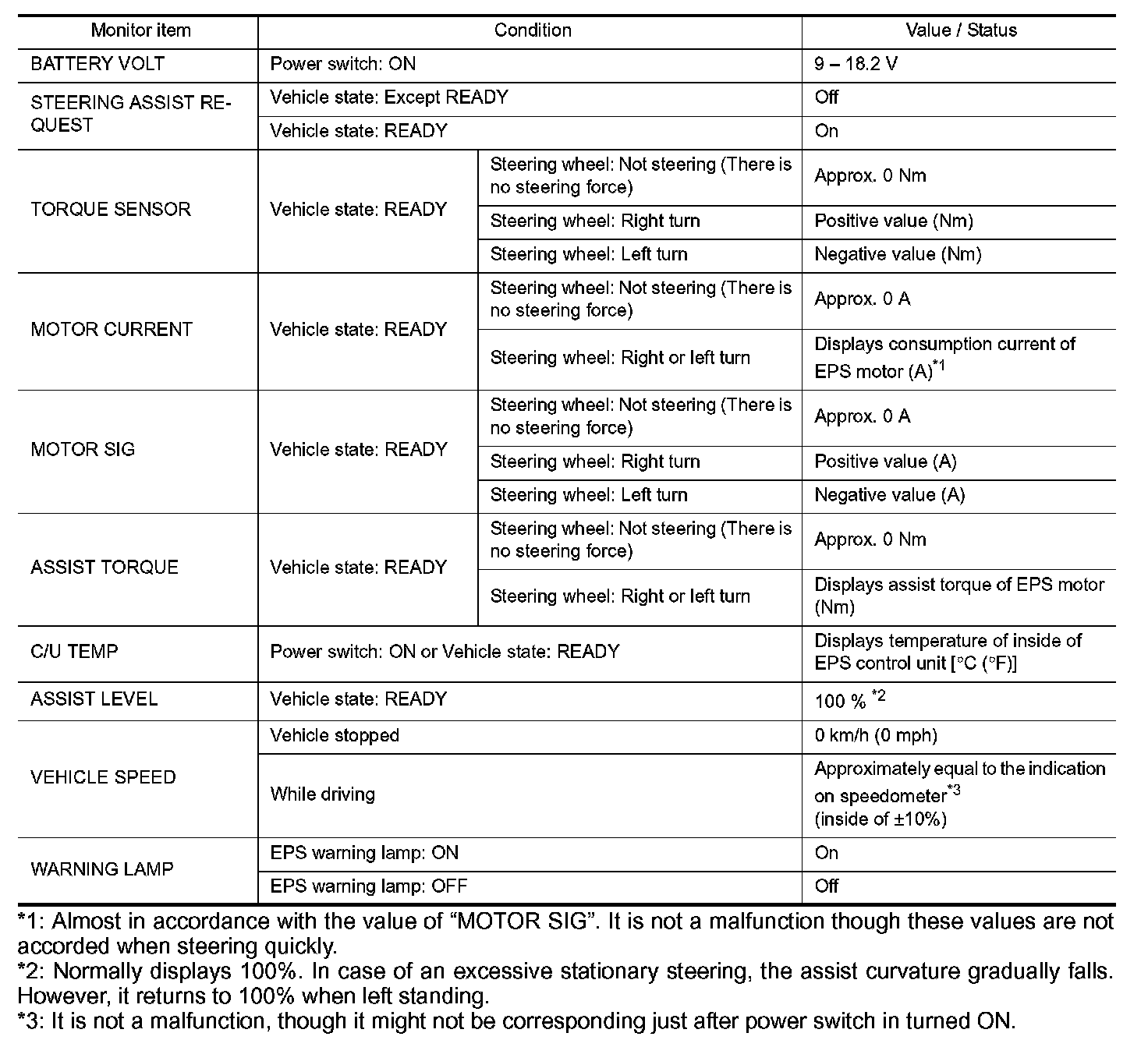

VALUES ON THE DIAGNOSIS TOOL






*1: Almost in accordance with the value of "MOTOR SIG". It is not a malfunction though these values are not accorded when steering quickly.
*2: Normally displays 100%. In case of an excessive stationary steering, the assist curvature gradually falls.
However, it returns to 100% when left standing.
*3: It is not a malfunction, though it might not be corresponding just after power switch in turned ON.

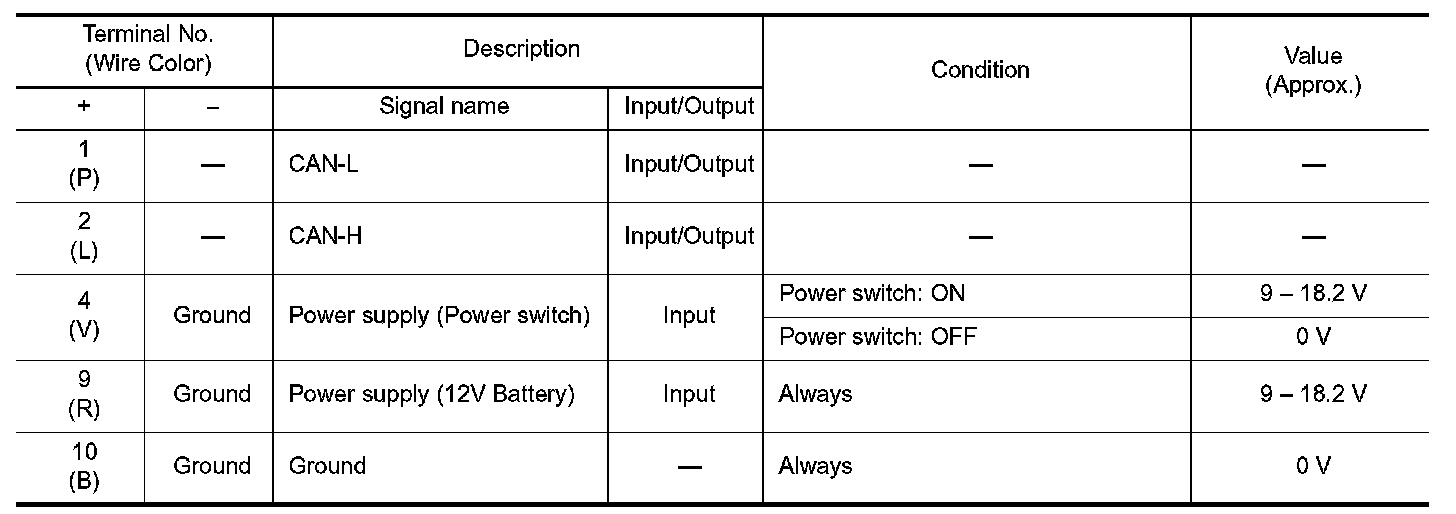

TERMINAL LAYOUT







PHYSICAL VALUES
