Heated Steering Wheel System

HEATED STEERING WHEEL SYSTEM

Component Function Check


1. CHECK HEATED STEERING WHEEL SYSTEM

Check operate heated steering wheel system. Refer to "HEATED STEERING WHEEL SYSTEM : System Description" System Description.
Is the inspection result normal?
YES- INSPECTION END
NO- Go to "Diagnosis Procedure" .


Diagnosis Procedure


1. CHECK POWER SOURCE

1.Turn power switch OFF.
2.Remove the heated steering wheel. Refer to "Removal and Installation" With Heated Steering Wheel.
3.Turn power switch ON.
4.Turn heated steering wheel switch ON.
5.Check voltage between heated steering wheel harness connector terminals.





Is the inspection result normal?
YES- GO TO 2.
NO- GO TO 3.

2. CHECK HEATED STEERING WHEEL

Check heated steering wheel. Refer to "Component Inspection (Heated Steering Wheel)" .
Is the inspection result normal?
YES- INSPECTION END
NO- Replace heated steering wheel. Refer to "Removal and Installation" With Heated Steering Wheel.

3. CHECK GROUND CIRCUIT

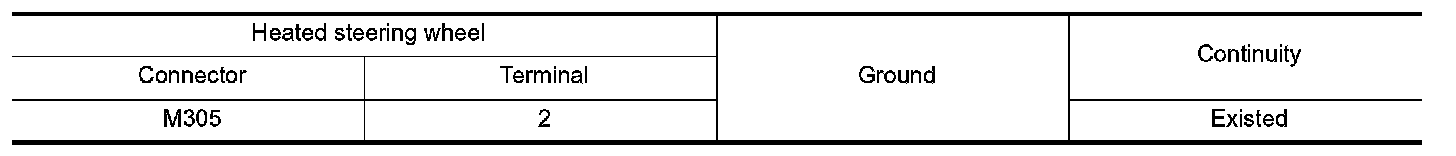

Check continuity between heated steering wheel harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace damaged parts.

4. CHECK HARNESS BETWEEN HEATED STEERING WHEEL RELAY AND HEATED STEERING WHEEL

1.Turn power switch OFF.
2.Disconnect heated steering wheel relay connector. Refer to "HEATED STEERING WHEEL SYSTEM : Component Parts Location" Locations.
3.Remove the heated steering wheel. Refer to "Removal and Installation" With Heated Steering Wheel.

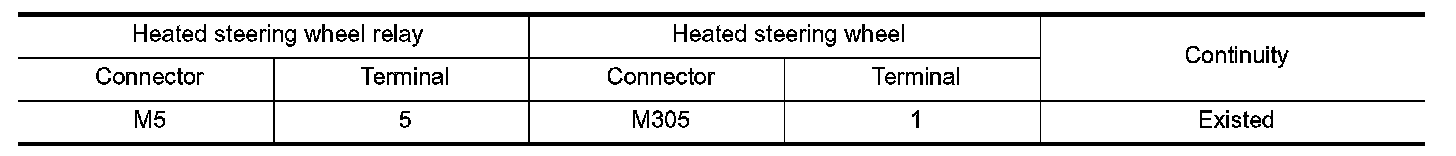

4.Check continuity between heated steering wheel relay harness connector terminal and heated steering wheel harness connector terminal.

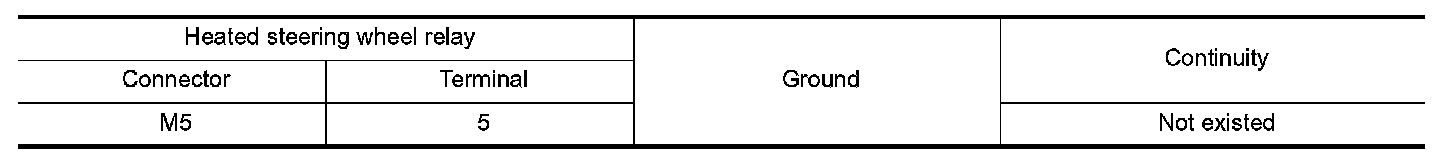

5.Check continuity between heated steering wheel relay harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace damaged parts.

5. CHECK HEATED STEERING WHEEL RELAY

Check heated steering wheel relay. Refer to "Component Inspection (Heated Steering Wheel Relay)" .
Is the inspection result normal?
YES- GO TO 6.
NO- Replace heated steering wheel relay. Refer to "HEATED STEERING WHEEL SYSTEM : Component Parts Location" Locations.

6. CHECK POWER SOURCE (BATTERY)

Check the following.
- 12V battery
- Harness for short or open between 12V battery and 15A fuse (No. 8)
- 15A fuse (No. 8)
- Harness for short or open between 15A fuse (No. 8) and heated steering wheel relay
Is the inspection result normal?
YES- GO TO 7.
NO- Repair or replace damaged parts.

7. CHECK GROUND CIRCUIT

Check continuity between heated steering wheel harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 8.
NO- Repair or replace damaged parts.

8. CHECK HARNESS BETWEEN HEATED STEERING WHEEL RELAY AND A/C AUTO AMP.

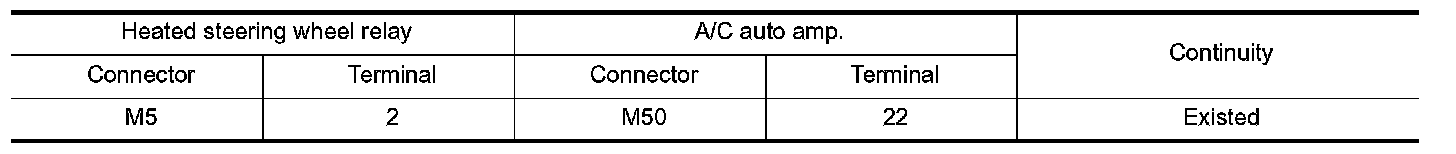

1.Check continuity between heated steering wheel relay harness connector terminal and A/C auto amp.
harness connector terminal.

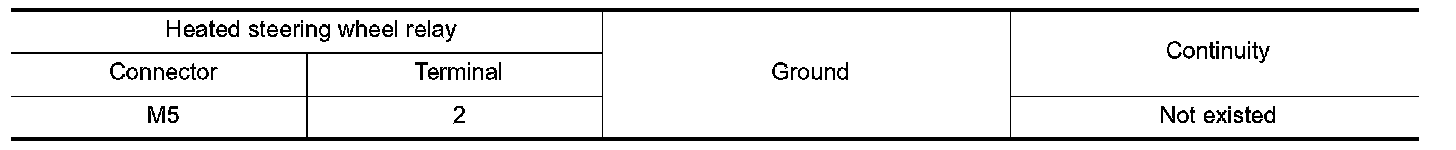

2.Check continuity between heated steering wheel relay harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 9.
NO- Repair or replace damaged parts.

9. CHECK HARNESS BETWEEN A/C AUTO AMP. AND HEATED STEERING WHEEL SWITCH

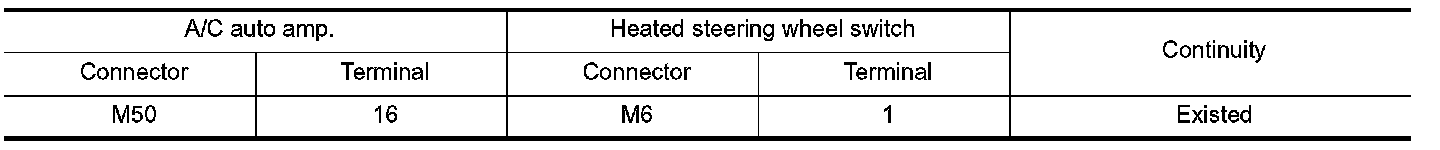

1.Check continuity between A/C auto amp. harness connector terminal and heated steering wheel harness connector terminal.

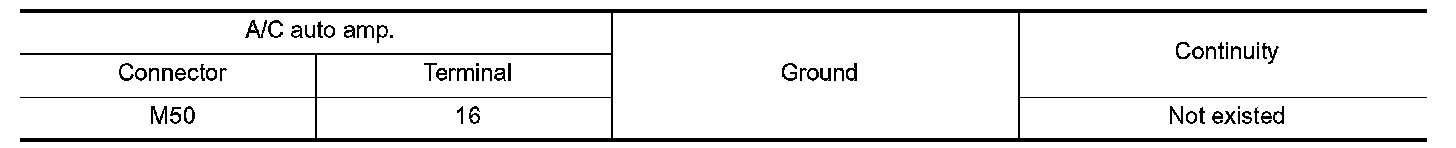

2.Check continuity between A/C auto amp. harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 10.
NO- Repair or replace damaged parts.

10. CHECK HEATED STEERING WHEEL SWITCH

Check heated steering wheel switch. Refer to "HEATED STEERING WHEEL SYSTEM : Heated Steering Wheel Switch" Heated Steering Wheel Switch.
Is the inspection result normal?
YES- Repair or replace A/C auto amp. Refer to "Removal and Installation" Service and Repair.
NO- Replace heated steering wheel switch. Refer to "Removal and Installation" Heated Steering Wheel Switch.


Component Inspection (Heated Steering Wheel Switch)


1. CHECK HEATED STEERING WHEEL SWITCH

1.Turn power switch OFF.
2.Remove the heated steering wheel switch. Refer to "Removal and Installation" Heated Steering Wheel Switch.

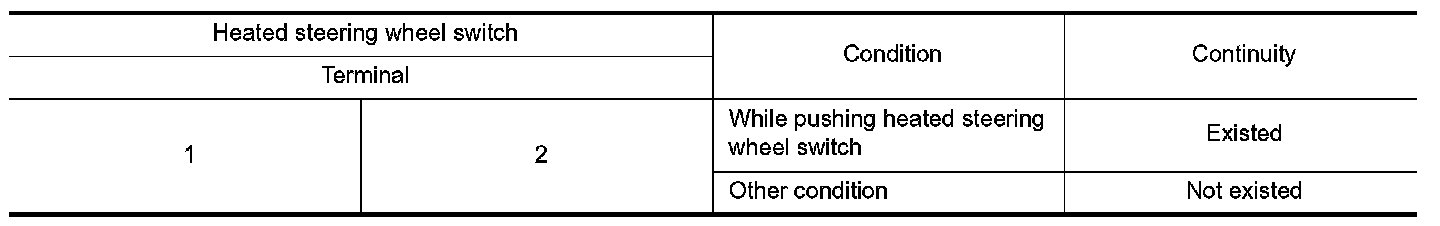

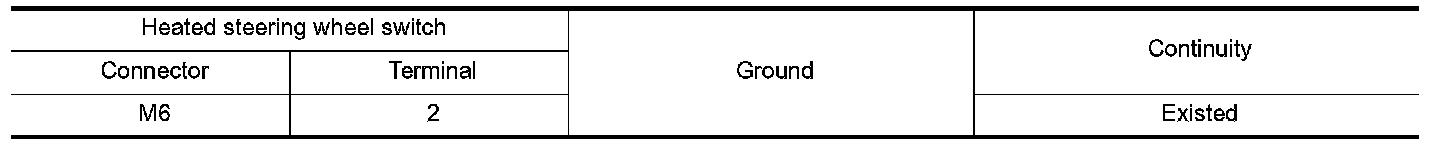

3.Check continuity between heated steering wheel switch harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Replace heated steering wheel switch. Refer to "Removal and Installation" Heated Steering Wheel Switch.

2. CHECK HEATED STEERING WHEEL SWITCH INDICATOR LAMP

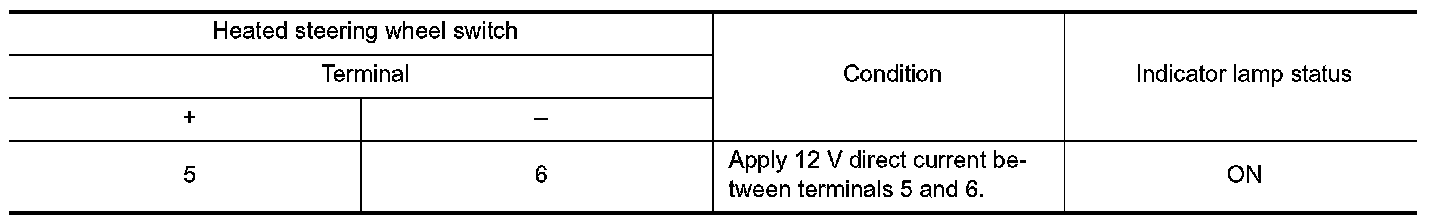

Apply a voltage of 12V between the heated steering wheel switch connector terminals to check that the indicator lamp turns ON.

CAUTION:
- Connect the fuse between the terminals when applying the voltage.
- To prevent damage, always observe the correct polarity.
- Prevent short-circuit.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace heated steering wheel switch. Refer to "Removal and Installation" Heated Steering Wheel Switch.


Component Inspection (Heated Steering Wheel)


1. CHECK HEATED STEERING WHEEL CONTINUITY

1.Turn power switch OFF.
2.Remove the heated steering wheel. Refer to "Removal and Installation" With Heated Steering Wheel.

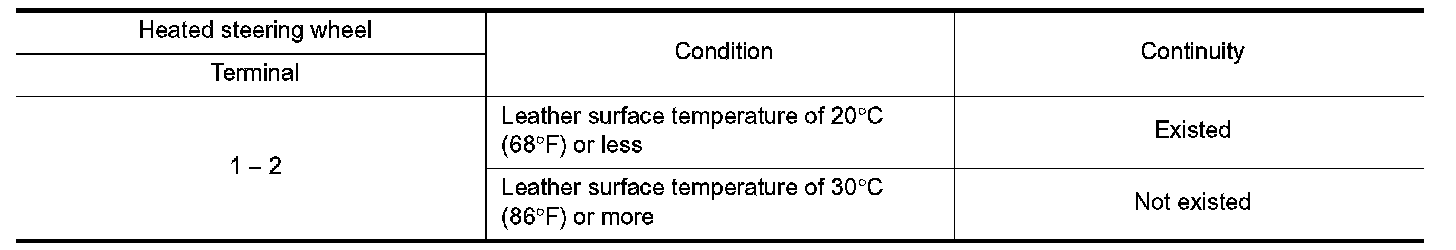

3.Check continuity between heated steering wheel harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Replace heated steering wheel. Refer to "Removal and Installation" With Heated Steering Wheel.

2. CHECK HEATED STEERING WHEEL RESISTANCE

Check resistance between heated steering wheel connector terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace heated steering wheel. Refer to "Removal and Installation" With Heated Steering Wheel.


Component Inspection (Heated Steering Wheel Relay)


1. CHECK HEATED STEERING WHEEL RELAY CONTINUITY

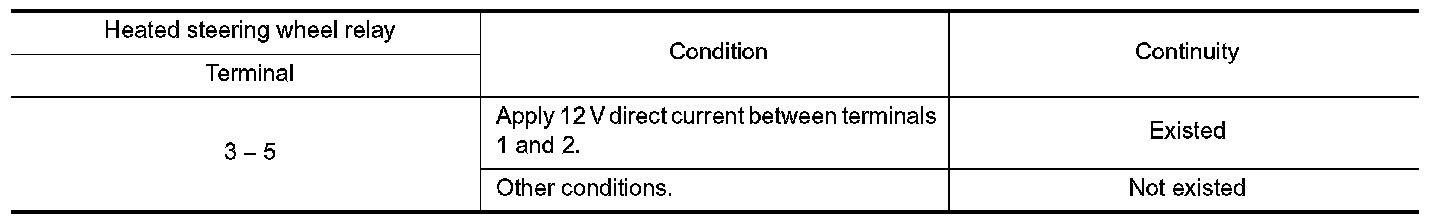

Check continuity between heated steering wheel relay terminals.

CAUTION:
- Connect the fuse between the terminals when applying the voltage.
- To prevent damage, always observe the correct polarity.
- Prevent short-circuit.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace heated steering wheel relay. Refer to "HEATED STEERING WHEEL SYSTEM : Component Parts Location" Locations.
