EPS Motor, Torque Sensor, Reduction Gear

COMPONENT PARTS

EPS Motor, Torque Sensor, Reduction Gear

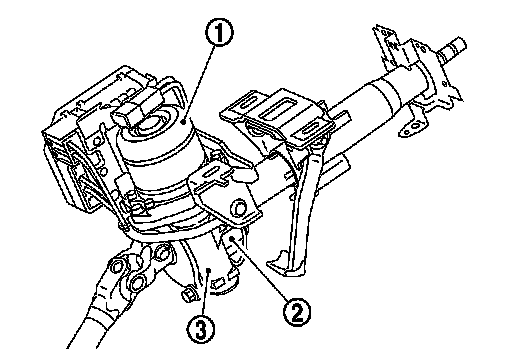

EPS motor (1), torque sensor (2) and reduction gear (3) are installed to steering column assembly.

EPS MOTOR

EPS motor provides the assist torque by the control signal from EPS control unit.

TORQUE SENSOR

Torque sensor detects the steering torque, and transmits the signal to EPS control unit.

REDUCTION GEAR

Reduction gear increases the assist torque provided from EPS motor with worm gears, and outputs to the column shaft.
