Tire Pressure Sensor: Description and Operation




COMPONENT PARTS

Tire Pressure Sensor

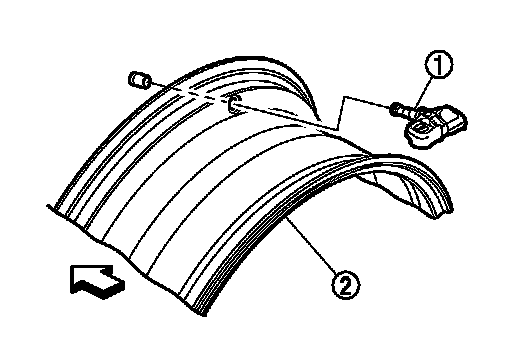

The tire pressure sensor (1) integrated with a valve is installed on a wheel (2), and transmits a detected air pressure signal by radio wave.
