Removal And Installation

POWER SOCKET

Removal and Installation


REMOVAL

1.Remove cluster lid C. Refer to "Removal and Installation" Removal And Installation.
2.Disconnect power socket connector.

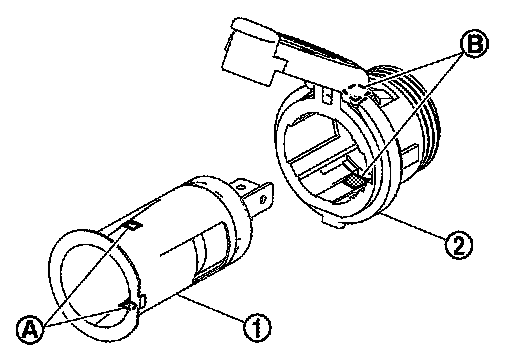

3.Pull out inner socket (1) by pushing the pawl (B) of the ring (2)
from the inner socket hole (square) (A).





4.Press the ring pawl from the back of the cluster lower panel to remove the ring.


INSTALLATION

Note the following, and install in the reverse order of removal.

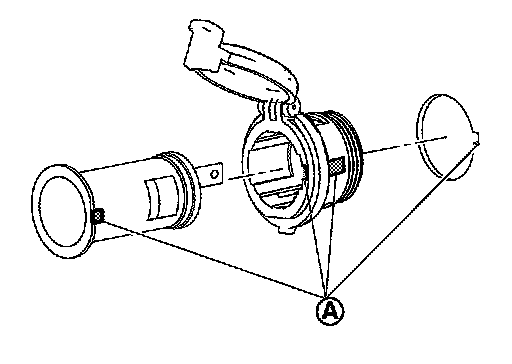

Align the cut outs of inner socket, ring and cluster lower panel.
