Removal And Installation

SOLAR CELL MODULE

Removal and Installation


REMOVAL

1.Remove rear spoiler. Refer to "Removal and Installation" Removal And Installation.

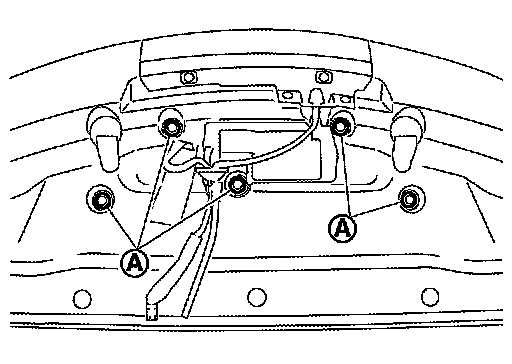

2.Remove solar cell module mounting nuts (A).

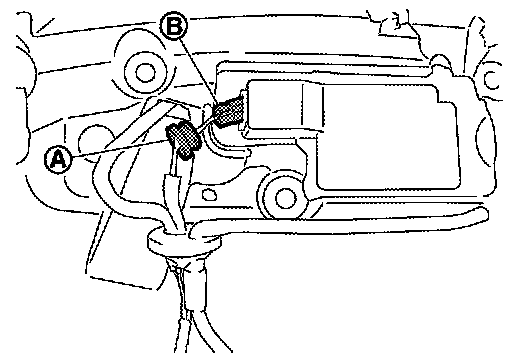

3.Remove harness grommet (A), and then disconnect harness connector (B).
4.Remove solar cell module from rear spoiler.

INSTALLATION

Install in the reverse order of removal.
