System Description

SYSTEM

SOLAR CELL MODULE : System Description


Operating conditions

- The 12V battery is recharged according to the amount of power generation of the solar cell module. Therefore, the 12V battery is not recharged when power generation amount of the solar cell module is low.

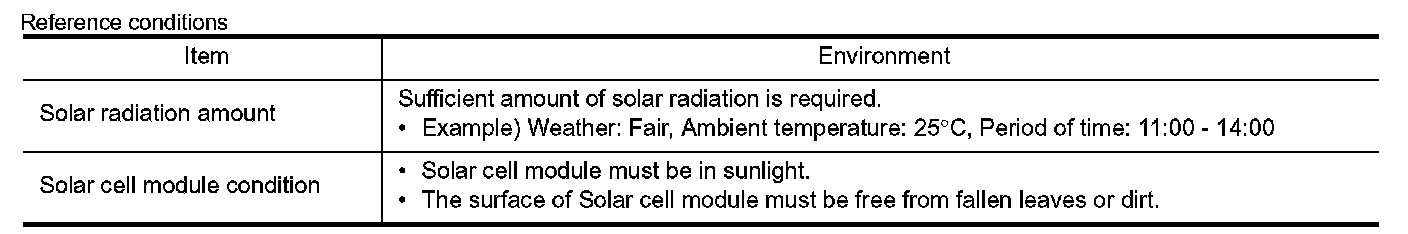

Reference conditions






Recharging 12V battery

- When electromotive force (unit: V) of the solar cell module exceeds 12V battery voltage in the sun, the 12V
battery is recharged at a current responsive to .
- The 12V battery is not recharged when electromotive force falls below battery voltage.
