Pinout Values and Diagnostic Parameters




APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL

CONSULT MONITOR ITEM

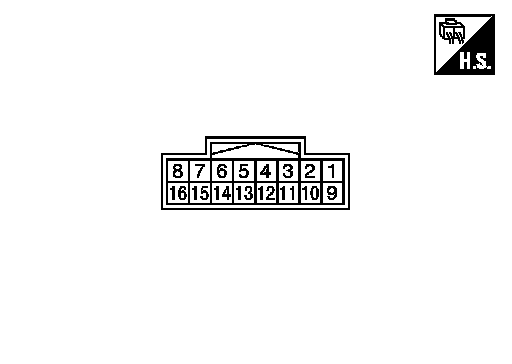

TERMINAL LAYOUT

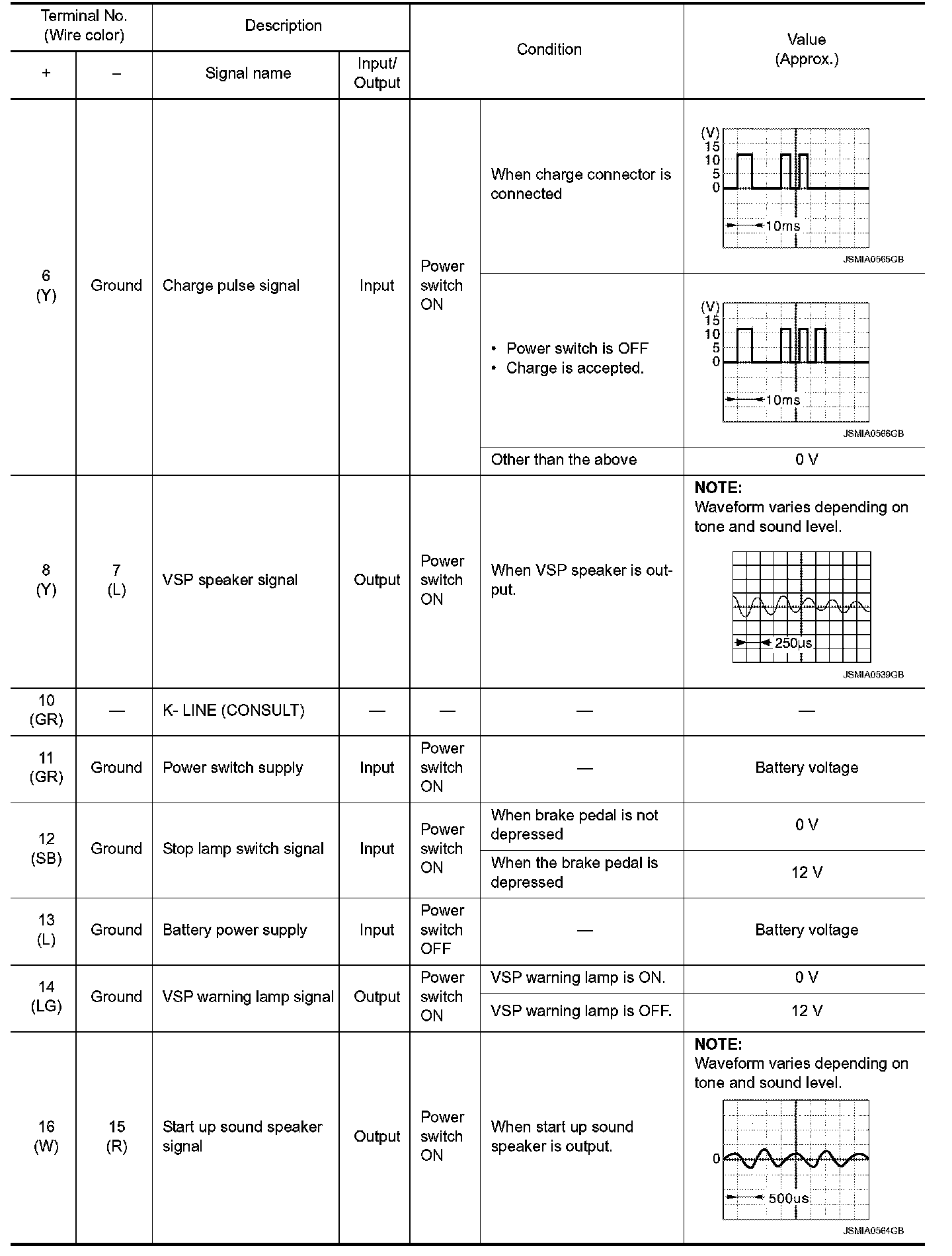

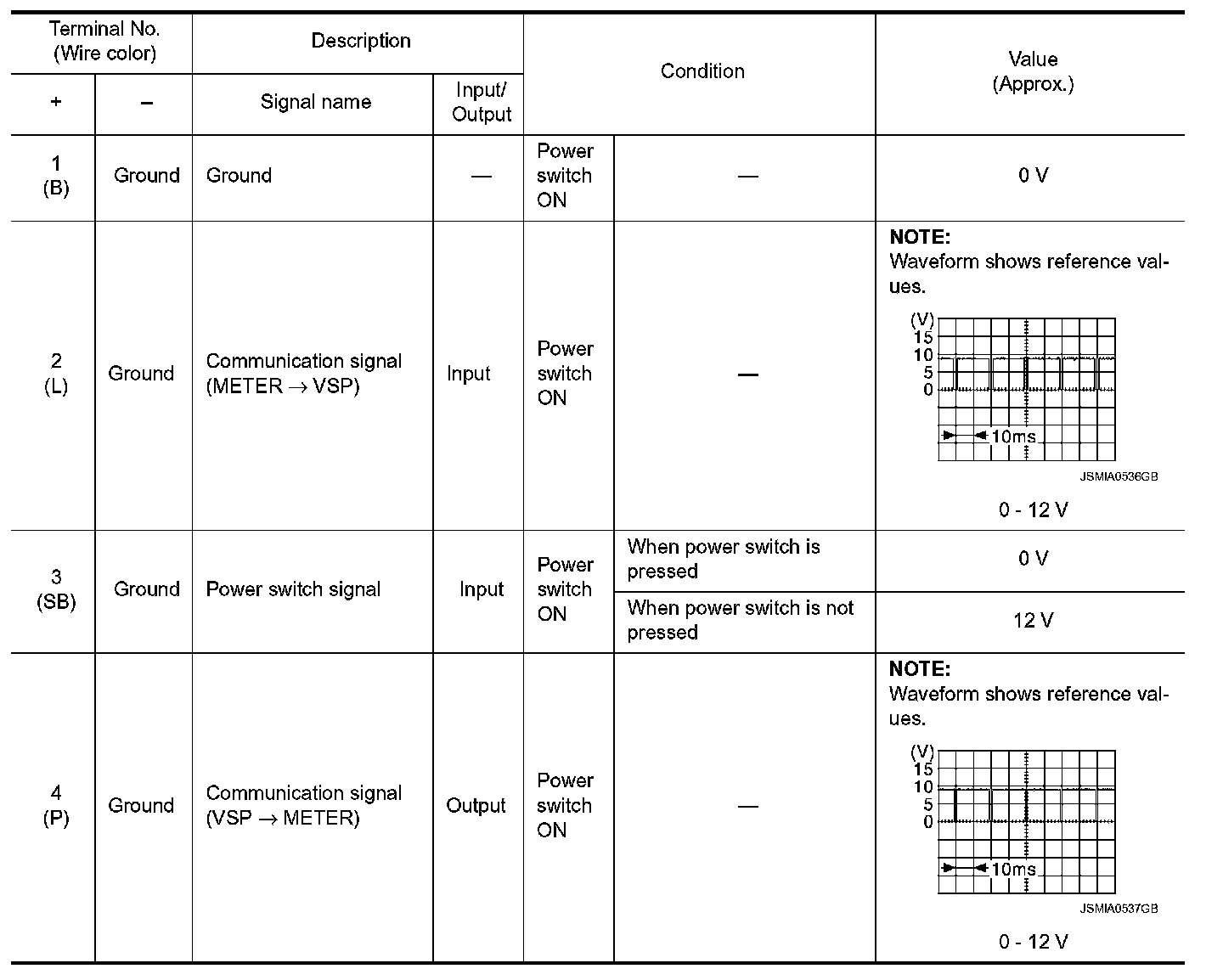

PHYSICAL VALUES
