Removal And Installation

SATELLITE SENSOR

Removal and Installation


WARNING:
Always observe the following items for preventing accidental activation.
- Before servicing, push power switch OFF, disconnect 12V battery negative terminal and wait for 5
minutes or more. Refer to "Precaution for Removing 12V Battery" Precaution For Removing 12V Battery.
- Never use air tools or electric tools for servicing.

FRONT SATELLITE SENSOR

Removal
1.Remove the front door finisher. Refer to "Removal and Installation" Removal And Installation.
2.Remove sealing screen partially.
NOTE:
Cut the butyl-tape with utility knives so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing screen is reused.

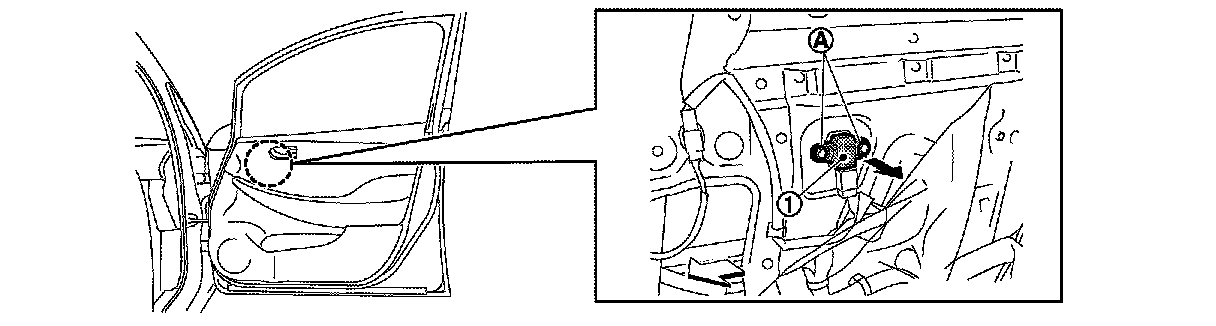

3.Remove the front satellite sensor mounting bolts (A), and then pull the front satellite sensor (1).






4.Disconnect the harness connector and then remove the front satellite sensor.

CAUTION:





- To prevent damage to the parts, never impact the front satellite sensor.


- Replace the front satellite sensor if it is dropped or sustains an impact.
- Replace the front satellite sensor of deployed SRS side air bag module and deployed SRS curtain air bag module.
Installation
Note the following items, and then install in the reverse order of removal.

CAUTION:
- Never reuse mounting bolts after removal, replace with new bolts.
- Never damage the harness while installing.
- Always install normally aligning to the cutout hole, because performance of the front satellite sensor excessively fluctuates according to the installation position.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT. Refer to "On Board Diagnosis Function" On Board Diagnosis Function or "CONSULT Function" Supplemental Restrants.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.

REAR SATELLITE SENSOR

Removal
1.Remove the center pillar lower garnish. Refer to "CENTER PILLAR UPPER GARNISH : Removal and Installation" Center Pillar Upper Garnish.





2.Remove the rear satellite sensor mounting nut (A), and then pull the rear satellite sensor (1).

3.Disconnect the harness connector and then remove the rear satellite sensor.

CAUTION:





- To prevent damage to the parts, never impact the rear satellite sensor.


- Replace the rear satellite sensor if it is dropped or sustains an impact.
- Replace the rear satellite sensor of deployed SRS side air bag module and deployed SRS curtain air bag module.
Installation
Note the following items, and then install in the reverse order of removal.

CAUTION:
- Never reuse mounting nut after removal, replace with new nut.
- Never damage the harness while installing.
- Always install normally aligning to the cutout hole, because performance of the rear satellite sensor excessively fluctuates according to the installation position.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT. Refer to "On Board Diagnosis Function" On Board Diagnosis Function or "CONSULT Function" Supplemental Restrants.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.
