Curtain Air Bag Module

COMPONENT PARTS

AIR BAG MODULE : Curtain air bag module






- Curtain air bag module is built into roof side portion LH and RH.

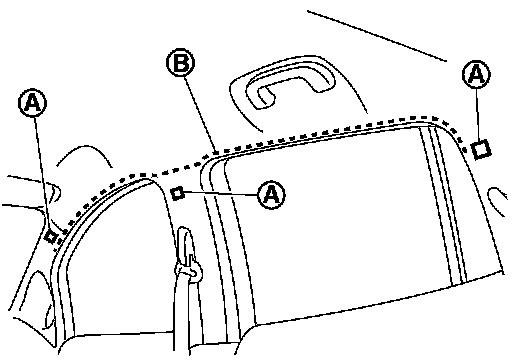

- Identification mark (A) is installed to center pillar upper garnish upper indicating that SRS curtain air bag is equipped.
- Curtain air bag inflates through a space (B) between headliner and roof side portion.

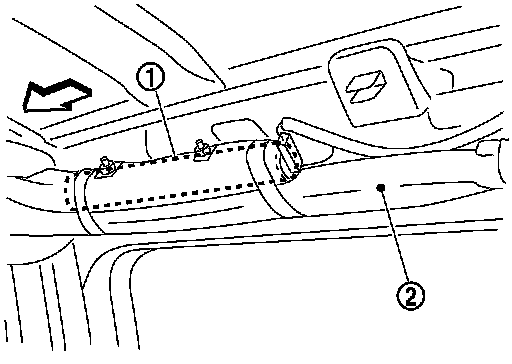

- Curtain air bag module mainly consists of air bag (2) and inflator (1) which inflates air bag.
