Selector Indicator Circuit

SELECTOR INDICATOR CIRCUIT

Component Function Check


1. CHECK SELECTOR INDICATOR

1.Set the vehicle to READY.
2.Shift the selector lever.
3.Check that the illuminated position of the selector indicator in the finisher area corresponds to the selected shift position.
Is the inspection result normal?
YES- INSPECTION END
NO- Go to "Diagnosis Procedure" .


Diagnosis Procedure


1. CHECK SELECTOR INDICATOR POWER SUPPLY CIRCUIT

1.Disconnect the selector indicator connector.
2.Check the voltage between selector indicator vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. DETECT MALFUNCTIONING ITEM

Check the following.
- Harness for short or open between selector indicator vehicle side harness connector and 12V battery.
- 12V battery
- 10A fuse (# 12)
Is the inspection result normal?
YES- Check intermittent incident. Refer to "Intermittent Incident" Intermittent Incident.
NO- Repair or replace damaged parts.

3. CHECK HARNESS BETWEEN ELECTRIC SHIFT CONTROL MODULE AND SELECTOR INDICATOR

1.Disconnect the electric shift control module connector.

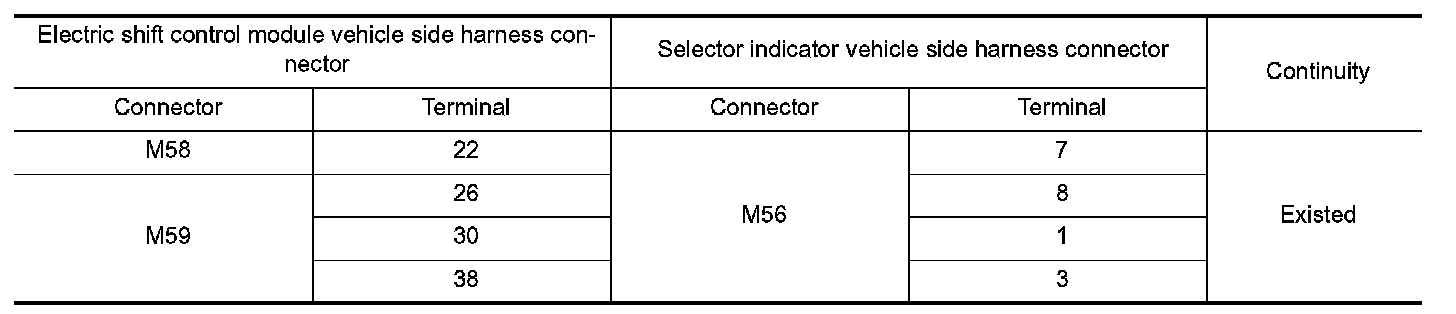

2.Check the continuity between electric shift control module vehicle side harness connector terminals and selector indicator vehicle side harness connector terminals.

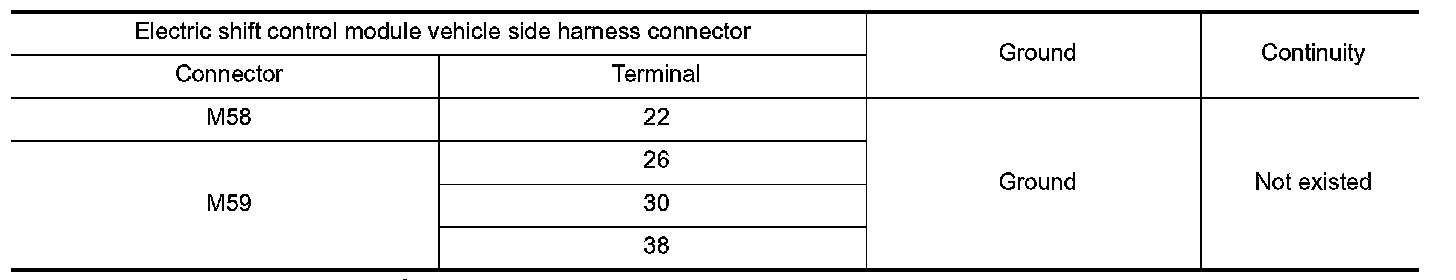

3.Check the continuity between electric shift control module vehicle side harness connector terminals and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace damaged parts.

4. CHECK GROUND CIRCUIT

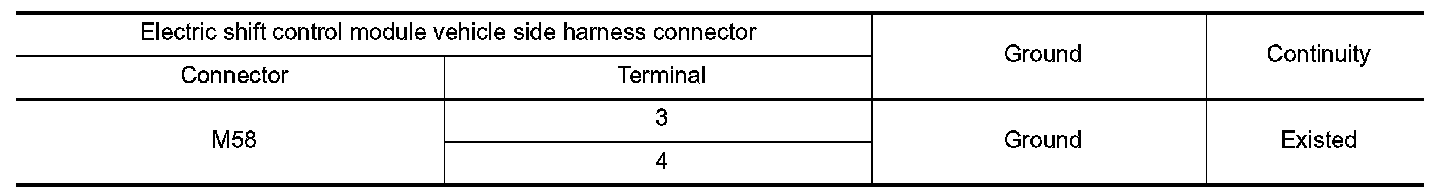

Check the continuity between electric shift control module vehicle side harness connector terminals and ground.





Is the inspection result normal?
YES- 1.Check intermittent incident. Refer to "Intermittent Incident" Intermittent Incident.
2.If inspection result is OK, replace the selector indicator. Refer to "Removal and Installation"
NO- Repair or replace damaged parts.
