Power Switch




COMPONENT PARTS

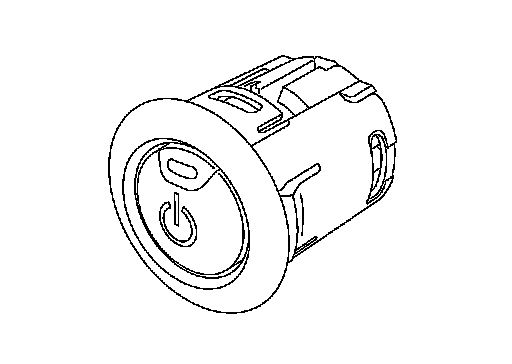

Power Switch






Power switch (push switch) is pressed, and transmits the status signal to BCM and IPDM E/R.
