System Description

SYSTEM

System Description

- During driving, the TPMS (Tire Pressure Monitoring System) receives the signal transmitted from tire pressure sensor installed in each wheel. The BCM (Body Control Module) of this system has pressure judgment and trouble diagnosis functions. When the tire pressure monitoring system detects low inflation pressure or another unusual symptom, the low tire pressure warning lamps in the combination meter comes on.
- If the tire pressure is less than the specified value, the low tire pressure warning lamp illuminates that the tire pressure is less than the specified value.
- Activates the TPMS (Tire Pressure Monitoring System) when the vehicle speed is 40 km/h (25 MPH) or more.
- Added easy fill tire alert function to TPMS (Tire Pressure Monitoring System). Refer to "Easy Fill Tire Alert Function" Easy Fill Tire Alert Function.

SYSTEM DIAGRAM







INPUT/OUTPUT SIGNAL

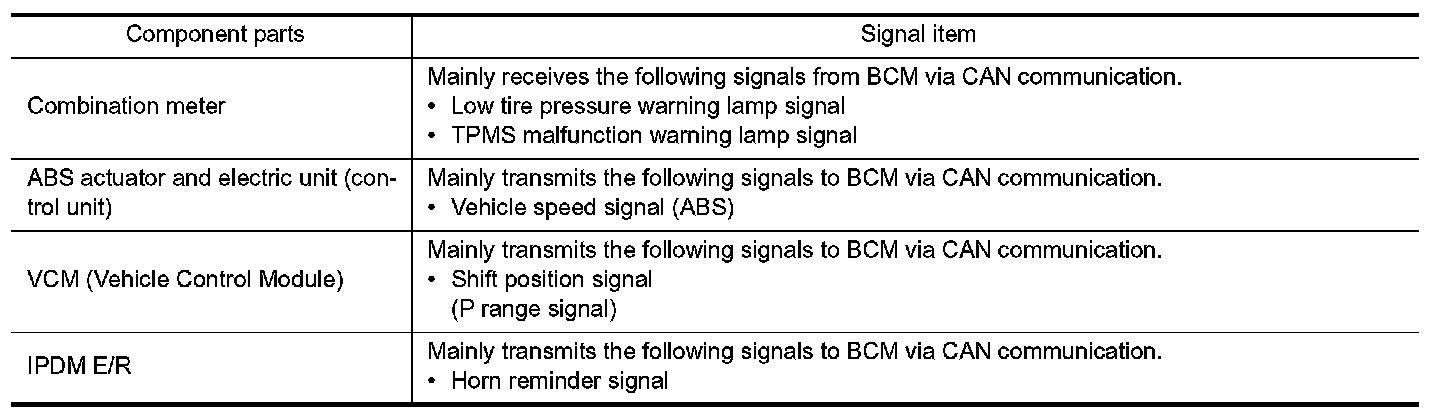

Major signal transmission between each unit via communication lines is shown in the following table.

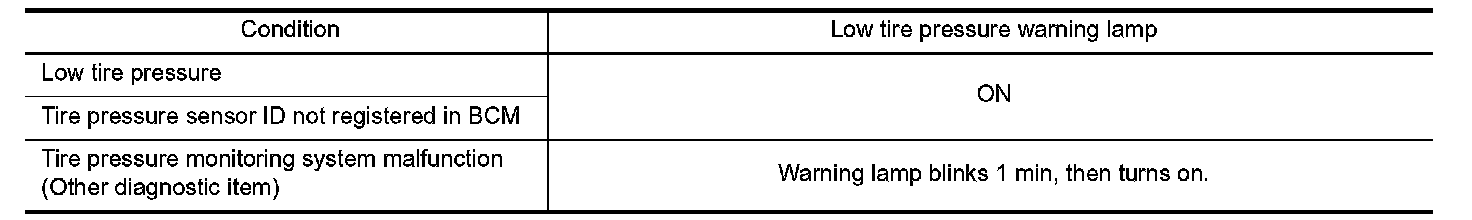

LOW TIRE PRESSURE WARNING LAMP INDICATION CONDITION

Uses CAN communication from the BCM to illuminate the low tire pressure warning lamp on the combination meter.











HAZARD WARNING LAMP INDICATION CONDITION

The hazard warning lamp blinks under the following conditions.
- When ID registration is completed. Refer to "Work Procedure" Work Procedure.
- During the use of the easy fill tire alert function.

HORN CONTROL CONDITION

During the use of easy fill tire alert function.
