Inspection

LUBRICANT

Inspection

If there is a malfunction (abnormal noise from inside, cooling failure) in the compressor unit, check the compressor oil.

1. CHECK COMPRESSOR OIL

1.Remove electric compressor. "Exploded View" Exploded View.

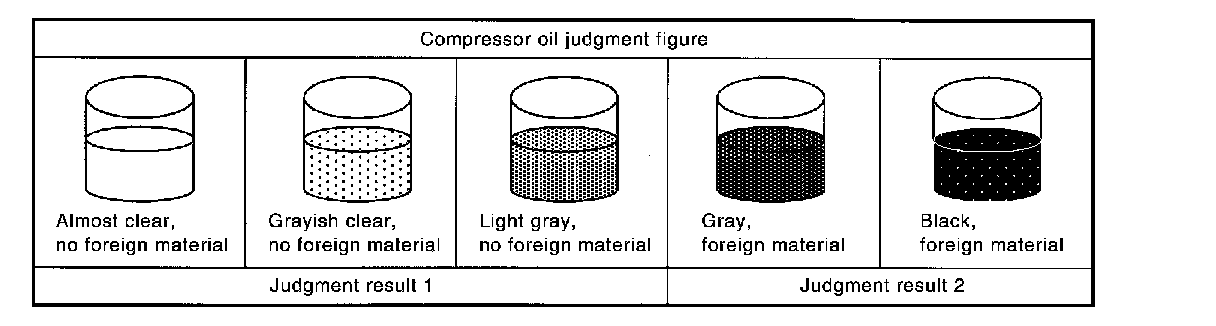

2.Refer to the diagram and judge the drained compressor oil.





Judgment result 1:-Replace only the compressor.
Judgment result 2:-Replace compressor and liquid tank.
