Rear Combination Lamp

REAR COMBINATION LAMP

Replacement


CAUTION:
- Disconnect the 12V battery negative terminal or remove the fuse. Refer to "Precaution for Removing 12V Battery" Precaution For Removing 12V Battery.
- Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
- Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP BULB

LED is used for stop/tail lamp bulb. Always replace rear combination lamp assembly as a unit, when bulb is to be replaced because of malfunction.

REAR TURN SIGNAL LAMP BULB

1.Remove rear combination lamp mounting bolts.

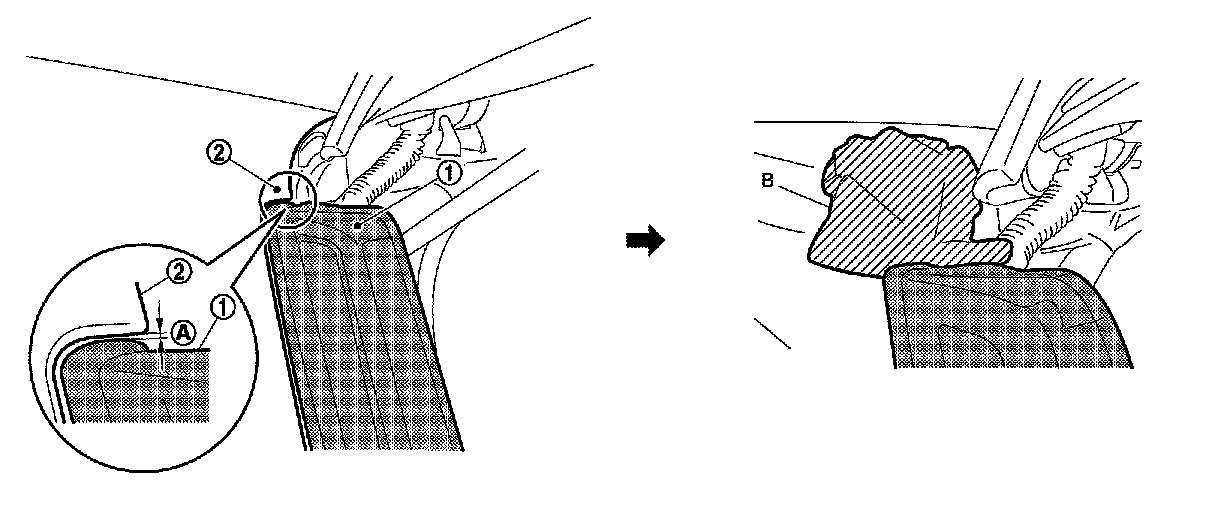

2.Insert a shop cloth (B) into clearance (A) between rear combination lamp (1) and rear fender panel (2), or apply protective tape.

CAUTION:
- To prevent rear fender panel paint surface from being damaged, always apply protection using a shop cloth or protective tape.
- When using protective tape, apply protective tape to both rear fender panel and rear combination lamp.










3.Pull rear combination lamp toward vehicle rear side, as shown by the arrow in the figure.



4.Rotate bulb socket counterclockwise and unlock it.
5.Remove bulb from the socket.

BACK-UP LAMP BULB

1.Remove rear combination lamp mounting bolts.
2.Insert a shop cloth (B) into clearance (A) between rear combination lamp (1) and rear fender panel (2), or apply protective tape.

CAUTION:
- To prevent rear fender panel paint surface from being damaged, always apply protection using a shop cloth or protective tape.
- When using protective tape, apply protective tape to both rear fender panel and rear combination lamp.










3.Pull rear combination lamp toward vehicle rear side, as shown by the arrow in the figure.


4.Rotate bulb socket counterclockwise and unlock it.
5.Remove bulb from the socket.
