Removal And Installation

ROOM LAMP

Removal and Installation


CAUTION:
- Disconnect the 12V battery negative terminal or remove power circuit fuse while performing the operation to prevent electric leakage. Refer to "Precaution for Removing 12V Battery" Precaution For Removing 12V Battery.
- Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
- Never touch the glass surface of the bulb with bare hands because the surface is very hot just after the lamp is turned OFF to prevent a burns.

REMOVAL

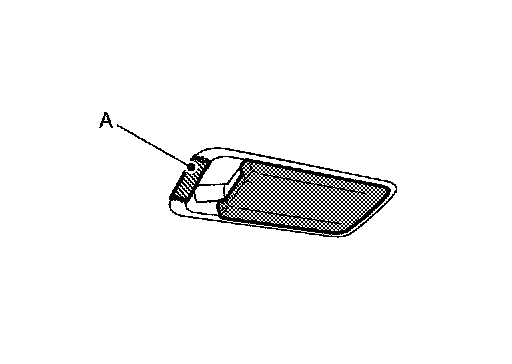

1.Apply protective tape (A) on the parts to protect it from damage.

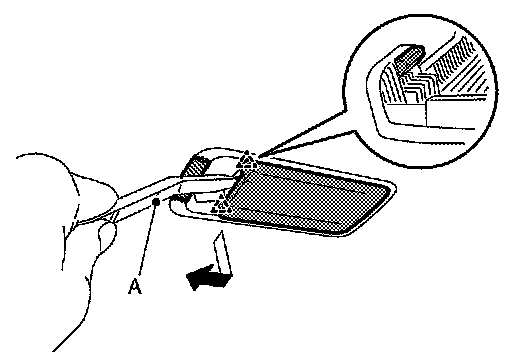

2.Disengage lens fixing pawls with a remover tool (A), and then remove lens.

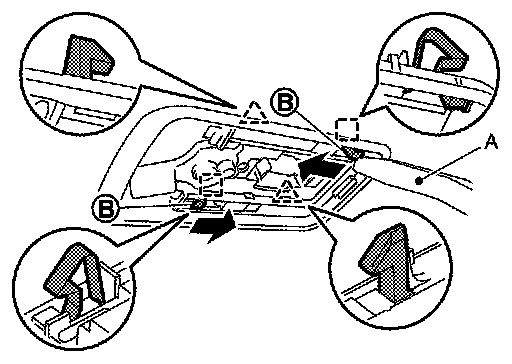

3.Using a remover tool (A), press the metal clip (B), and then disengage.
4.Pull downward and then disengage the room lamp mounting pawls.

CAUTION:
Be careful not to disengage the pawls forcibly. Doing so may cause damage to the headliner by pawls that are fully engaged to the headliner.


5.Disconnect the harness connector, and then remove room lamp assembly.

INSTALLATION

Install in the reverse order of removal.
