Removal And Installation

MAP LAMP

Removal and Installation


CAUTION:
- Disconnect the 12V battery negative terminal or remove power circuit fuse while performing the operation to prevent electric leakage. Refer to "Precaution for Removing 12V Battery" Precaution For Removing 12V Battery.
- Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
- Never touch the glass surface of the bulb with bare hands because the surface is very hot just after the lamp is turned OFF to prevent a burns.

REMOVAL






1.Apply protective tape (A) on the parts to protect it from damage.

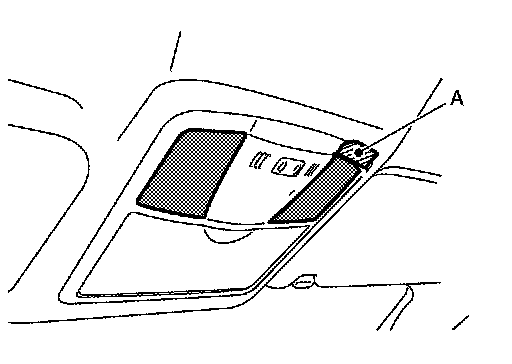

2.Remove the lens.





Disengage lens fixing pawls with a remover tool (A).


3.Remove the lamp unit.





a.Disengage lamp unit fixing pawls with a remover tool (A).

b.Disconnect harness connector, and then remove lamp unit.
4.Remove the headlining. Refer to "Removal and Installation" Removal And Installation.

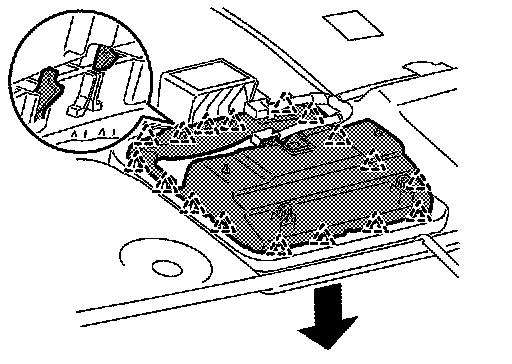

5.Disengage map lamp assembly fixing pawls, and then remove map lamp assembly.


INSTALLATION

Install in the reverse order of removal.
