Removal And Installation

LICENSE PLATE LAMP

Removal and Installation


CAUTION:
Disconnect the 12V battery negative terminal or remove the fuse to electric leakage. Refer to "Precaution for Removing 12V Battery" Precaution For Removing 12V Battery.

REMOVAL

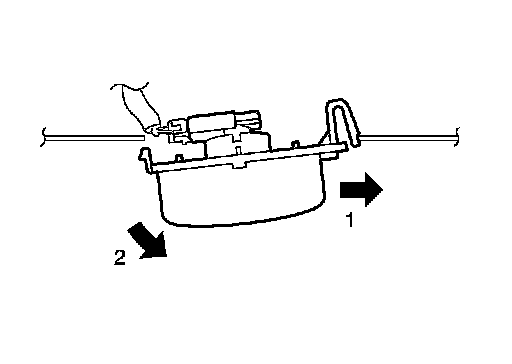

1.Remove license plate lamp in numerical order shown in the figure.
2.Disconnect license plate lamp connector, and then remove license plate lamp.

INSTALLATION

Install in the reverse order of removal.
