LED HEADLAMP

Diagnosis Procedure


1. CHECK HEADLAMP (LO) GROUND OPEN CIRCUIT

1.Turn power switch OFF.
2.Disconnect front combination lamp connector.
3.Check continuity between front combination lamp harness connector and ground.

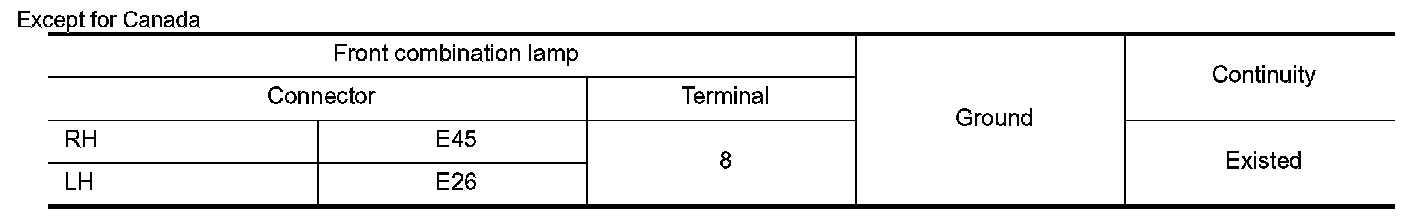

Except for Canada





For Canada





Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace harness.

2. CHECK LED HEAD LAMP CONTROL MODULE

Install the normal LED headlamp control module to the applicable headlamp. Check that the lighting switch is turned ON. Refer to "Diagnosis Procedure" Led Headlamp Operation Inspection.
Is the headlamp turned ON?
YES- Replace LED headlamp control module.
NO- GO TO 3.

3. CHECK HEADLAMP

Install the normal headlamp to the applicable headlamp. Check that the headlamp is turned ON. Refer to EXL49, "Diagnosis Procedure".
Is the headlamp turned ON?
YES- Replace headlamp.
NO- LED headlamp is normal. Check headlamp control system.
