Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LAMP

Replacement


CAUTION:
- Disconnect the 12V battery negative terminal or remove the fuse to electric leakage. Refer to "Precaution for Removing 12V Battery" Precaution For Removing 12V Battery.
- Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it to prevent damage to the bulb.
- Never touch bulb by hand while it is lit or right after being turned off to prevent a burns.
- Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.Remove front under cover. Refer to "FRONT UNDER COVER : Removal and Installation" Front Under Cover.

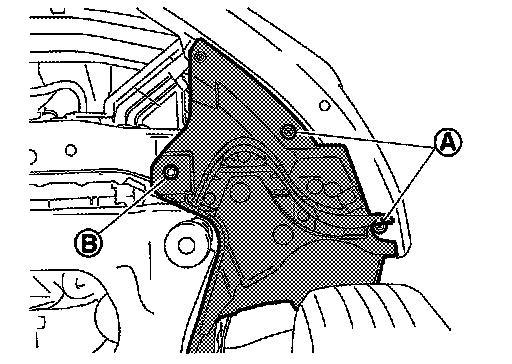

2.Remove front fender protector mounting bolts (A) and clip (B).
3.Remove front fog lamp bulb connector.
4.Rotate bulb counterclockwise and unlock it.
