Replacement

GLOVE BOX LAMP

Replacement


CAUTION:
- Disconnect the 12V battery negative terminal or remove power circuit fuse while performing the operation to prevent electric leakage. Refer to "Precaution for Removing 12V Battery" Precaution For Removing 12V Battery.
- Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
- Never touch the glass surface of the bulb with bare hands because the surface is very hot just after the lamp is turned OFF to prevent a burns.
- Leaving the bulb removed from housing for a long period of time can deteriorate performance of the lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when replacing the bulb.

GLOVE BOX LAMP BULB

1.Remove glove box assembly. Refer to "Removal and Installation" Removal And Installation.

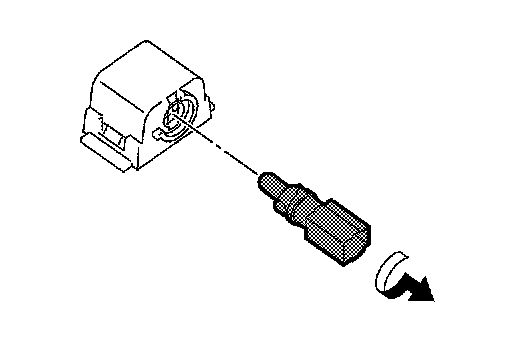

2.Rotate the bulb & socket assembly counterclockwise and unlock it and then remove bulb & socket assembly.
