Combination Meter




COMBINATION METER

Fail-Safe


FAIL-SAFE

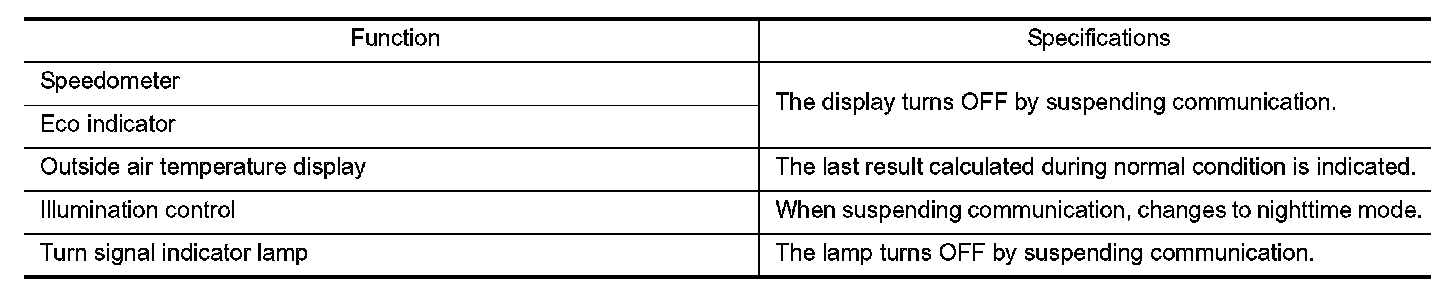

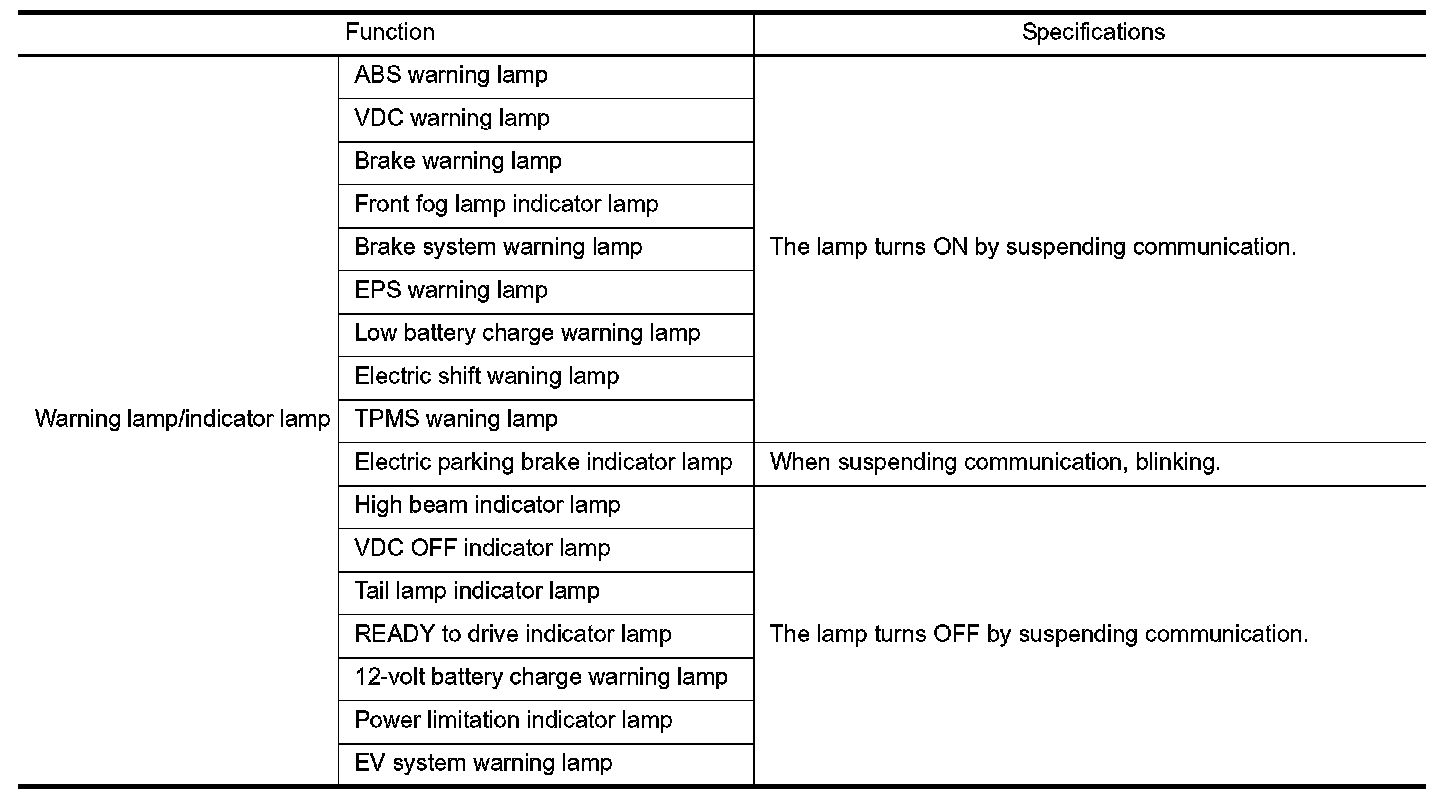

- The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.










- The upper meter performs the fail-safe control when a breakdown of communications between the upper meter and the combination meter occurs.
