Meter Control Switch Signal Circuit

METER CONTROL SWITCH SIGNAL CIRCUIT

Diagnosis Procedure


1. CHECK COMBINATION METER INPUT SIGNAL

1.Power switch ON.

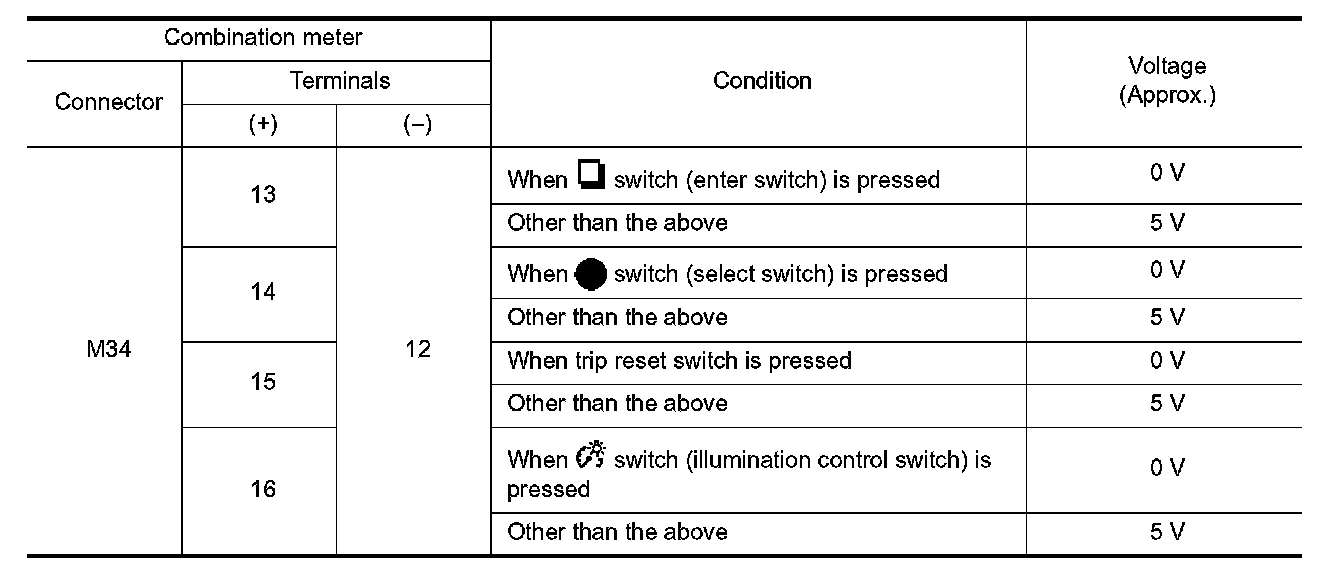

2.Measure voltage between the following terminals of the combination meter.





Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 2.

2. CHECK METER CONTROL SWITCH SIGNAL CIRCUIT

1.Power switch OFF.
2.Disconnect combination meter connector and meter control switch connector.

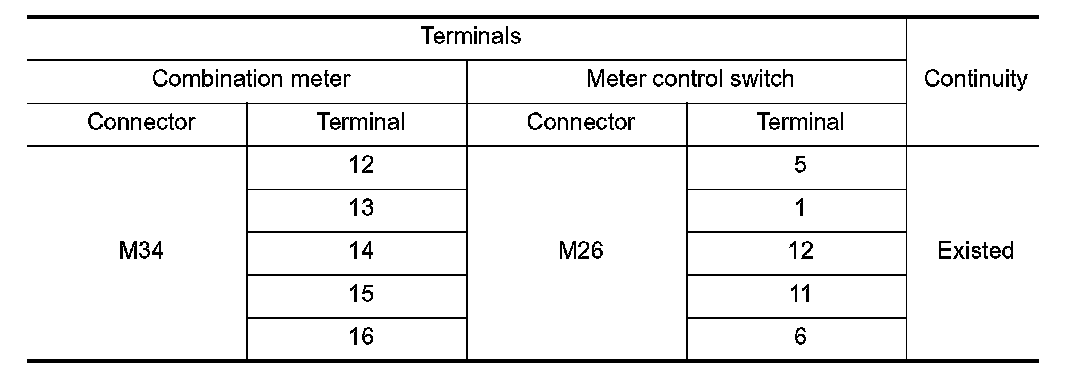

3.Check continuity between combination meter harness connector and meter control switch harness connector.





4.Check continuity between combination meter harness connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.


Component Inspection


1. CHECK METER CONTROL SWITCH

1.Power switch OFF.
2.Disconnect meter control switch connector.
3.Check meter control switch.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace meter control switch. Refer to "Removal and Installation" Removal And Installation.
