Pinout Values and Diagnostic Parameters

A/C AUTO AMP.

Reference Value


CONSULT DATA MONITOR REFERENCE VALUES











*: "DUTY" is displayed, but voltage is indicated. Or unit is not displayed but unit is (V).

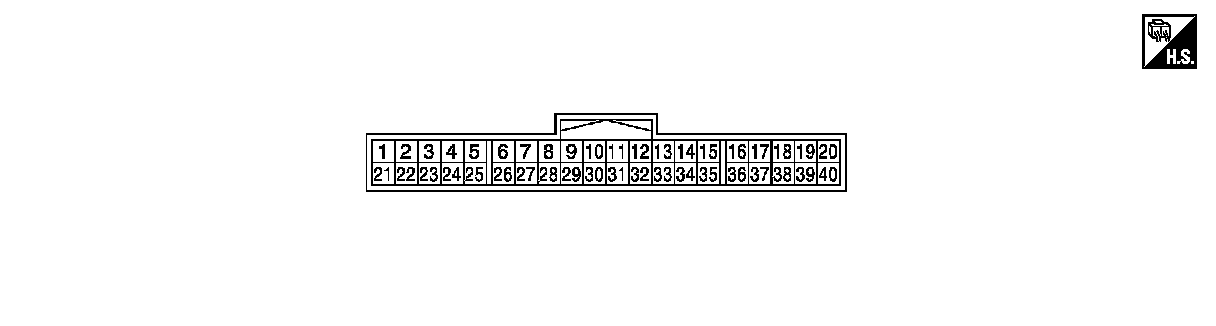

TERMINAL LAYOUT

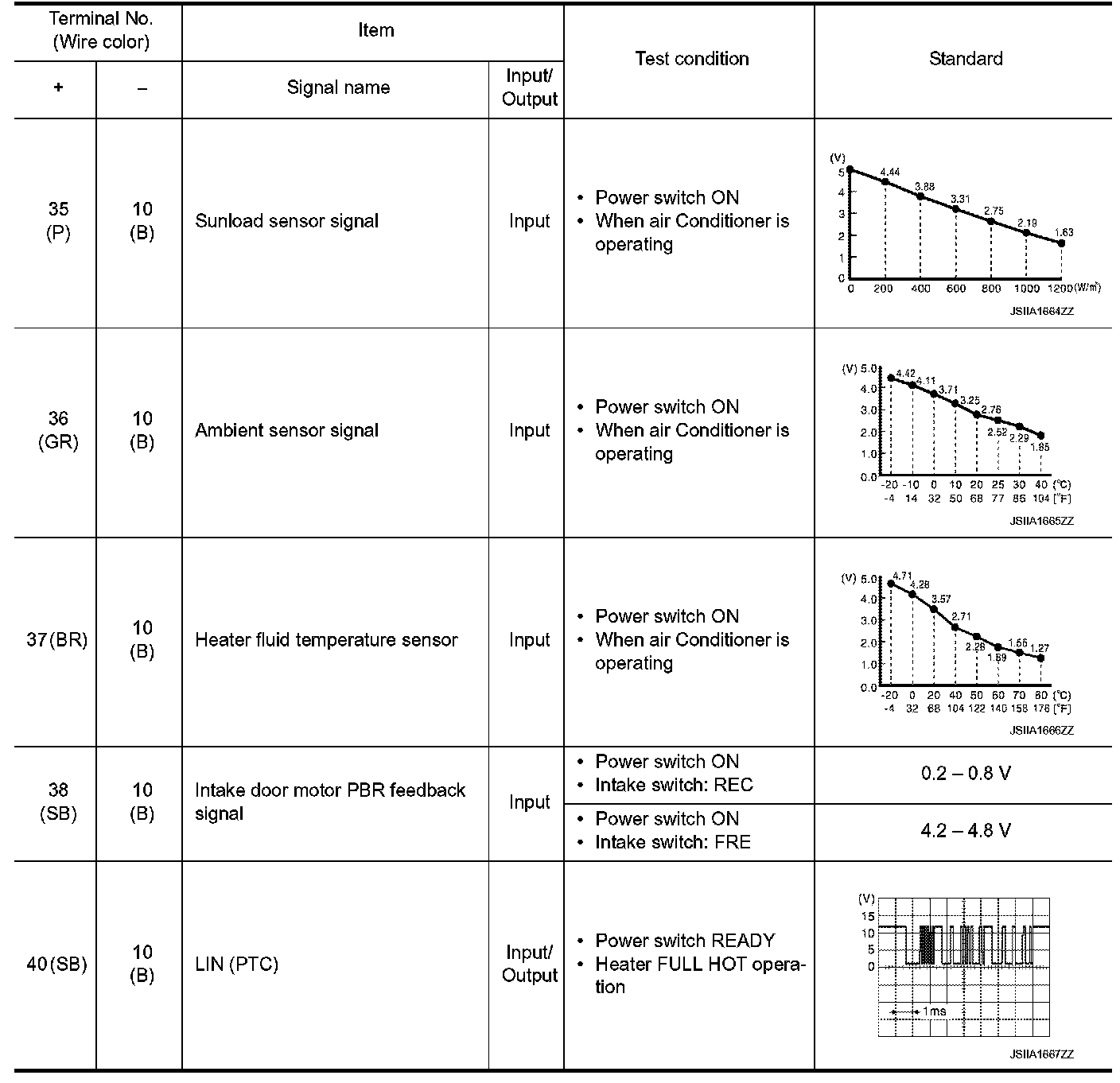

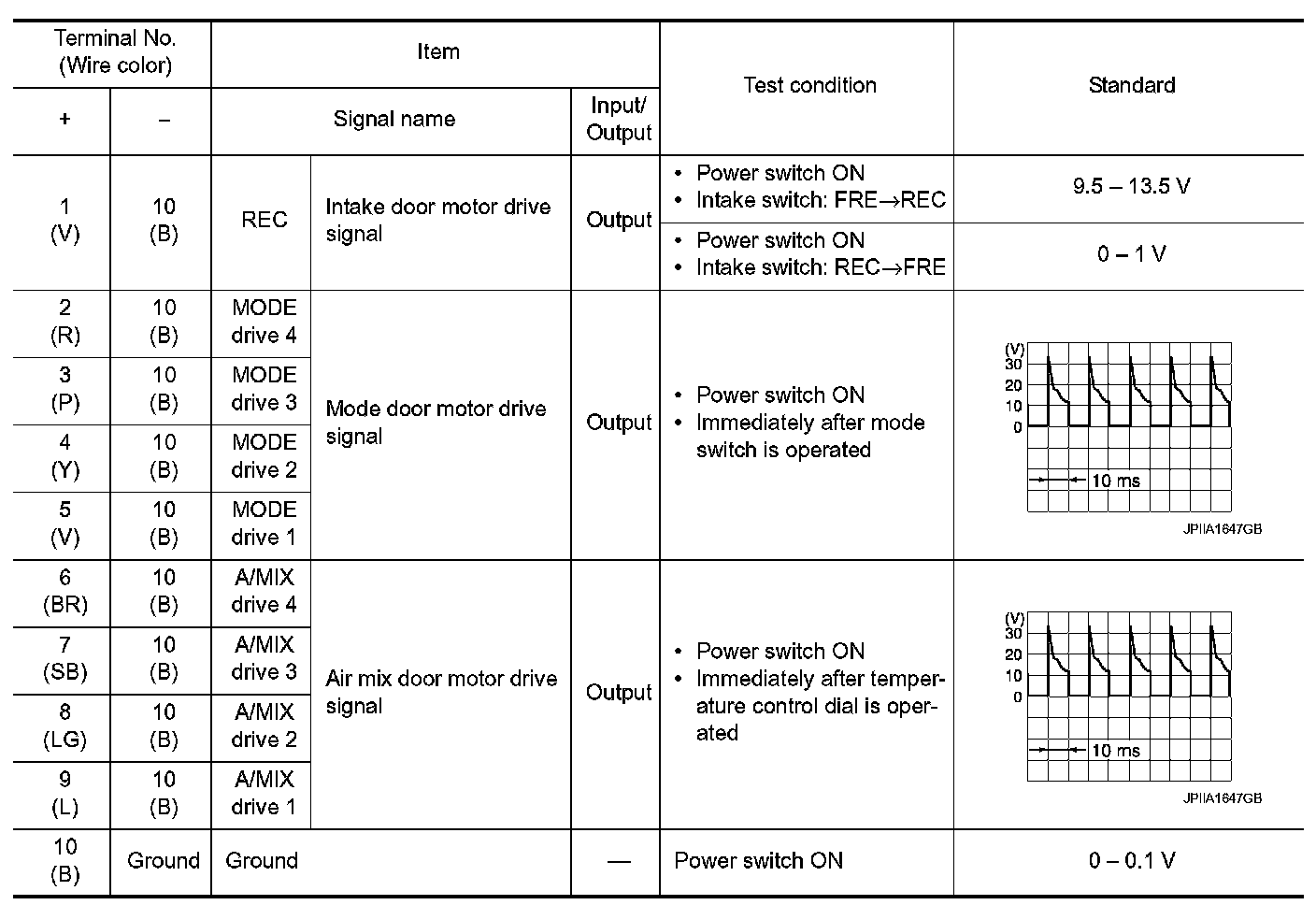

INPUT/OUTPUT SIGNAL STANDARD
