Fail Safe
Fail Safe
A/C AUTO AMP.
Fail-safe

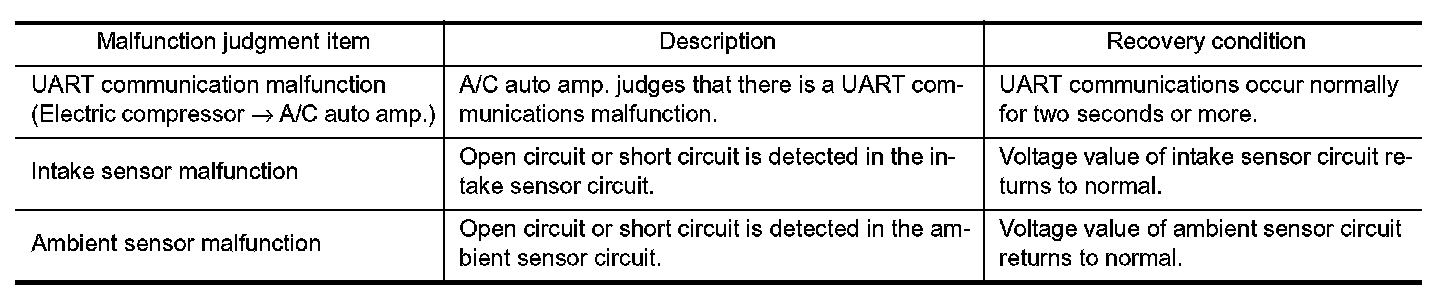

- When the A/C auto amp. detects the conditions shown below, it stops operation of the electric compressor.
- When the electric compressor detects the following conditions, compressor operation is restricted.
