Automatic Air Conditioning




SYSTEM

AUTOMATIC AIR CONDITIONING SYSTEM : Fail-safe

- When the A/C auto amp. detects the conditions shown below, it stops operation of the electric compressor.

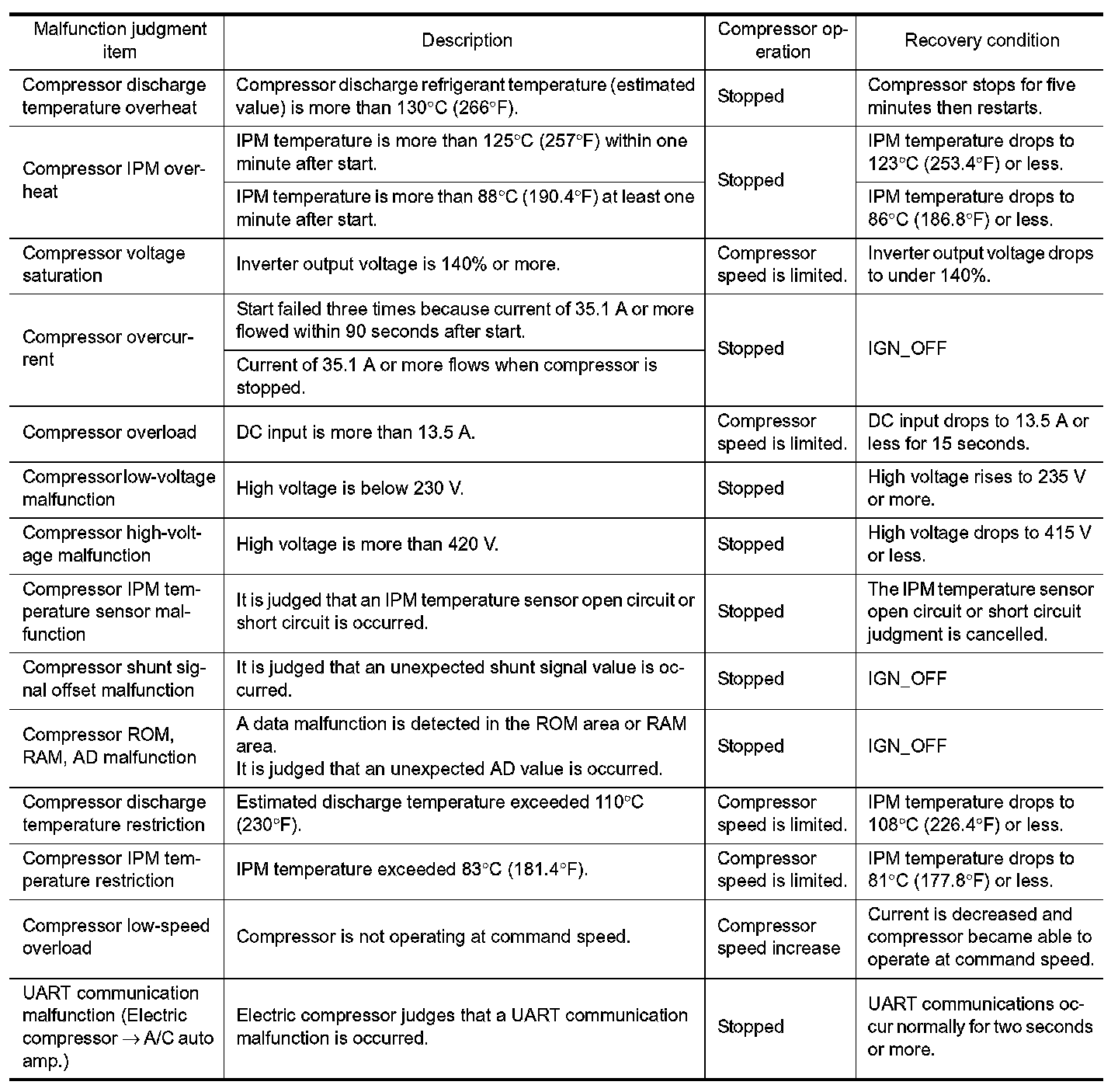

- When the electric compressor detects the following conditions, compressor operation is restricted.
