Specification




DESCRIPTION

Specification

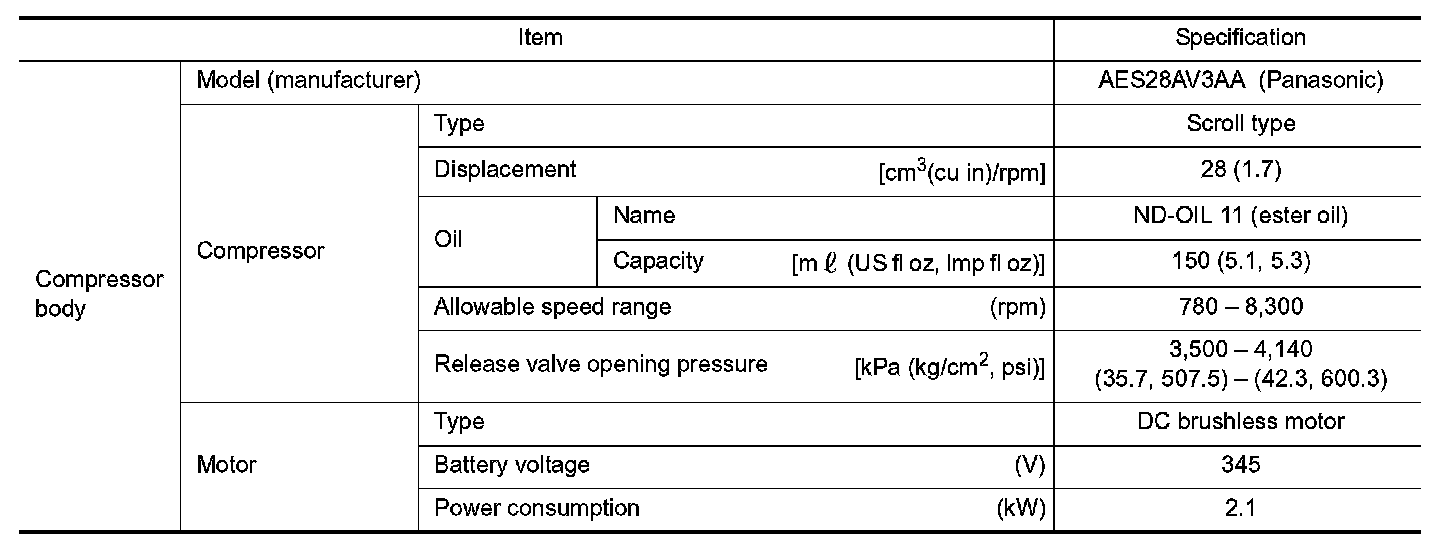

COMPRESSOR

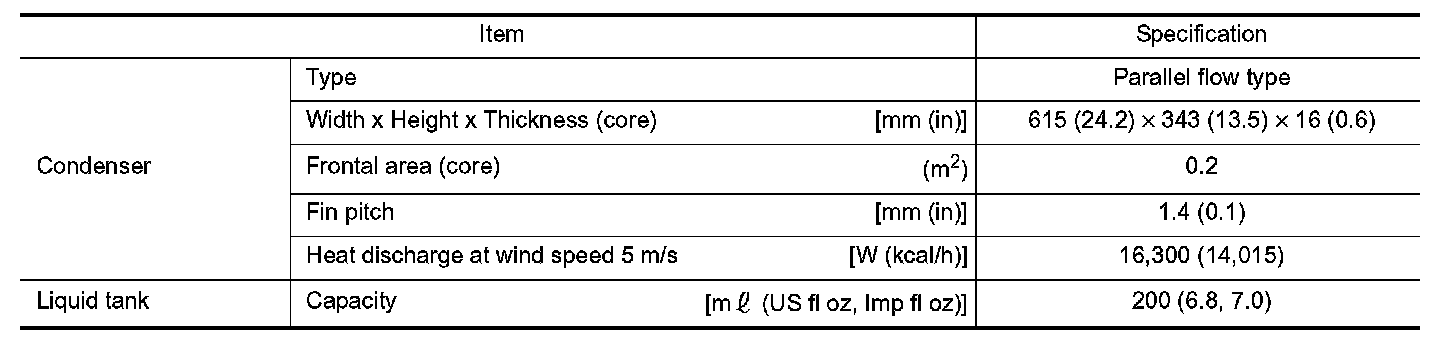

CONDENSER & LIQUID TANK







REFRIGERANT PRESSURE SENSOR







REFRIGERANT







A/C UNIT

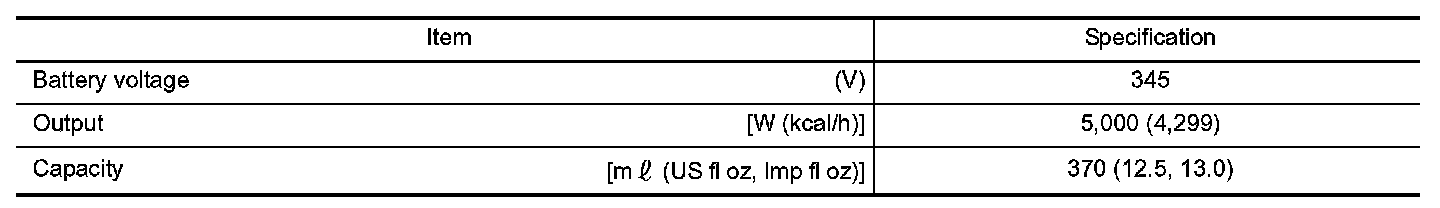

PTC ELEMENT HEATER

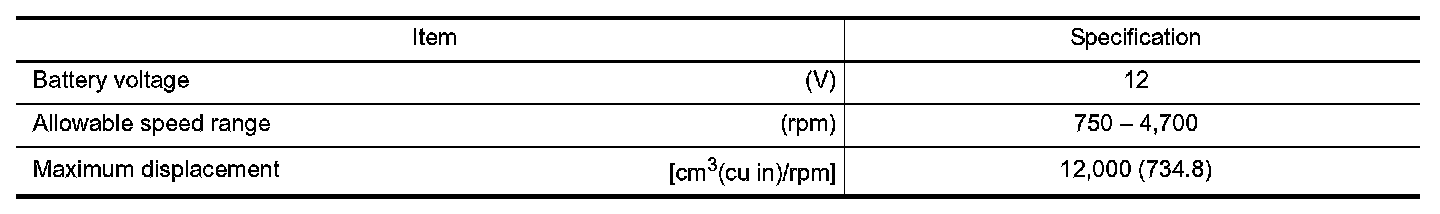

HEATER PUMP
