Heater Fluid Temperature Sensor
Heater Fluid Temperature Sensor
COMPONENT PARTS
Heater Fluid Temperature Sensor

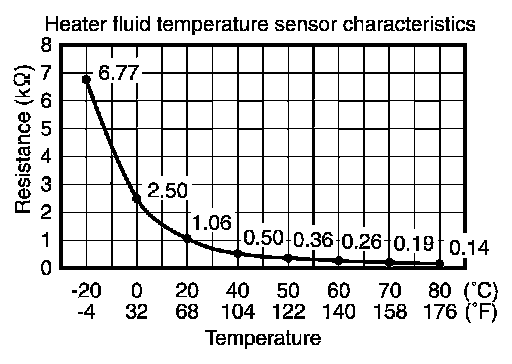

The heater fluid temperatureThe sensor measures the heater fluid temperature. This sensor uses thermistor that decreases electrical resistance as temperature increases.
