Ventilation System

SYSTEM

VENTILATION SYSTEM : System Description


DESCRIPTION

Ventilation system is controlled by A/C auto amp.. For details of air conditioning system. Refer to "AUTOMATIC AIR CONDITIONING SYSTEM : System Description" System Descriptiol.

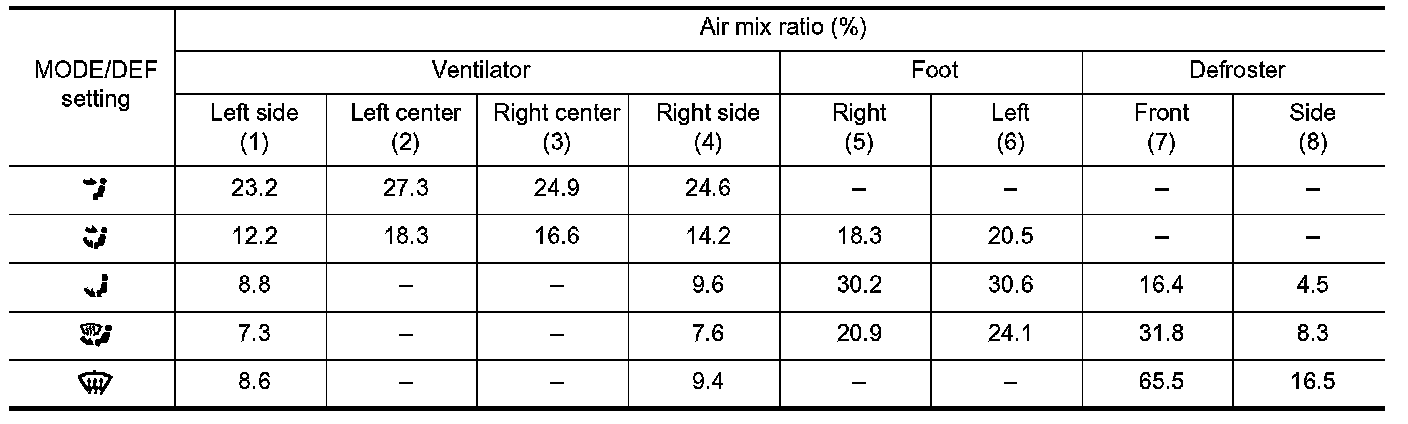

OUTLETS AND AIR MIX RATIO (WITHOUT REAR FOOT DUCT)

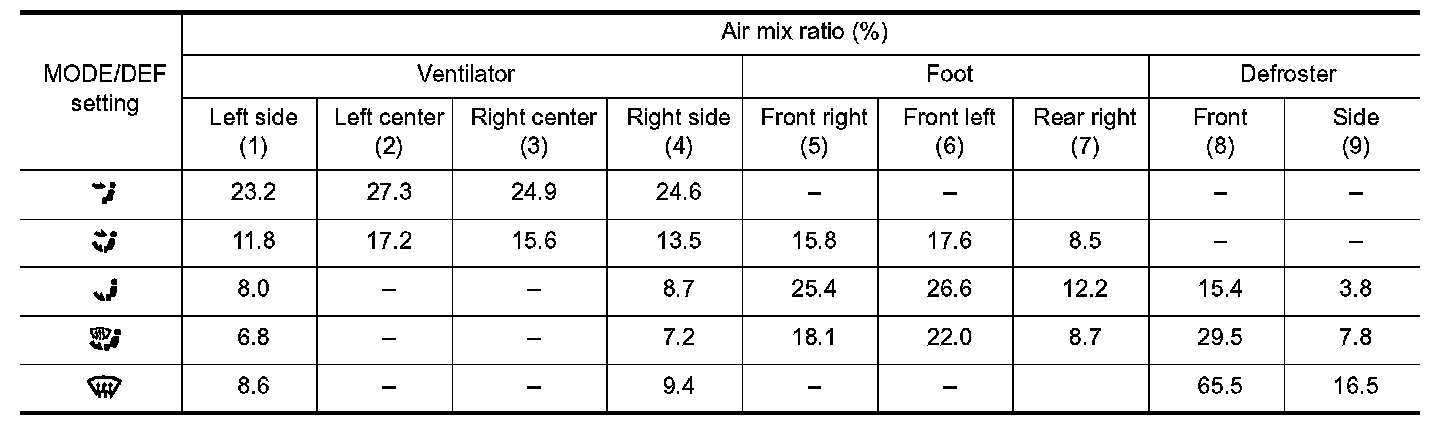

OUTLETS AND AIR MIX RATIO (WITH REAR FOOT DUCT)

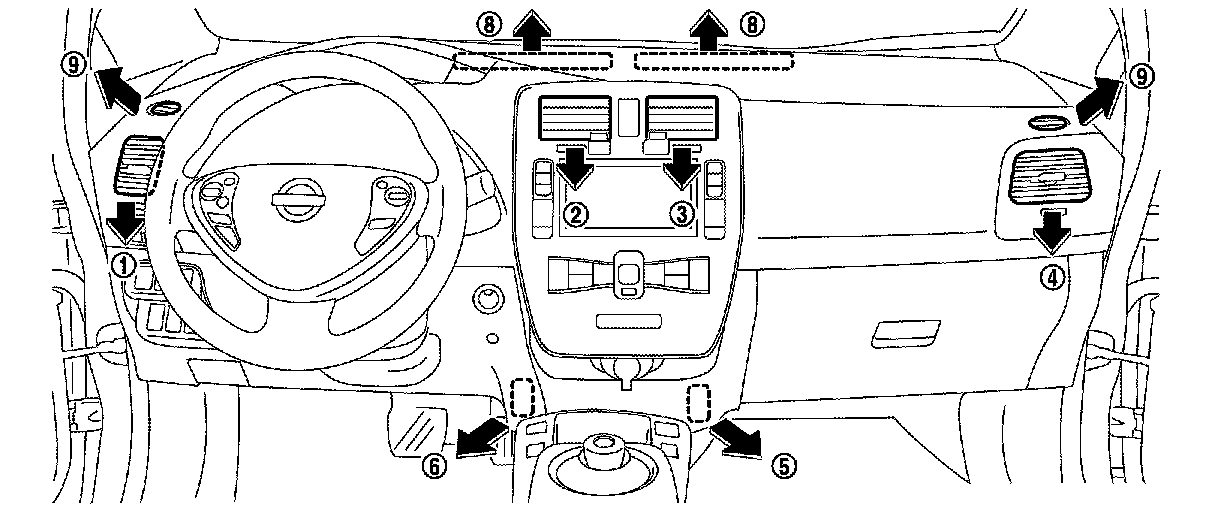

Front





Rear

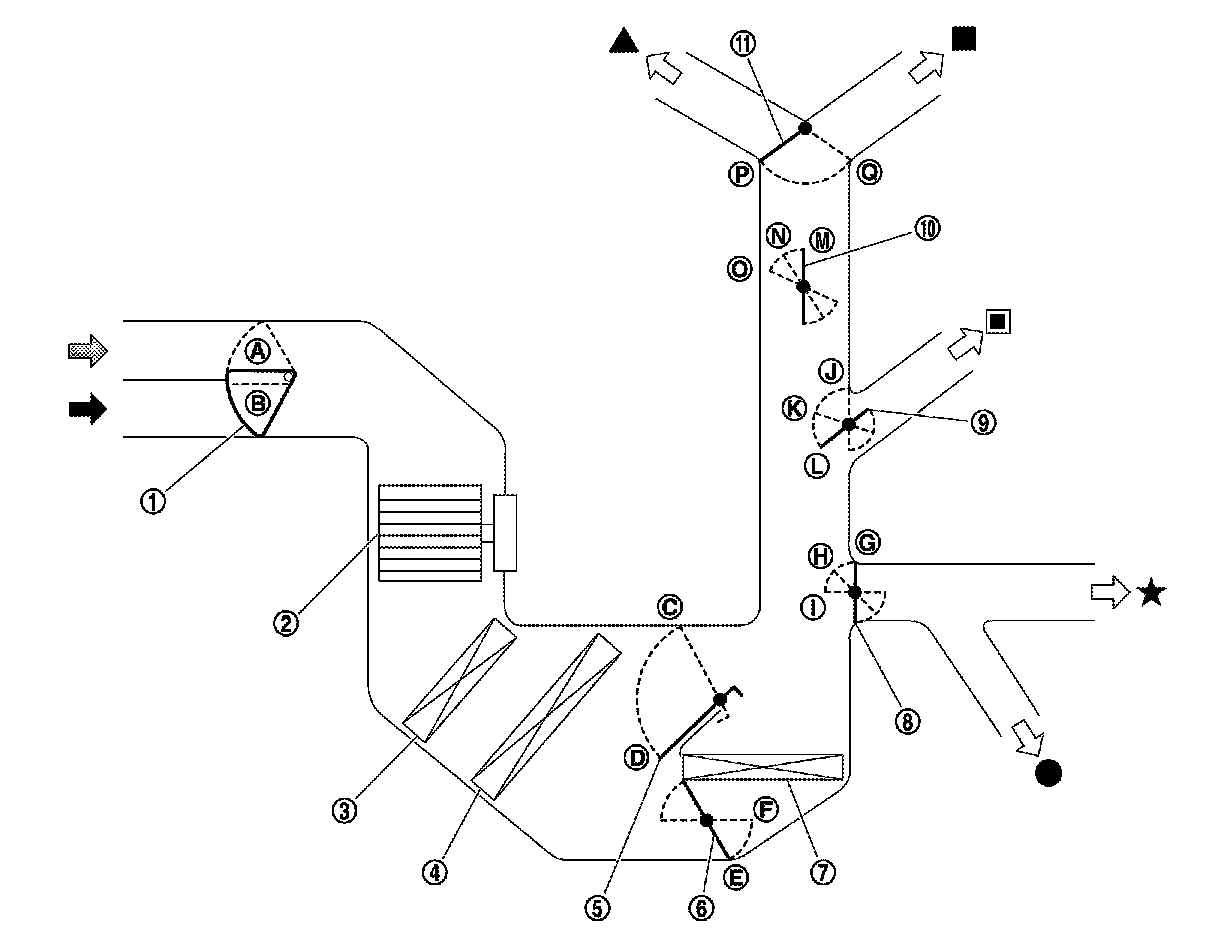

RELATIONSHIP OF SWITCH POSITIONS AND DOOR POSITIONS
















*: Status is also displayed during automatic control.
