Electric Water Pump

COMPONENT PARTS

Electric water pump

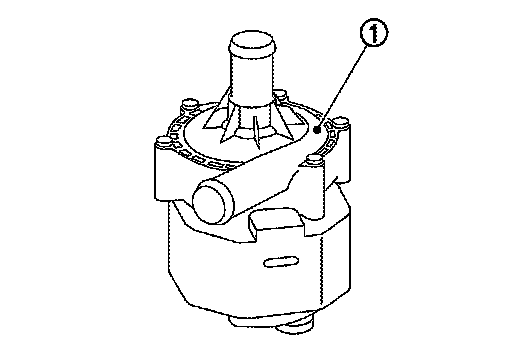

- This is an electric water pump (1).
- Electric water pumps are installed in the left front fender and under the bleeder tank located on the right side of the motor room.
- The cooling path has two electric water pumps. VCM (Vehicle Control Module) controls coolant flow, according to water temperature and vehicle speed. And when one of the two electric water pumps has a breakdown, the other electric water pump is enhanced and used to make up for the deficiency in coolant flow.
