Disassembly And Assembly

ELECTRIC SHIFT SELECTOR

Disassembly and Assembly


CAUTION:

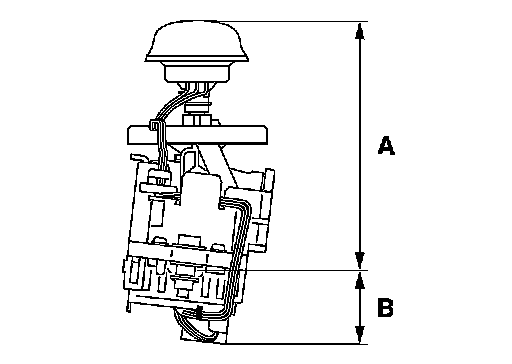

- As part B in the figure contains a strong magnet, persons with an electro-medical apparatus should keep it away from his/her body. Otherwise it may cause the electro-medical apparatus to malfunction.


- Keep it away from magnetic objects such as magnetic cards and metal products (e.g. watches).
- When holding the electric shift sensor, hold part A in the figure.
- Never disassemble parts A or B shown in the figure.
- Never subject the electric shift sensor to impact by dropping or hitting, water splash or high humidity.

DISASSEMBLY

1.Put a mark at the hook position of the P position switch harness.

CAUTION:
Memorize how the P position switch harness is routed.
2.Disconnect the P position switch connector.





3.Pull the lock pin out of the selector lever using long-nose pliers.
NOTE:
Tilting of the selector lever knob in the N position direction allows easier work.
4.Remove P position switch harness from hook.
5.Pull the selector lever knob upward out of the vehicle.
6.Remove the shift gate from body bracket.

CAUTION:
Be careful not to damage the joint (pawl).
7.Remove the slider plate.
8.Remove the spring.
9.Remove electric shift sensor fix bolts.
10.Remove the electric shift sensor from body bracket.

ASSEMBLY

Note the following, and install in the reverse order of removal.
- Install the lock pin to the selector knob before assembly.
- Check that lock pin is securely installed.

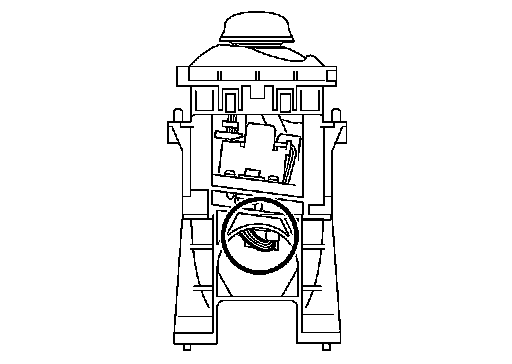

- To install slide plate, face the arrow (harness hook) shown in the figure toward the front of the vehicle.
- Hook the P position switch harness at the marked position.





- Adjust the redundant part of the P position switch harness in the position shown in the figure.
