Type 2




EV BATTERY SYSTEM

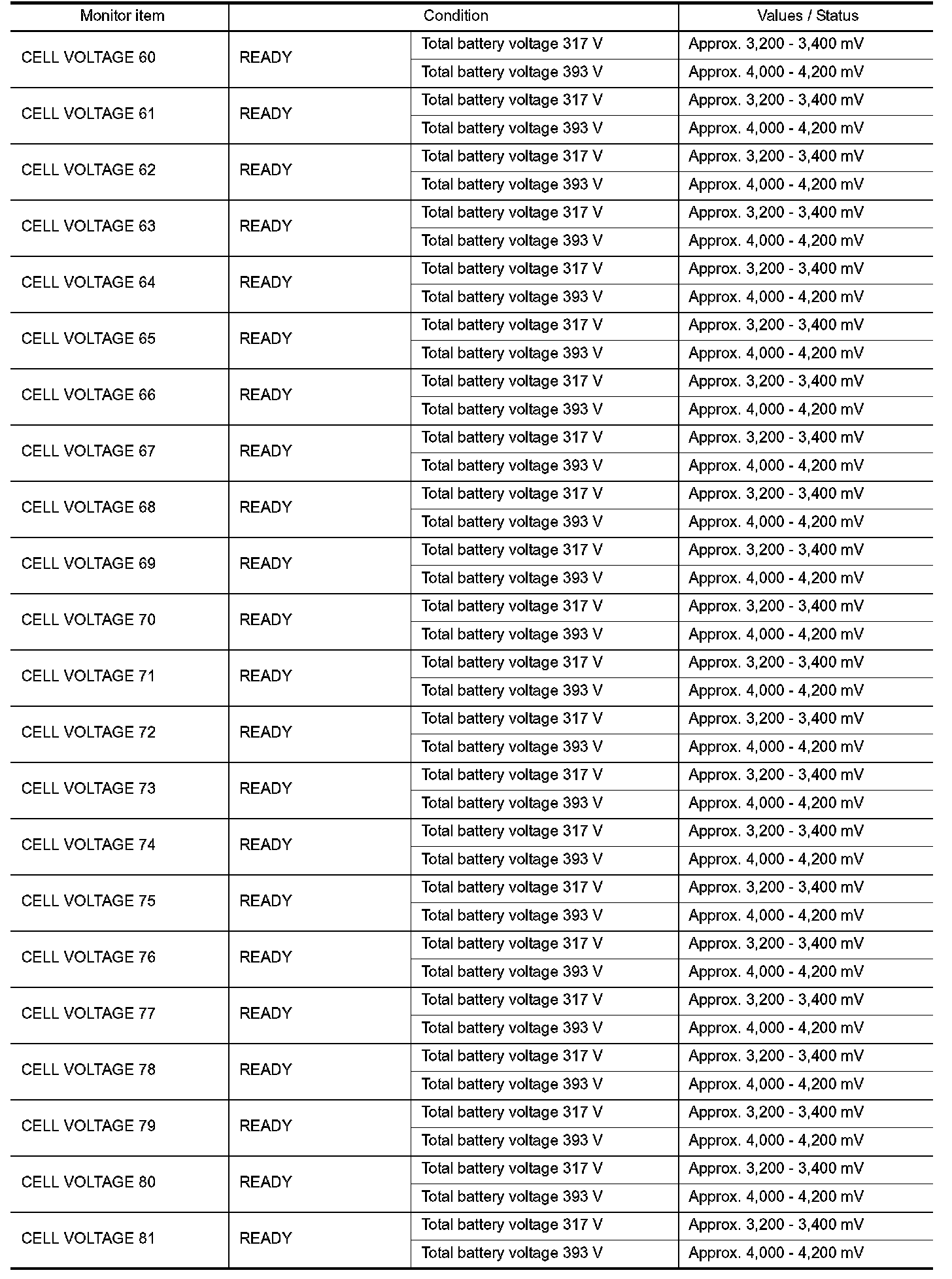

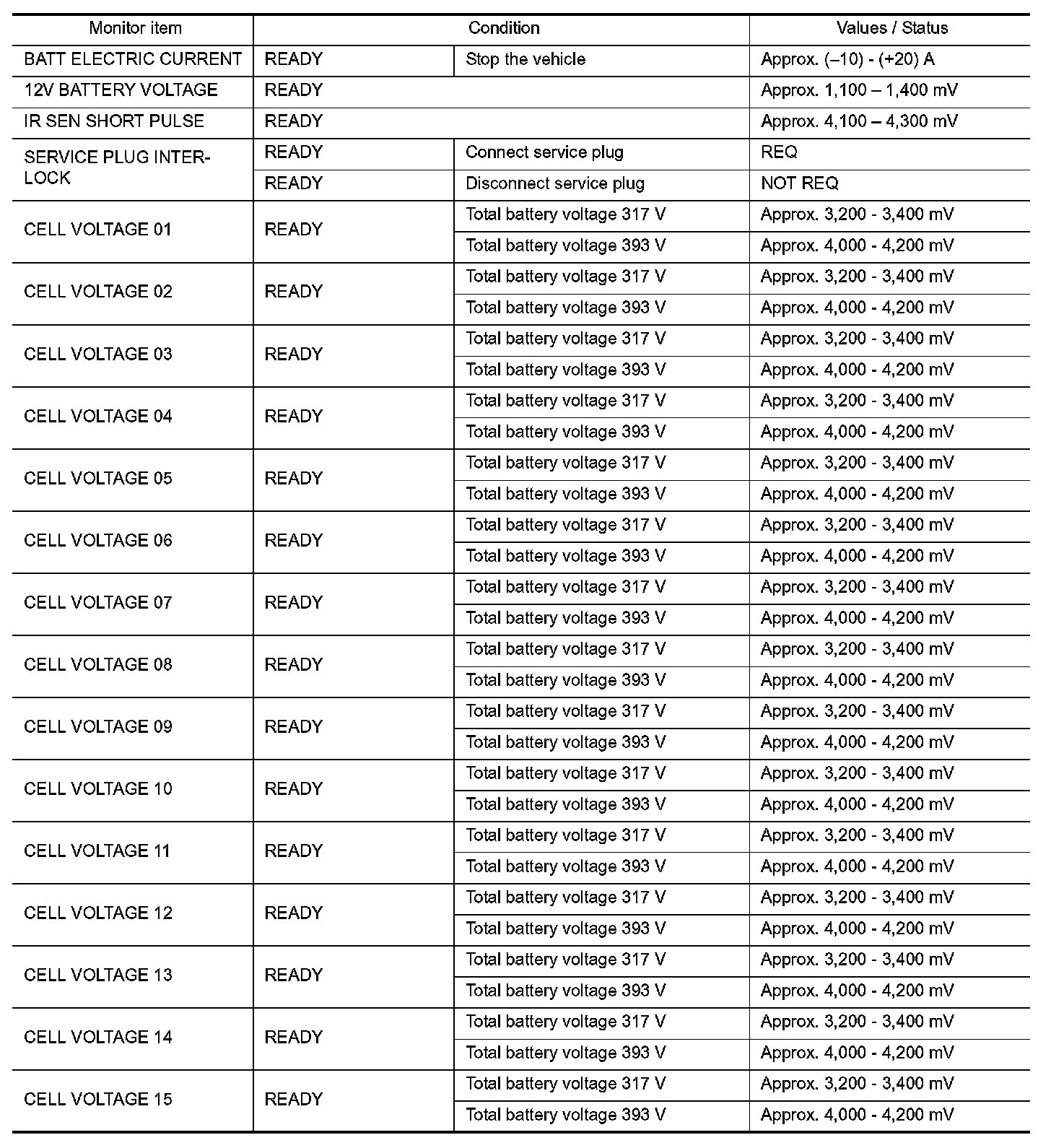

Reference Value


VALUE ON THE DIAGNOSIS TOOL

NOTE:
Specification data are reference values.
