Traction Motor Inverter




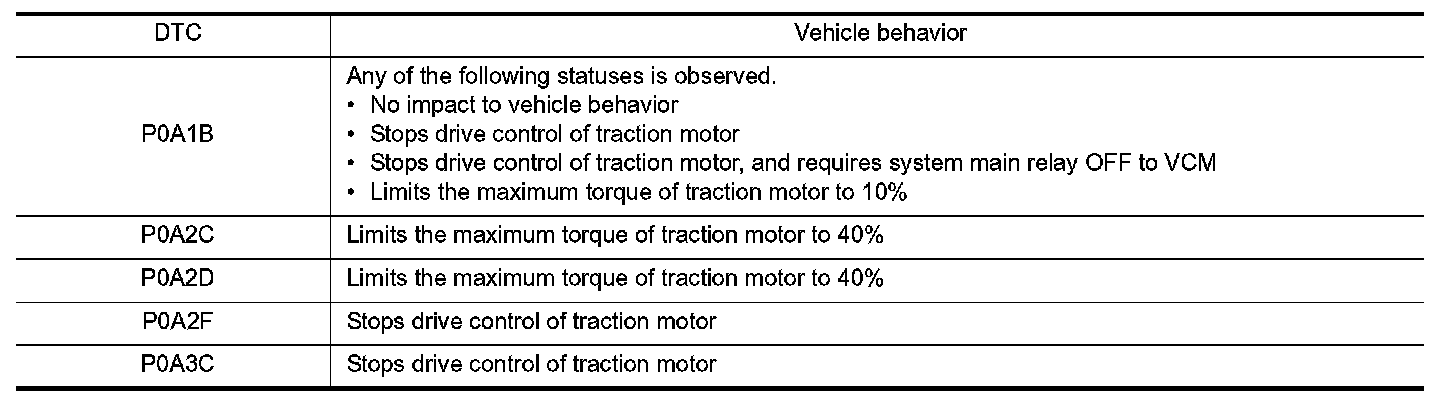

TRACTION MOTOR INVERTER

Reference Value


CONSULT DATA MONITOR STANDARD VALUE







TERMINAL LAYOUT

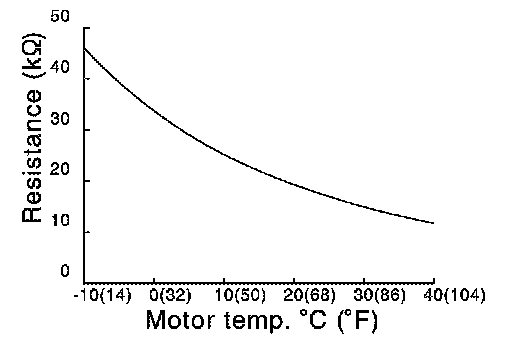

PHYSICAL VALUES


CAUTION:
- Check them with vehicle side harness connector, removing traction motor inverter connector. Never touch terminals of traction motor inverter side connector at this operation.
- If power switch is pushed ON with traction motor inverter connector removed, other control modules might detect malfunction of traction motor inverter.
