Diagnostic Work Sheet

DIAGNOSIS AND REPAIR WORK FLOW

Diagnostic Work Sheet


DESCRIPTION

There are many operating conditions that lead to the malfunction of "EV control system" components. A good grasp of such conditions can make troubleshooting faster and more accurate.





In general, each customer feels differently about symptoms. It is important to fully understand the symptoms or conditions for a customer complaint.
Utilize the diagnostic worksheet in order to organize all the information for troubleshooting.
NOTE:
Some conditions may cause a DTC to be detected.

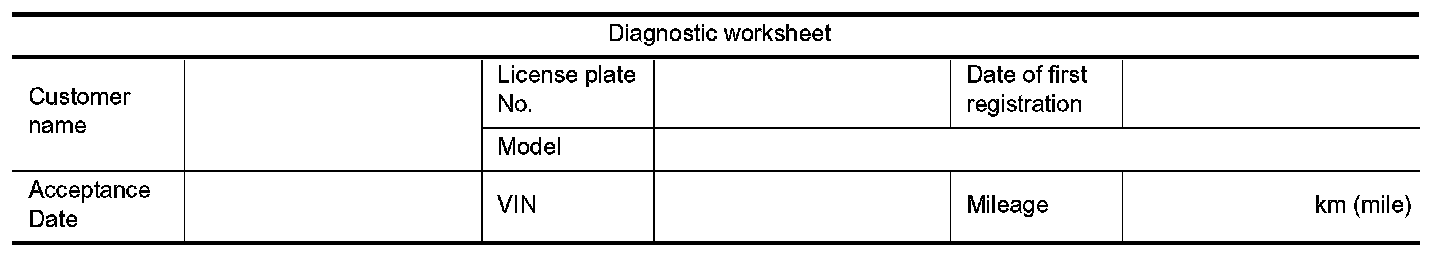

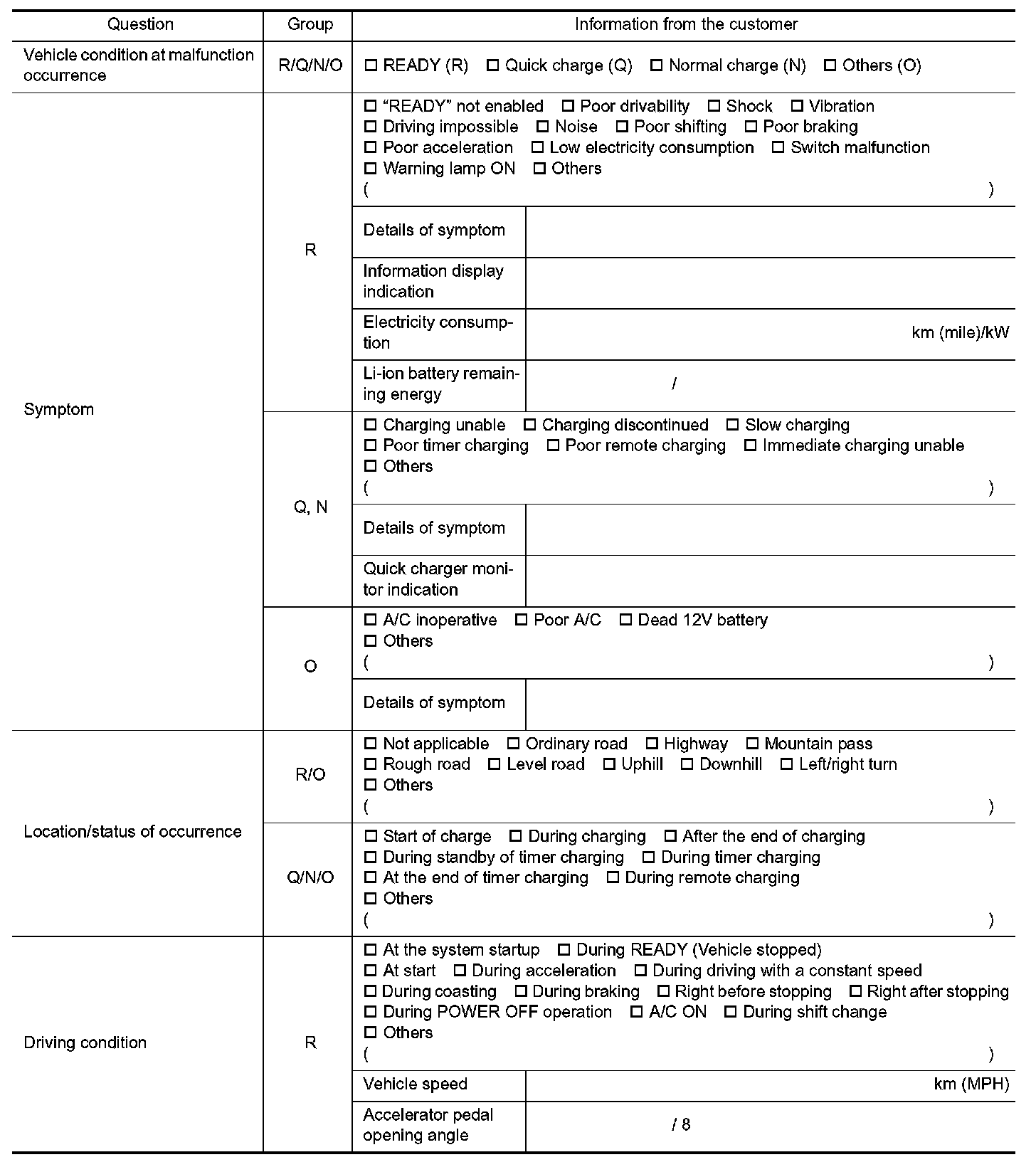

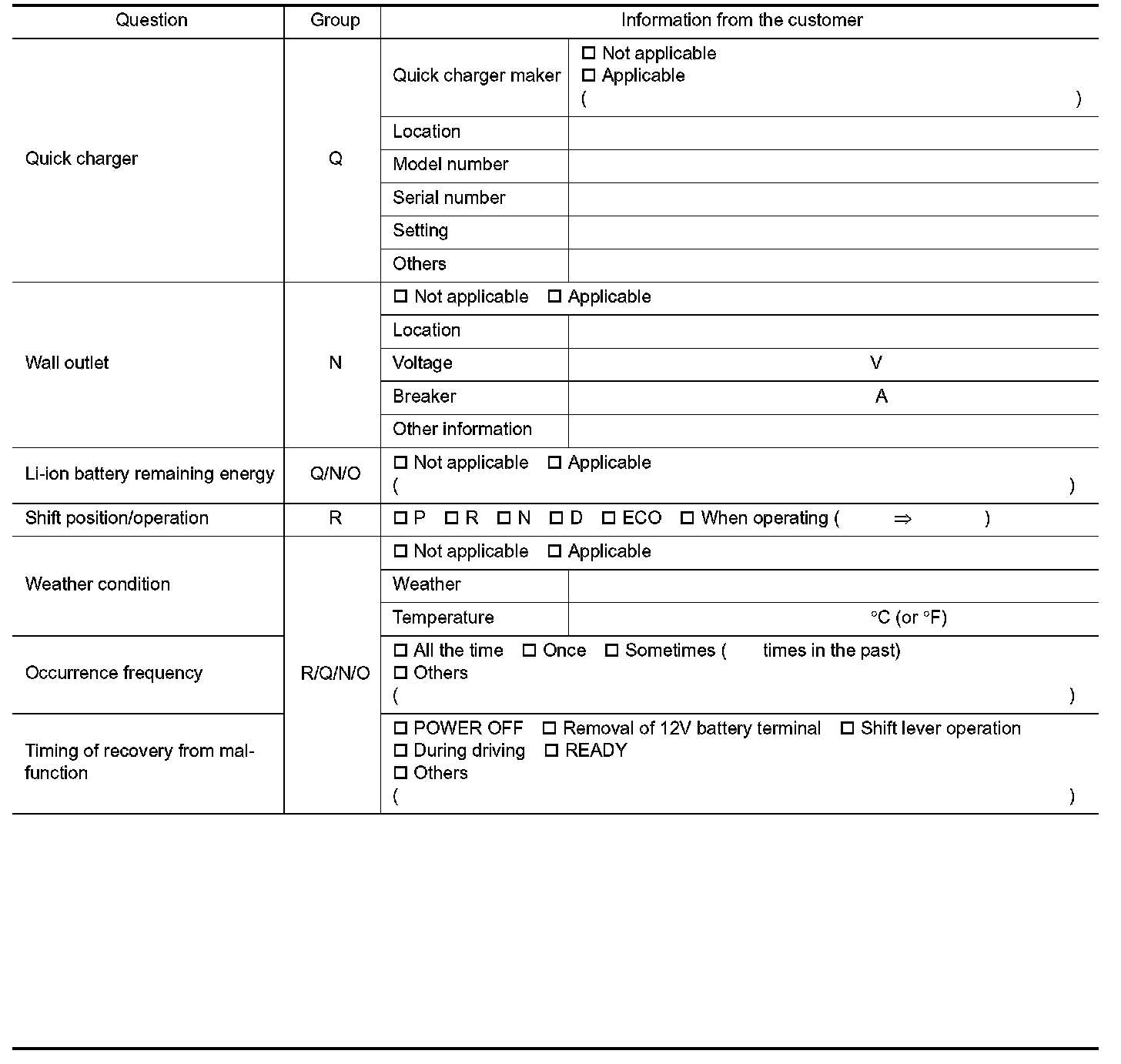

DIAGNOSTIC WORKSHEET
