Pinout Values and Diagnostic Parameters




ELECTRIC SHIFT CONTROL MODULE

Reference Value

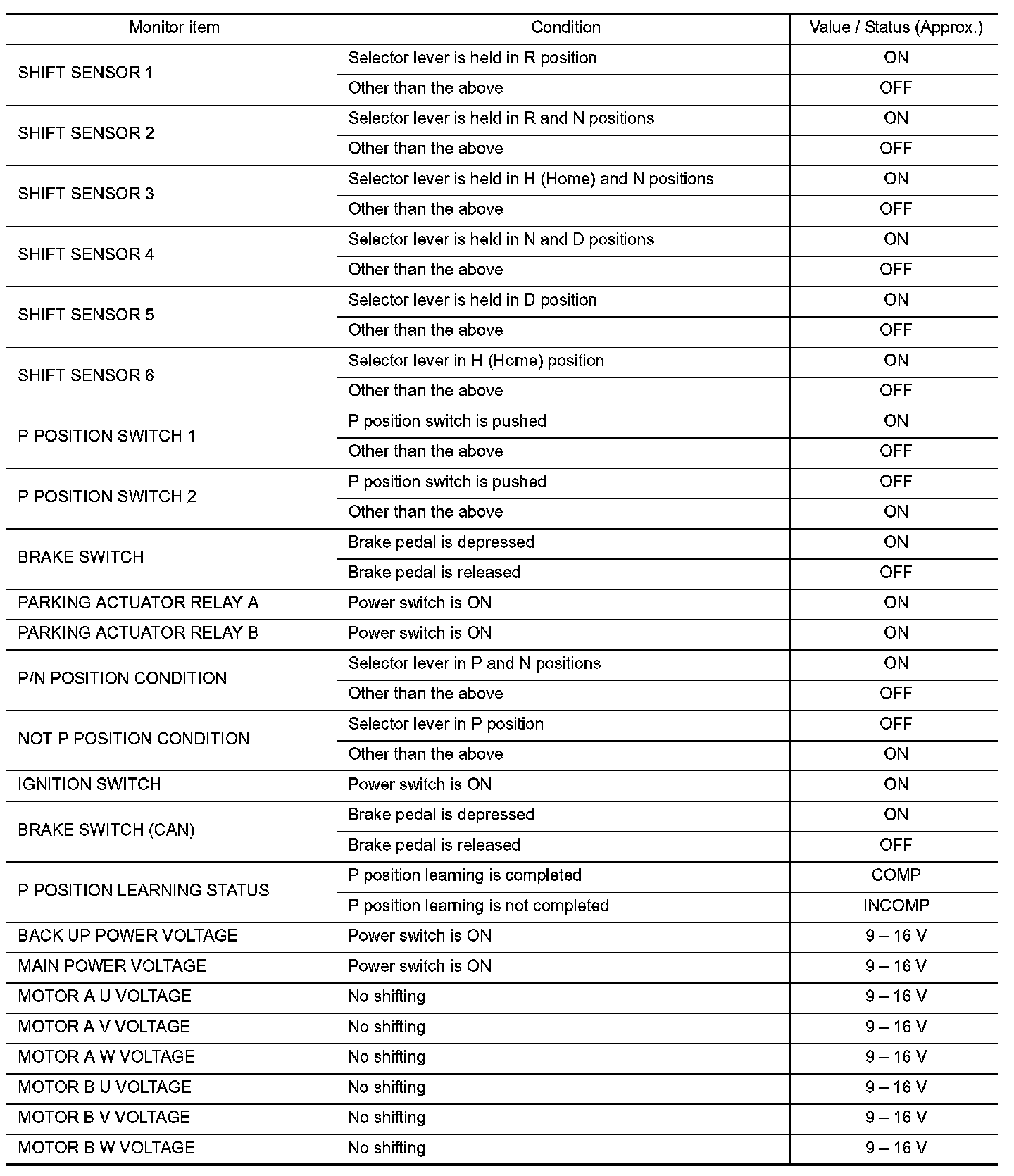

CONSULT DATA MONITOR STANDARD VALUE












TERMINAL LAYOUT

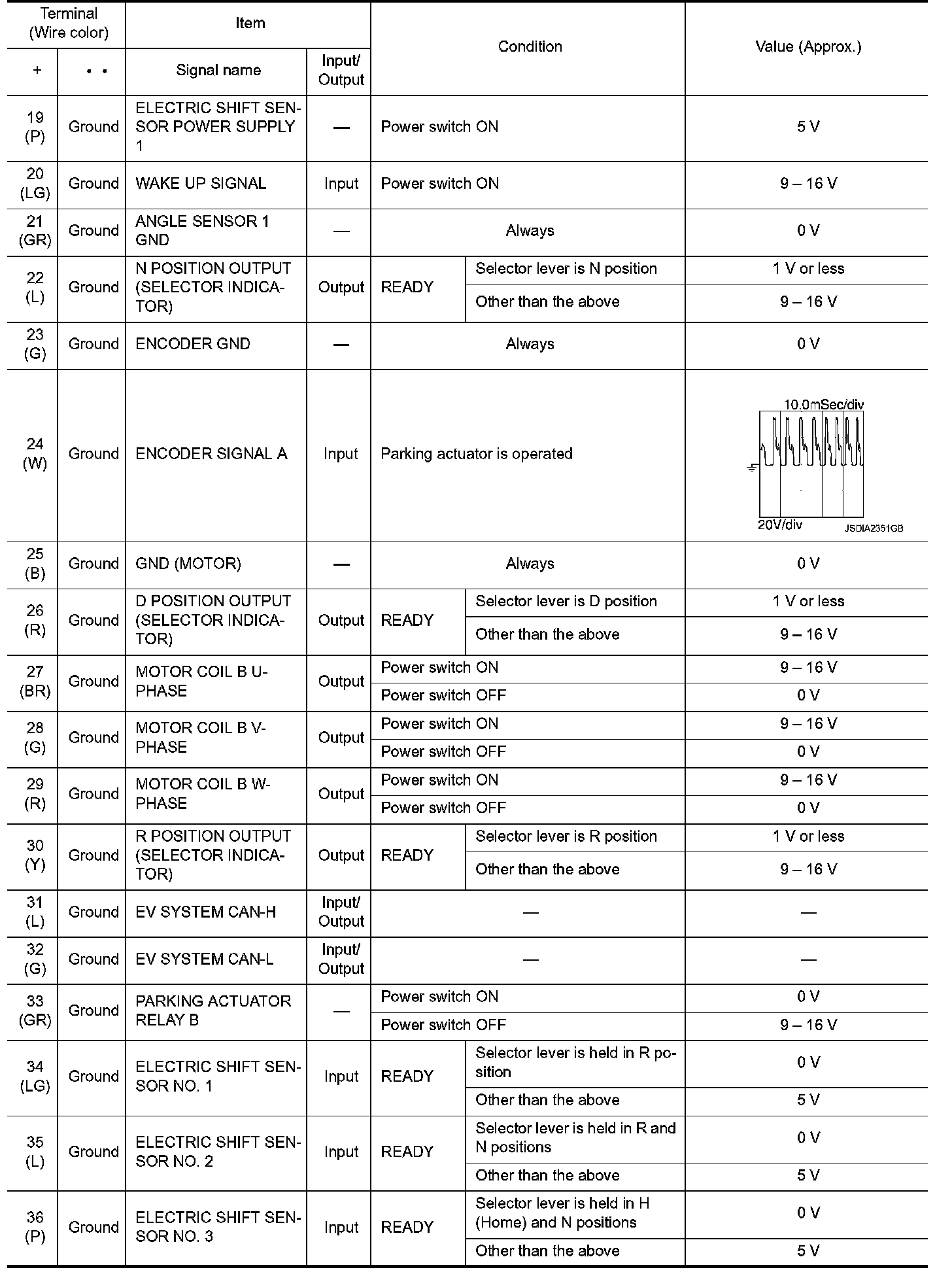

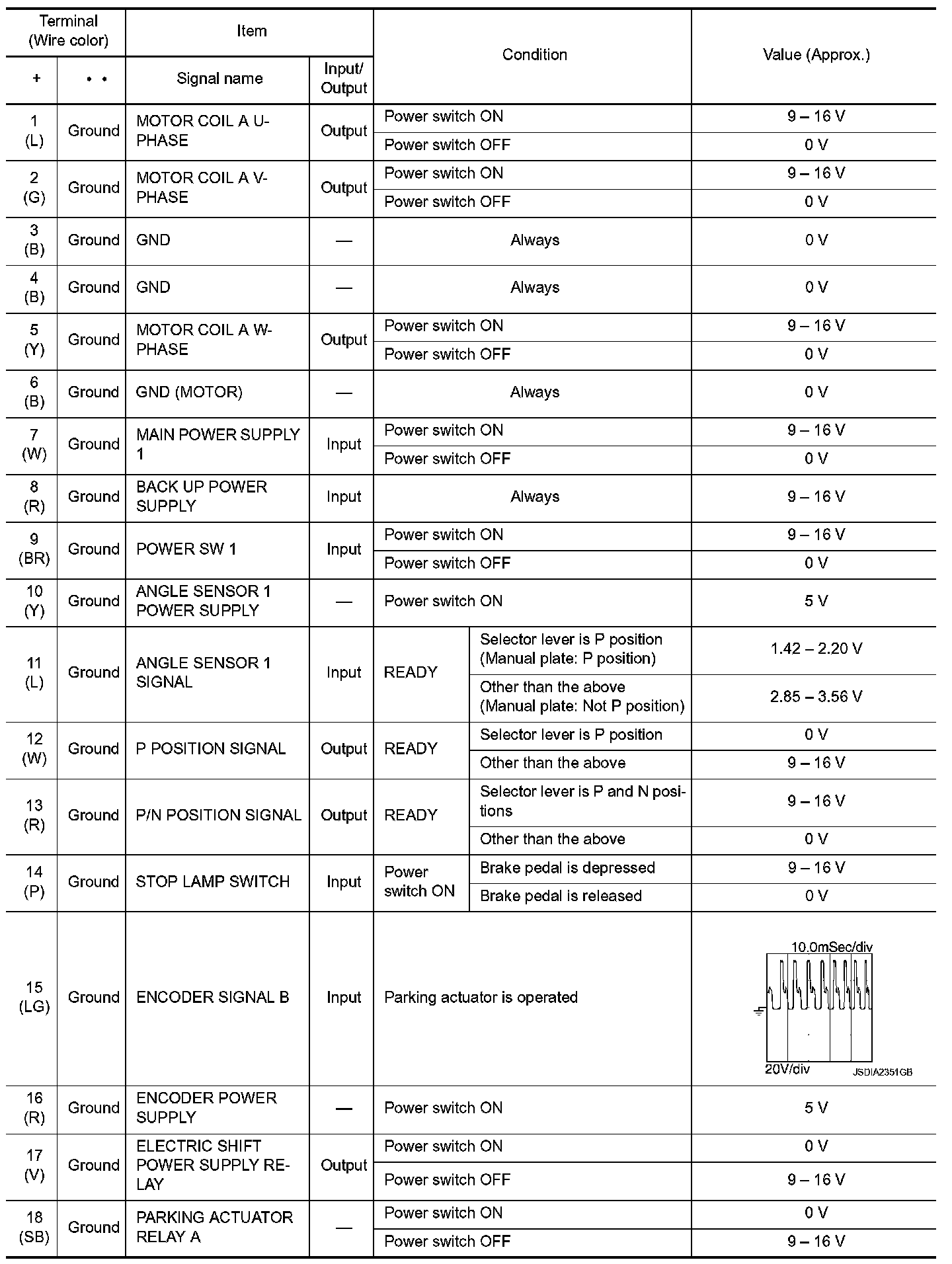

PHYSICAL VALUES
